SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

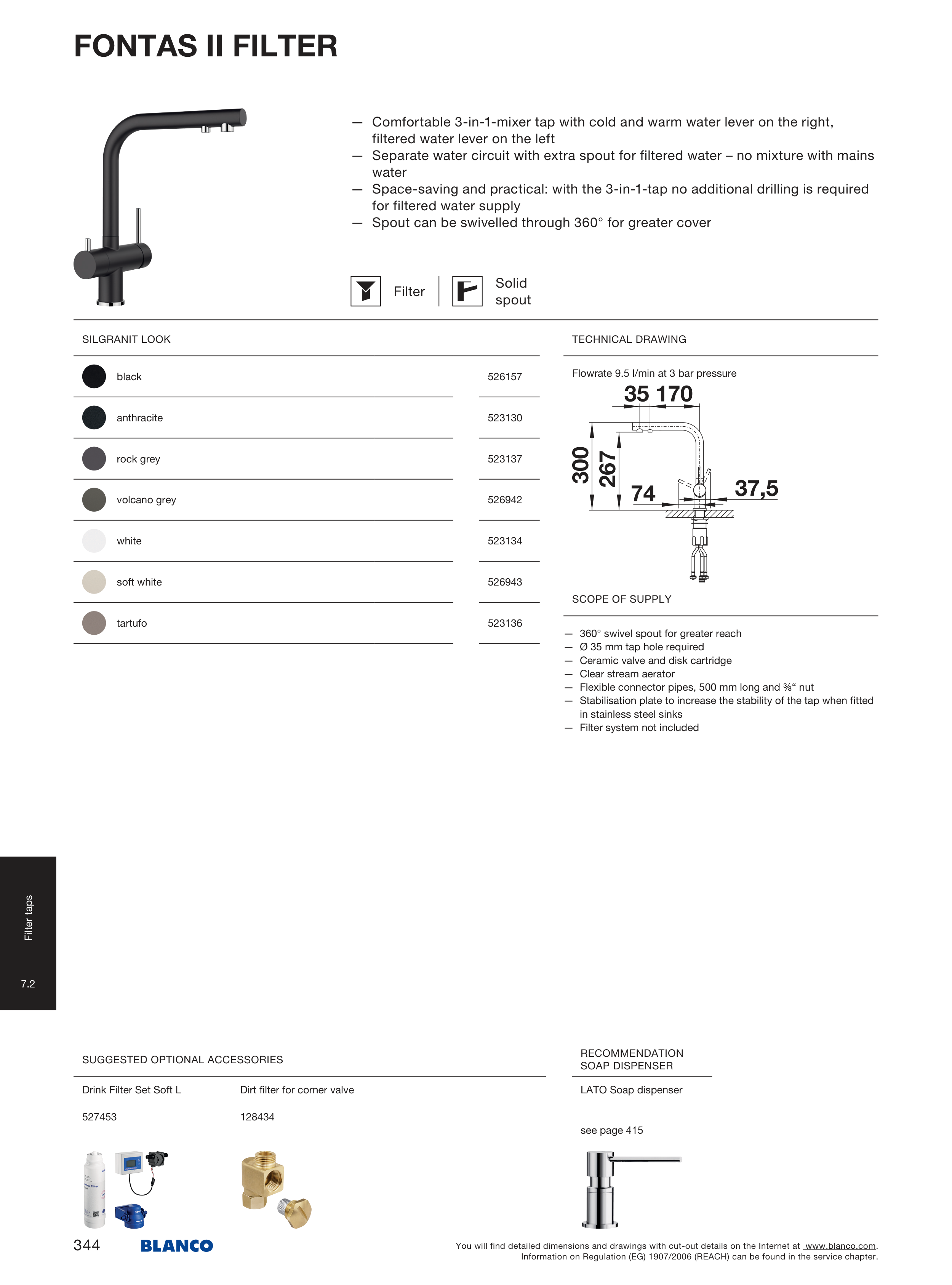

FONTAS II FILTER
— Comfortable 3-in-1-mixer tap with cold and warm water lever on the right,
filtered water lever on the left
— Separate water circuit with extra spout for filtered water – no mixture with mains
water
— Space-saving and practical: with the 3-in-1-tap no additional drilling is required
for filtered water supply
— Spout can be swivelled through 360° for greater cover
Filter
Solid
spout
— 360° swivel spout for greater reach
— Ø 35 mm tap hole required
— Ceramic valve and disk cartridge
— Clear stream aerator
— Flexible connector pipes, 500 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
— Filter system not included
SILGRANIT LOOK
black
526 157
anthracite
523 130
rock grey
523 137
volcano grey
526 942
white
523 134
soft white
526 943
tartufo
523 136
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 9.5 l/min at 3 bar pressure
LATO Soap dispenser
see page 415
Drink Filter Set Soft L
527 453
Dirt filter for corner valve
128 434
Filter taps
7.2
344
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
