SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER
WASTE MANAGEMENT

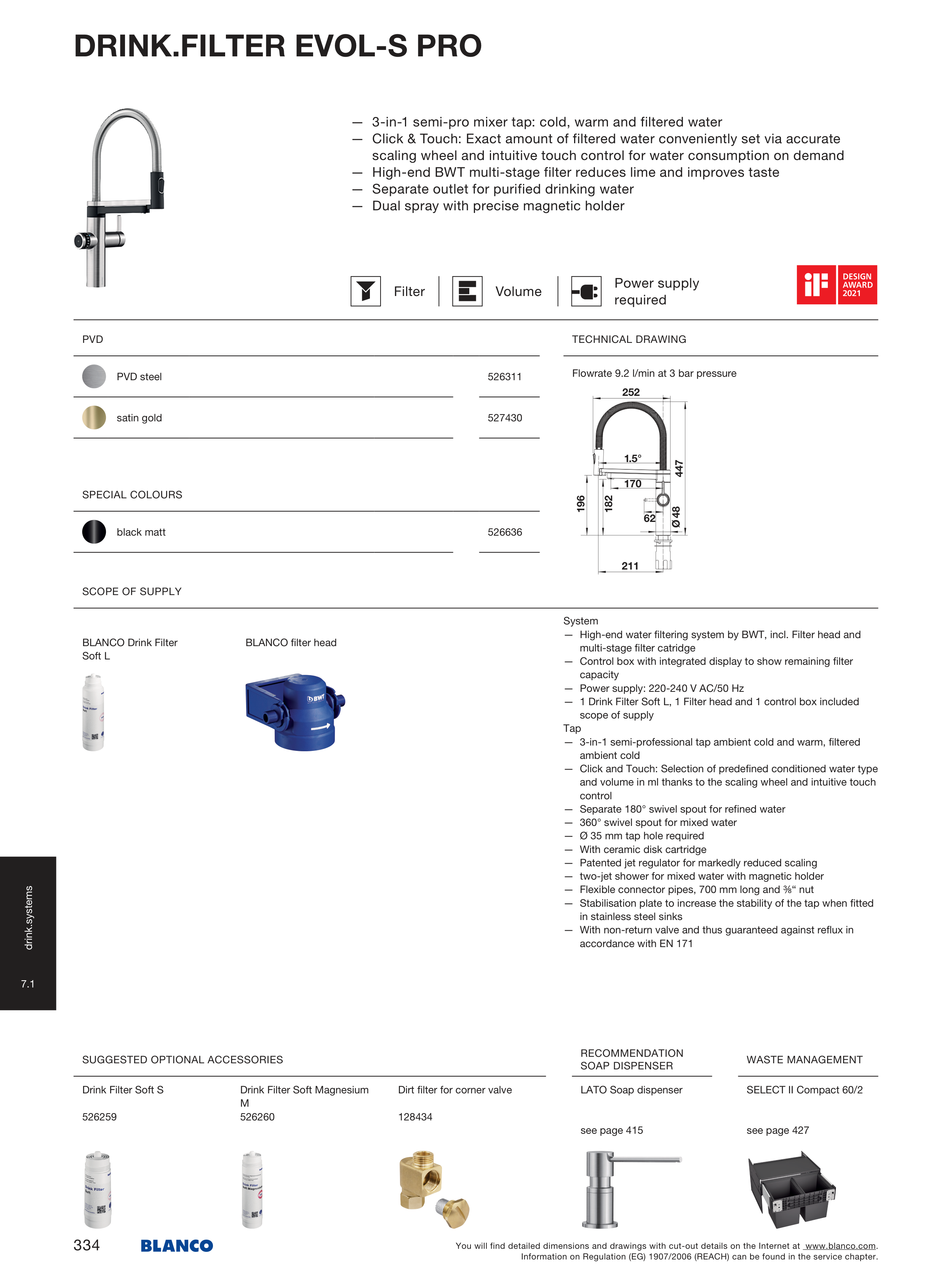

DRINK.FILTER EVOL-S PRO
— 3-in-1 semi-pro mixer tap: cold, warm and filtered water
— Click & Touch: Exact amount of filtered water conveniently set via accurate
scaling wheel and intuitive touch control for water consumption on demand
— High-end BWT multi-stage filter reduces lime and improves taste
— Separate outlet for purified drinking water
— Dual spray with precise magnetic holder
Filter
Volume
Power supply
required
System
— High-end water filtering system by BWT, incl. Filter head and
multi-stage filter catridge
— Control box with integrated display to show remaining filter
capacity
— Power supply: 220-240 V AC/50 Hz
— 1 Drink Filter Soft L, 1 Filter head and 1 control box included
scope of supply
Tap
— 3-in-1 semi-professional tap ambient cold and warm, filtered
ambient cold
— Click and Touch: Selection of predefined conditioned water type
and volume in ml thanks to the scaling wheel and intuitive touch
control
— Separate 180° swivel spout for refined water
— 360° swivel spout for mixed water
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— two-jet shower for mixed water with magnetic holder
— Flexible connector pipes, 700 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
— With non-return valve and thus guaranteed against reflux in
accordance with EN 171
PVD
PVD steel
526 311
satin gold
527 430
SPECIAL COLOURS
black matt
526 636
252
447
196
182
170
62
1.5°
Ø48
211
Flowrate 9.2 l/min at 3 bar pressure
TECHNICAL DRAWING
SCOPE OF SUPPLY
BLANCO Drink Filter
Soft L
BLANCO filter head
SELECT II Compact 60/2
see page 427
LATO Soap dispenser
see page 415
Drink Filter Soft S
526 259
Drink Filter Soft Magnesium
M
526 260
Dirt filter for corner valve
128 434
drink.systems
7.1
334
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
