SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH LEMIS 6 S-IF

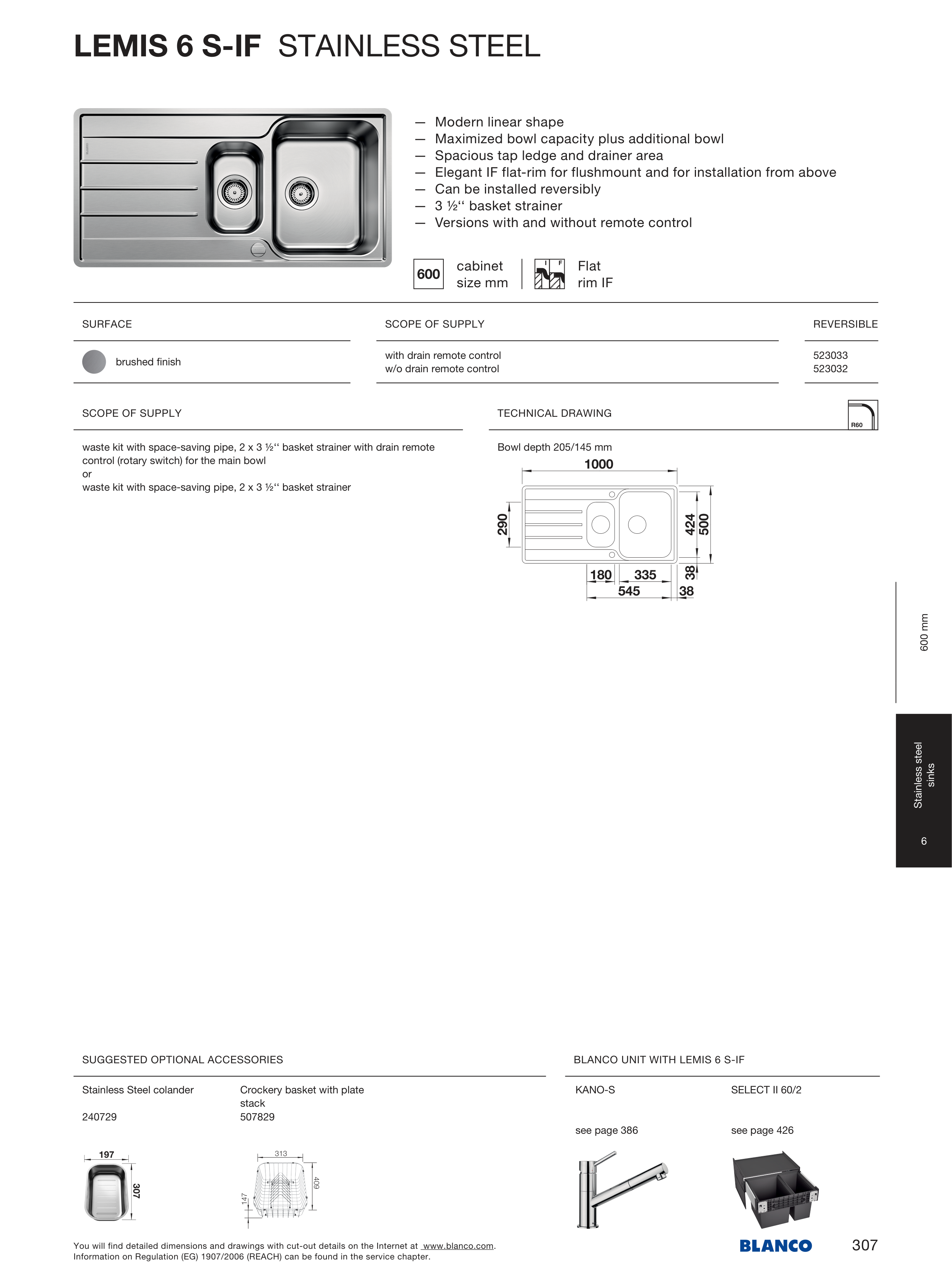

LEMIS 6 S-IF STAINLESS STEEL
— Modern linear shape
— Maximized bowl capacity plus additional bowl
— Spacious tap ledge and drainer area
— Elegant IF flat-rim for flushmount and for installation from above
— Can be installed reversibly
— 3 ½‘‘ basket strainer
— Versions with and without remote control
cabinet
size mm
Flat
rim IF
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space-saving pipe, 2 x 3 ½‘‘ basket strainer with drain remote
control (rotary switch) for the main bowl
or
waste kit with space-saving pipe, 2 x 3 ½‘‘ basket strainer
Bowl depth 205/145 mm
SURFACE
SCOPE OF SUPPLY
REVERSIBLE
brushed finish
with drain remote control
w/o drain remote control
523 033
523 032
Stainless Steel colander
240 729
307
197
Crockery basket with plate
stack
507 829
KANO-S
see page 386
SELECT II 60/2
see page 426
600 mm
Stainless steel
sinks
6
307
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
