SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH DINAS 8 S

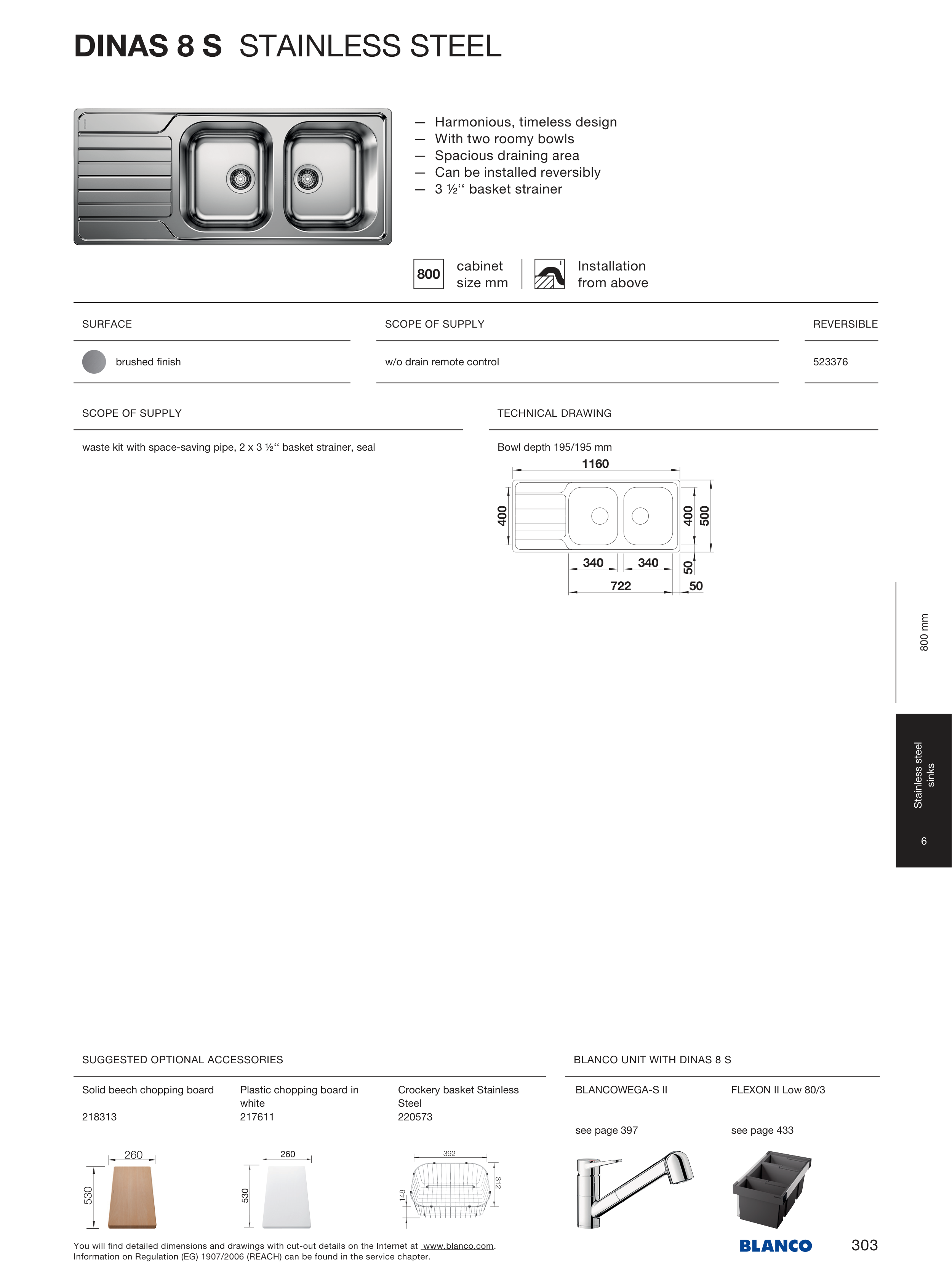

DINAS 8 S STAINLESS STEEL
— Harmonious, timeless design
— With two roomy bowls
— Spacious draining area
— Can be installed reversibly
— 3 ½‘‘ basket strainer
cabinet
size mm
Installation
from above
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space-saving pipe, 2 x 3 ½‘‘ basket strainer, seal
Bowl depth 195/195 mm
SURFACE
SCOPE OF SUPPLY
REVERSIBLE
brushed finish
w/o drain remote control
523 376
Solid beech chopping board
218 313
Plastic chopping board in
white
217 611
Crockery basket Stainless
Steel
220 573
BLANCOWEGA-S II
see page 397
FLEXON II Low 80/3
see page 433
800 mm
Stainless steel
sinks
6
303
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
