SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH LANTOS 8 S-IF COMPACT

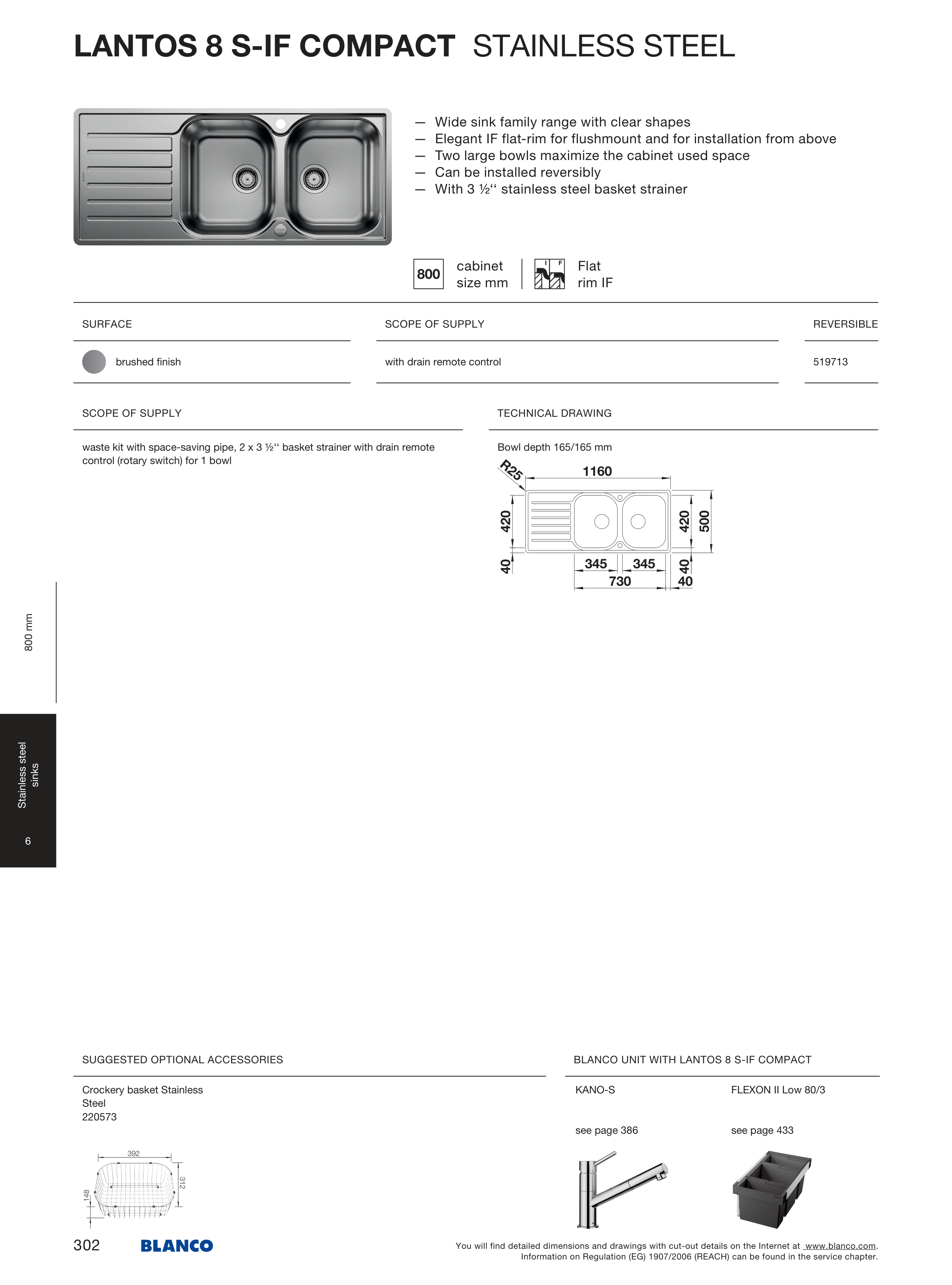

LANTOS 8 S-IF COMPACT STAINLESS STEEL
— Wide sink family range with clear shapes
— Elegant IF flat-rim for flushmount and for installation from above
— Two large bowls maximize the cabinet used space
— Can be installed reversibly
— With 3 ½‘‘ stainless steel basket strainer
cabinet
size mm
Flat
rim IF
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space-saving pipe, 2 x 3 ½‘‘ basket strainer with drain remote
control (rotary switch) for 1 bowl
Bowl depth 165/165 mm
SURFACE
SCOPE OF SUPPLY
REVERSIBLE
brushed finish
with drain remote control
519 713
Crockery basket Stainless
Steel
220 573
KANO-S
see page 386
FLEXON II Low 80/3
see page 433
800 mm
Stainless steel
sinks
6
302
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
