SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH LANTOS 9 E-IF

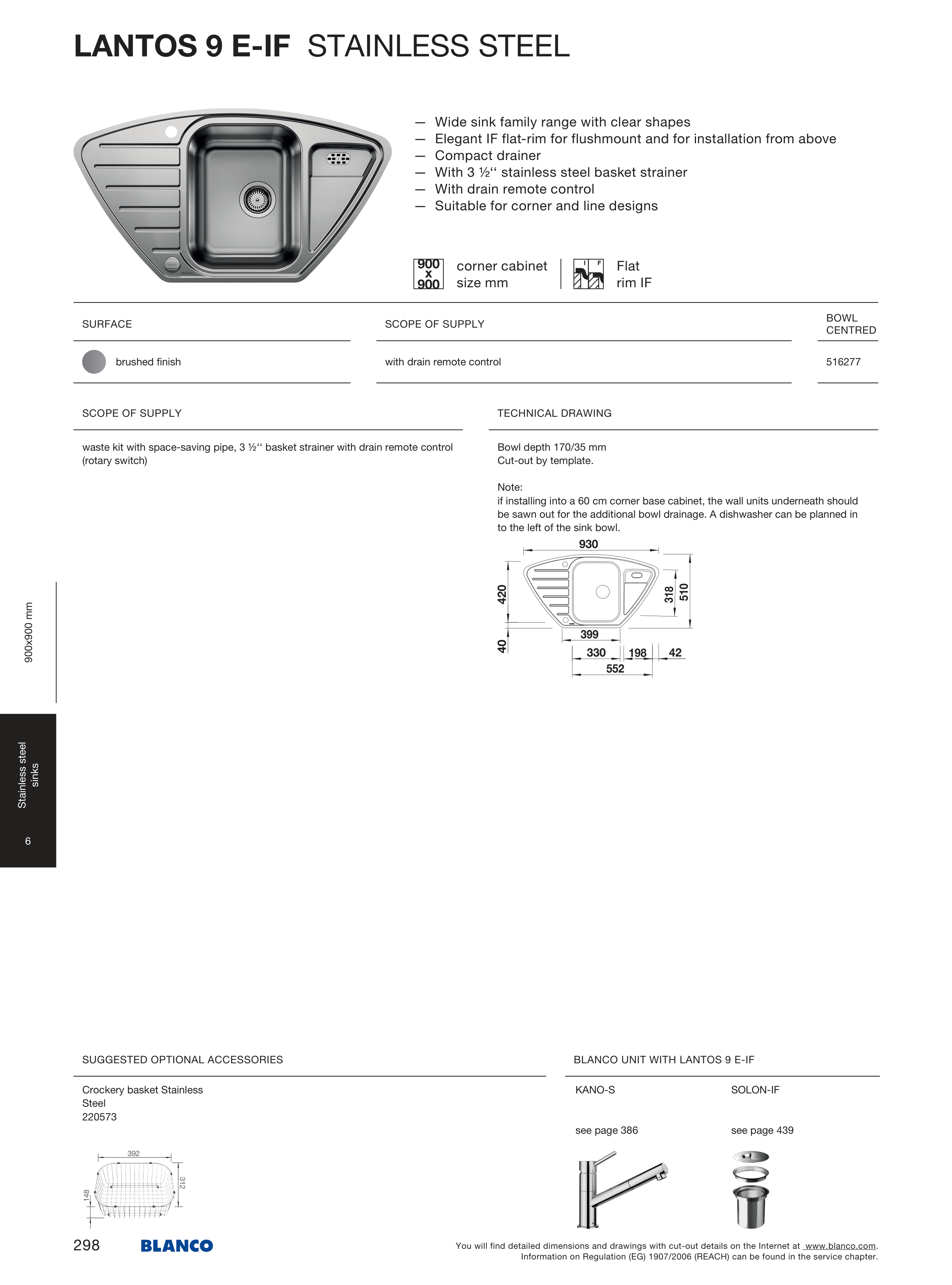

LANTOS 9 E-IF STAINLESS STEEL
— Wide sink family range with clear shapes
— Elegant IF flat-rim for flushmount and for installation from above
— Compact drainer
— With 3 ½‘‘ stainless steel basket strainer
— With drain remote control
— Suitable for corner and line designs
corner cabinet
size mm
Flat
rim IF
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space-saving pipe, 3 ½‘‘ basket strainer with drain remote control
(rotary switch)
Bowl depth 170/35 mm
Cut-out by template.
Note:
if installing into a 60 cm corner base cabinet, the wall units underneath should
be sawn out for the additional bowl drainage. A dishwasher can be planned in
to the left of the sink bowl.
SURFACE
SCOPE OF SUPPLY
BOWL
CENTRED
brushed finish
with drain remote control
516 277
Crockery basket Stainless
Steel
220 573
KANO-S
see page 386
SOLON-IF
see page 439
900x900 mm
Stainless steel
sinks
6
298
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
