SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH AXIA III 45 S

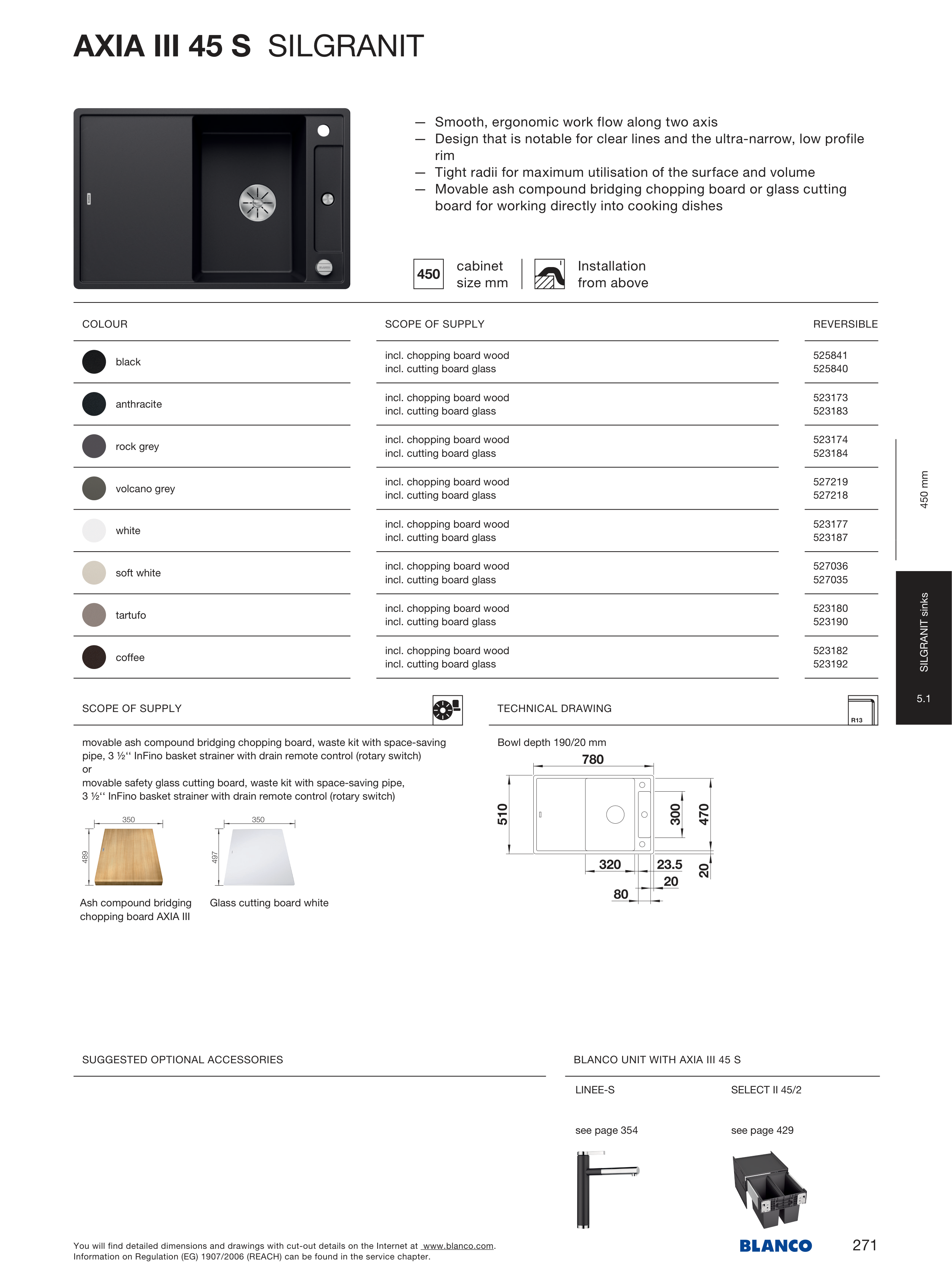

AXIA III 45 S SILGRANIT
— Smooth, ergonomic work flow along two axis
— Design that is notable for clear lines and the ultra-narrow, low profile
rim
— Tight radii for maximum utilisation of the surface and volume
— Movable ash compound bridging chopping board or glass cutting
board for working directly into cooking dishes
cabinet
size mm
Installation
from above
SCOPE OF SUPPLY
TECHNICAL DRAWING
movable ash compound bridging chopping board, waste kit with space-saving
pipe, 3 ½‘‘ InFino basket strainer with drain remote control (rotary switch)
or
movable safety glass cutting board, waste kit with space-saving pipe,
3 ½‘‘ InFino basket strainer with drain remote control (rotary switch)
Bowl depth 190/20 mm
COLOUR
SCOPE OF SUPPLY
REVERSIBLE
black
incl. chopping board wood
incl. cutting board glass
525 841
525 840
anthracite
incl. chopping board wood
incl. cutting board glass
523 173
523 183
rock grey
incl. chopping board wood
incl. cutting board glass
523 174
523 184
volcano grey
incl. chopping board wood
incl. cutting board glass
527 219
527 218
white
incl. chopping board wood
incl. cutting board glass
523 177
523 187
soft white
incl. chopping board wood
incl. cutting board glass
527 036
527 035
tartufo
incl. chopping board wood
incl. cutting board glass
523 180
523 190
coffee
incl. chopping board wood
incl. cutting board glass
523 182
523 192
Glass cutting board white
Ash compound bridging
chopping board AXIA III
LINEE-S
see page 354
SELECT II 45/2
see page 429
450 mm
SILGRANIT sinks
5.1
271
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
