SUGGESTED OPTIONAL ACCESSORIES

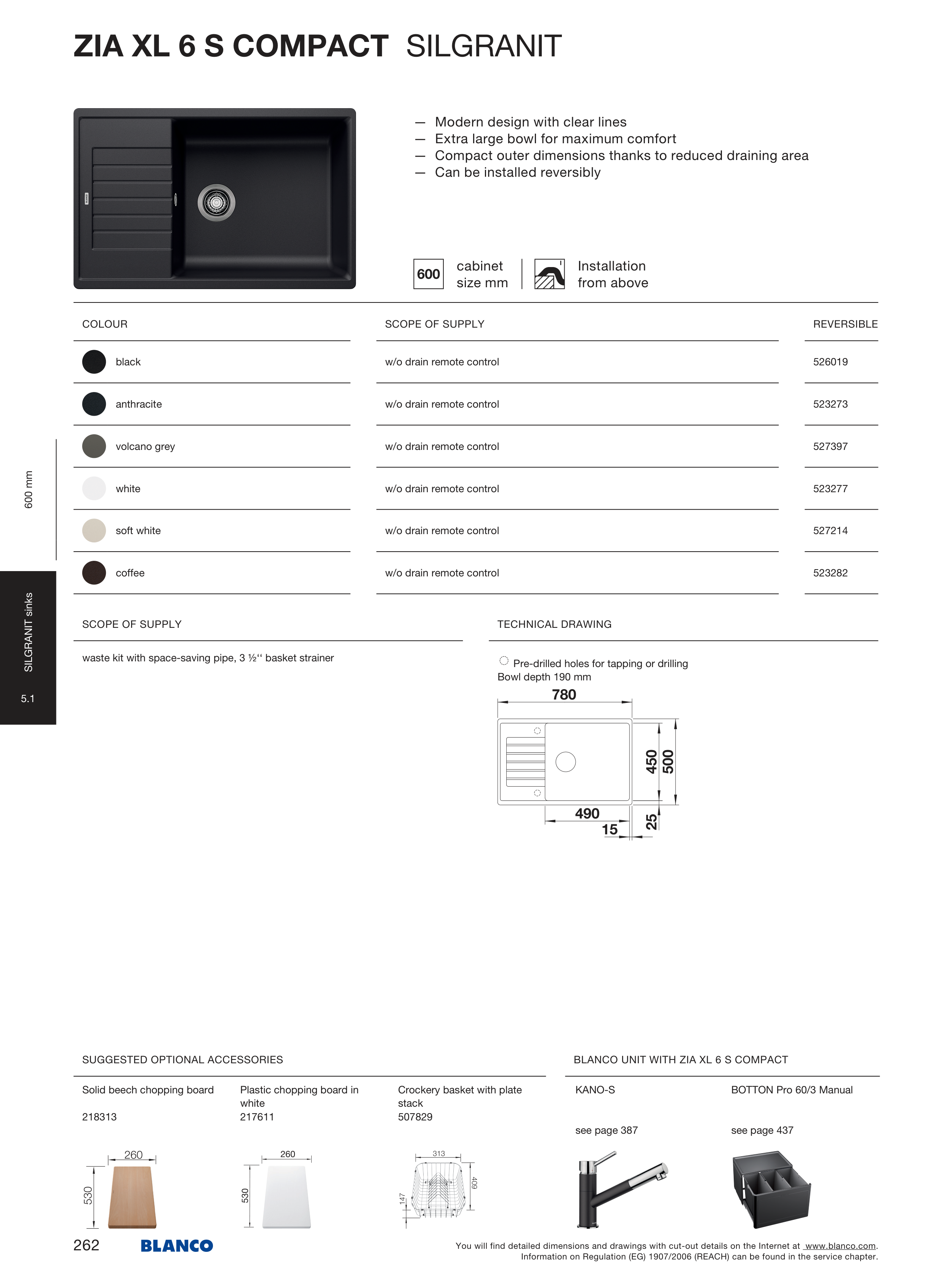

BLANCO UNIT WITH ZIA XL 6 S COMPACT
ZIA XL 6 S COMPACT SILGRANIT
— Modern design with clear lines
— Extra large bowl for maximum comfort
— Compact outer dimensions thanks to reduced draining area
— Can be installed reversibly
cabinet
size mm
Installation
from above
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space-saving pipe, 3 ½‘‘ basket strainer
Pre-drilled holes for tapping or drilling
Bowl depth 190 mm
COLOUR
SCOPE OF SUPPLY
REVERSIBLE
black
w/o drain remote control
526 019
anthracite
w/o drain remote control
523 273
volcano grey
w/o drain remote control
527 397
white
w/o drain remote control
523 277
soft white
w/o drain remote control
527 214
coffee
w/o drain remote control
523 282
Solid beech chopping board
218 313
Plastic chopping board in
white
217 611
Crockery basket with plate
stack
507 829
KANO-S
see page 387
BOTTON Pro 60/3 Manual
see page 437
600 mm
SILGRANIT sinks
5.1
262
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
