SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH AXIA III 6 S

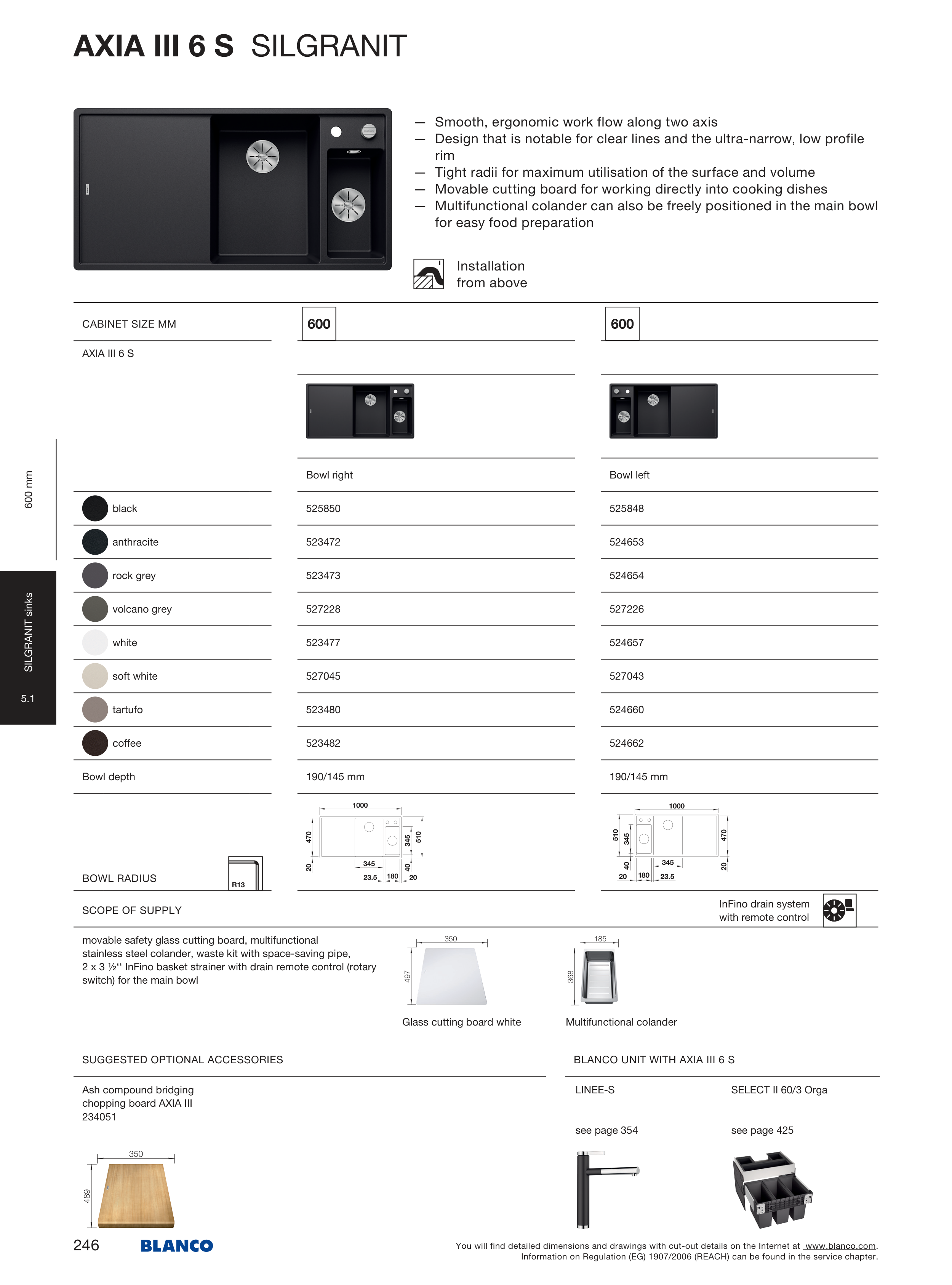

AXIA III 6 S SILGRANIT
— Smooth, ergonomic work flow along two axis
— Design that is notable for clear lines and the ultra-narrow, low profile
rim
— Tight radii for maximum utilisation of the surface and volume
— Movable cutting board for working directly into cooking dishes
— Multifunctional colander can also be freely positioned in the main bowl
for easy food preparation
Installation
from above
CABINET SIZE MM
AXIA III 6 S
Bowl right
Bowl left
black
525 850
525 848
anthracite
523 472
524 653
rock grey
523 473
524 654
volcano grey
527 228
527 226
white
523 477
524 657
soft white
527 045
527 043
tartufo
523 480
524 660
coffee
523 482
524 662
Bowl depth
190/145 mm
190/145 mm
BOWL RADIUS
40
510
345
movable safety glass cutting board, multifunctional
stainless steel colander, waste kit with space-saving pipe,
2 x 3 ½‘‘ InFino basket strainer with drain remote control (rotary
switch) for the main bowl
SCOPE OF SUPPLY
InFino drain system
with remote control
Multifunctional colander
Glass cutting board white
Ash compound bridging
chopping board AXIA III
234 051
LINEE-S
see page 354
SELECT II 60/3 Orga
see page 425
600 mm
SILGRANIT sinks
5.1
246
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
