SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH ZIA 8 S

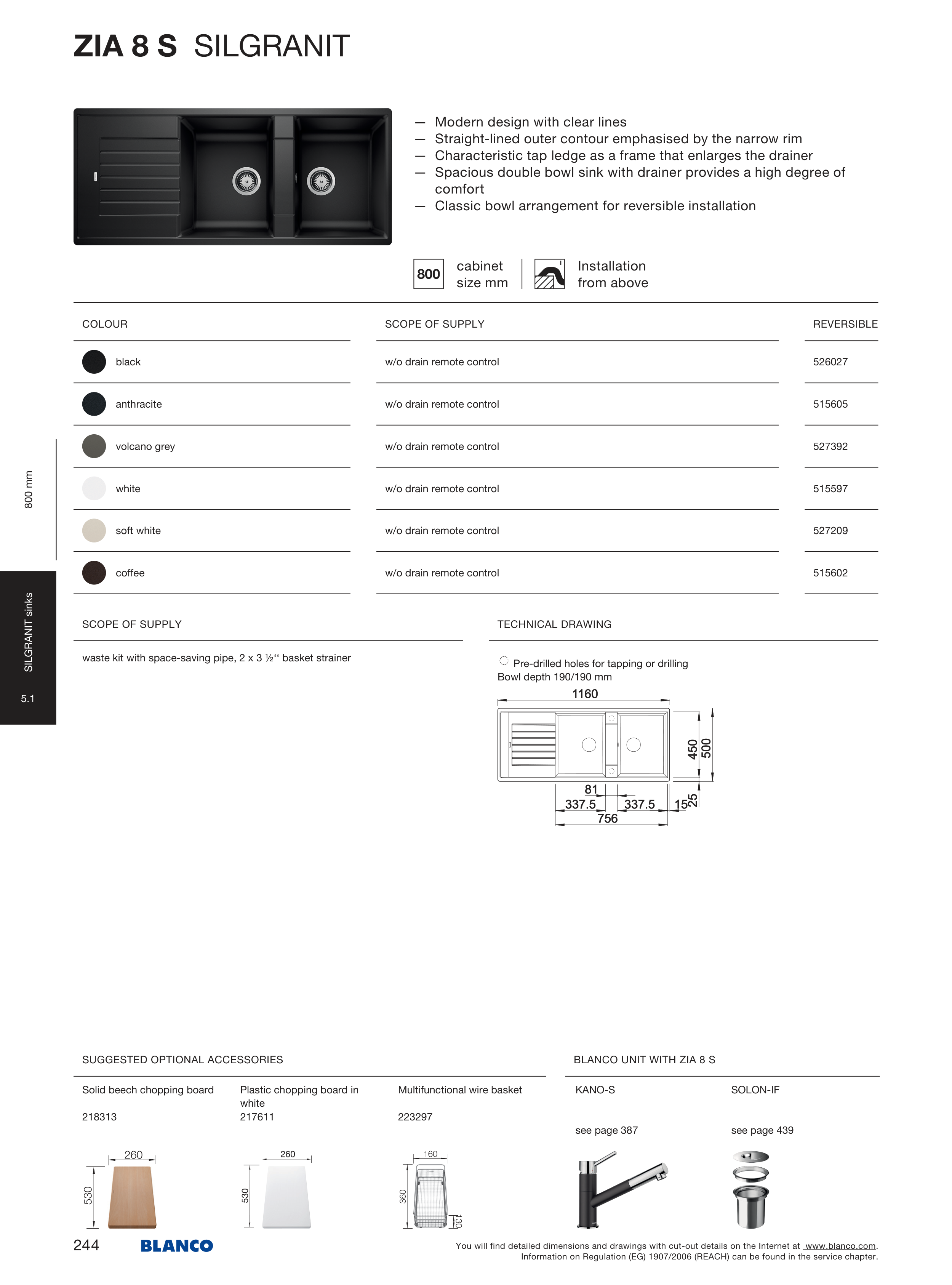

ZIA 8 S SILGRANIT
— Modern design with clear lines
— Straight-lined outer contour emphasised by the narrow rim
— Characteristic tap ledge as a frame that enlarges the drainer
— Spacious double bowl sink with drainer provides a high degree of
comfort
— Classic bowl arrangement for reversible installation
cabinet
size mm
Installation
from above
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space-saving pipe, 2 x 3 ½‘‘ basket strainer
Pre-drilled holes for tapping or drilling
Bowl depth 190/190 mm
COLOUR
SCOPE OF SUPPLY
REVERSIBLE
black
w/o drain remote control
526 027
anthracite
w/o drain remote control
515 605
volcano grey
w/o drain remote control
527 392
white
w/o drain remote control
515 597
soft white
w/o drain remote control
527 209
coffee
w/o drain remote control
515 602
Solid beech chopping board
218 313
Plastic chopping board in
white
217 611
Multifunctional wire basket
223 297
KANO-S
see page 387
SOLON-IF
see page 439
800 mm
SILGRANIT sinks
5.1
244
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
