SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH ZIA 9 E

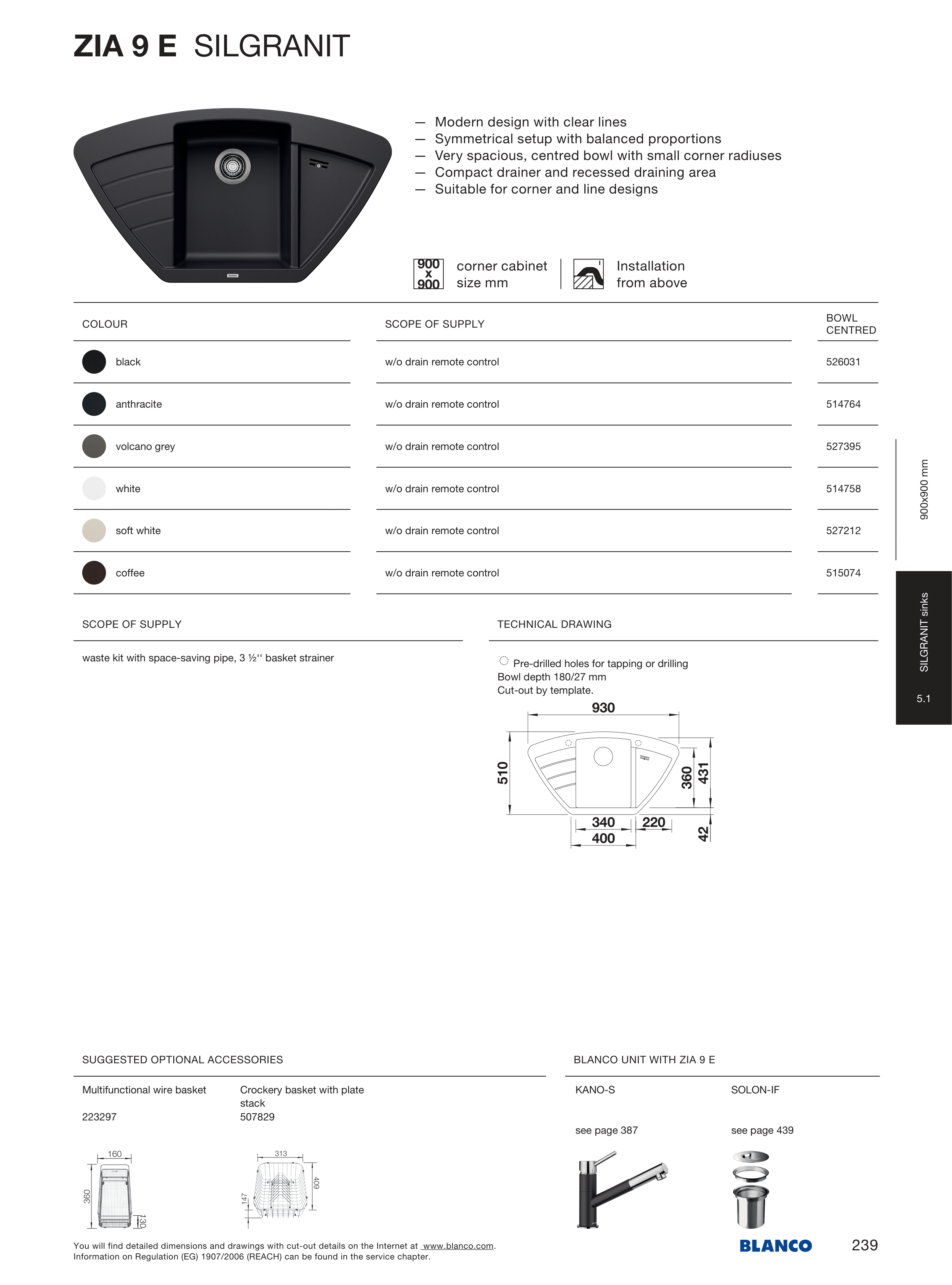

ZIA 9 E SILGRANIT
— Modern design with clear lines
— Symmetrical setup with balanced proportions
— Very spacious, centred bowl with small corner radiuses
— Compact drainer and recessed draining area
— Suitable for corner and line designs
corner cabinet
size mm
Installation
from above
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space-saving pipe, 3 ½‘‘ basket strainer
Pre-drilled holes for tapping or drilling
Bowl depth 180/27 mm
Cut-out by template.
COLOUR
SCOPE OF SUPPLY
BOWL
CENTRED
black
w/o drain remote control
526 031
anthracite
w/o drain remote control
514 764
volcano grey
w/o drain remote control
527 395
white
w/o drain remote control
514 758
soft white
w/o drain remote control
527 212
coffee
w/o drain remote control
515 074
Multifunctional wire basket
223 297
Crockery basket with plate
stack
507 829
KANO-S
see page 387
SOLON-IF
see page 439
900x900 mm
SILGRANIT sinks
5.1
239
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
