SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH TOP EE 3 X 4

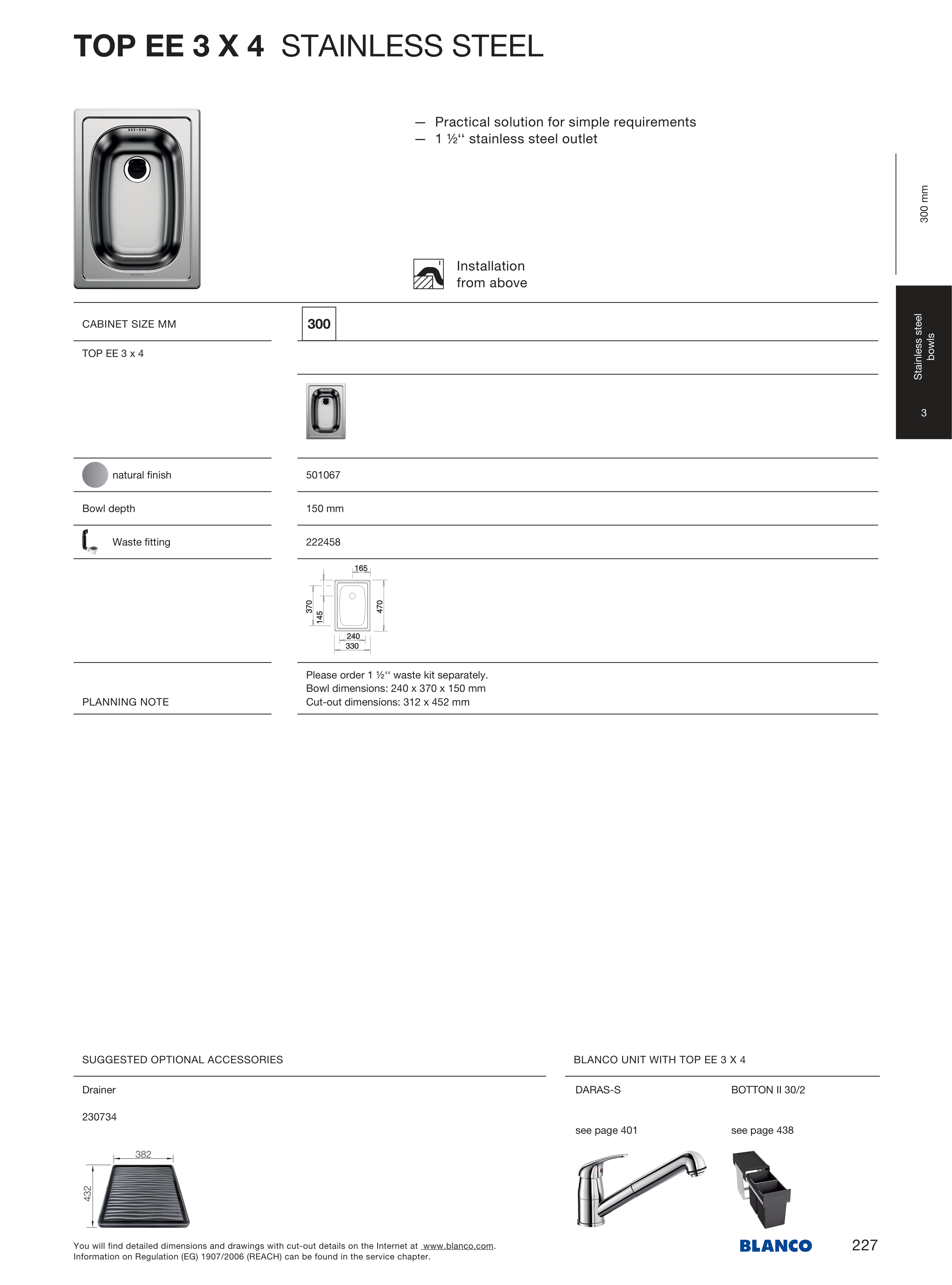

TOP EE 3 X 4 STAINLESS STEEL
— Practical solution for simple requirements
— 1 ½‘‘ stainless steel outlet
Installation
from above
CABINET SIZE MM
TOP EE 3 x 4
natural finish
501 067
Bowl depth
150 mm
Waste fitting
222 458
PLANNING NOTE
Please order 1 ½‘‘ waste kit separately.
Bowl dimensions: 240 x 370 x 150 mm
Cut-out dimensions: 312 x 452 mm
Drainer
230 734
DARAS-S
see page 401
BOTTON II 30/2
see page 438
300 mm
Stainless steel
bowls
3
227
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
