SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH SOLIS 180-U

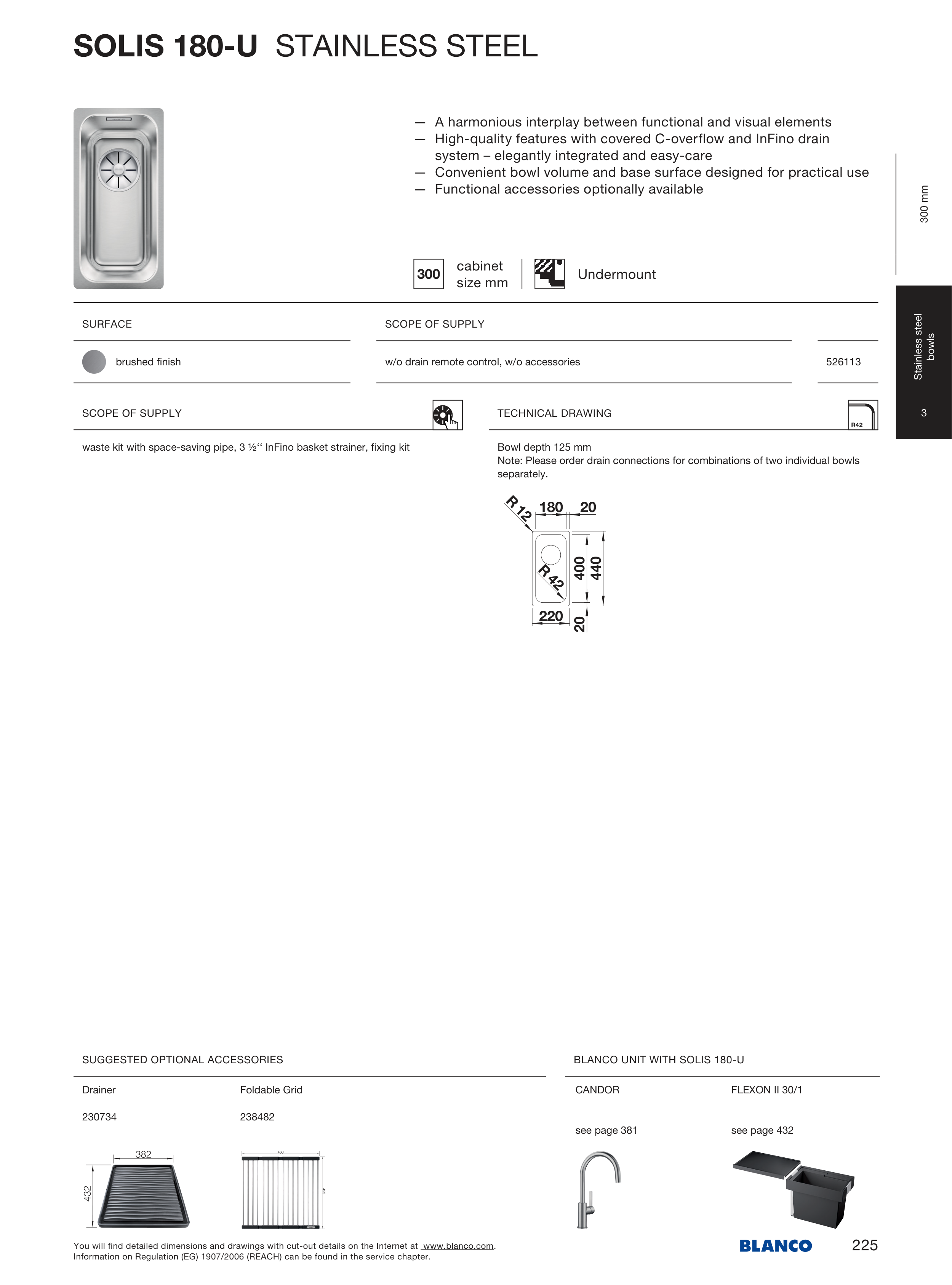

SOLIS 180-U STAINLESS STEEL
— A harmonious interplay between functional and visual elements
— High-quality features with covered C-overflow and InFino drain
system – elegantly integrated and easy-care
— Convenient bowl volume and base surface designed for practical use
— Functional accessories optionally available
cabinet
size mm
Undermount
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space-saving pipe, 3 ½‘‘ InFino basket strainer, fixing kit
R 12
20
180
R 42
20
440
400
220
Bowl depth 125 mm
Note: Please order drain connections for combinations of two individual bowls
separately.
SURFACE
SCOPE OF SUPPLY
brushed finish
w/o drain remote control, w/o accessories
526 113
Drainer
230 734
Foldable Grid
238 482
CANDOR
see page 381
FLEXON II 30/1
see page 432
300 mm
Stainless steel
bowls
3
225
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
