SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH SUPRA 340-U

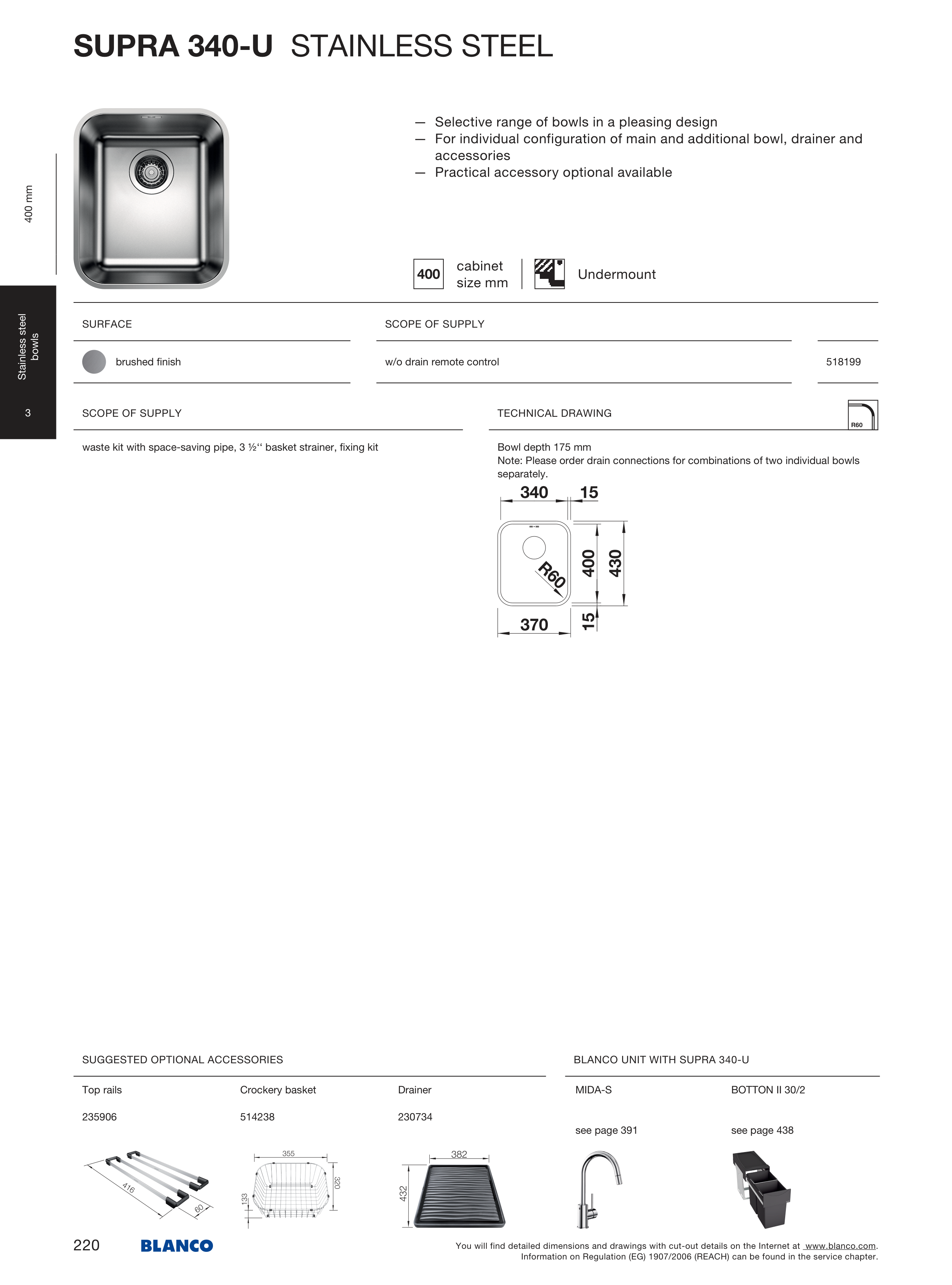

SUPRA 340-U STAINLESS STEEL
— Selective range of bowls in a pleasing design
— For individual configuration of main and additional bowl, drainer and
accessories
— Practical accessory optional available
cabinet
size mm
Undermount
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space-saving pipe, 3 ½‘‘ basket strainer, fixing kit
Bowl depth 175 mm
Note: Please order drain connections for combinations of two individual bowls
separately.
SURFACE
SCOPE OF SUPPLY
brushed finish
w/o drain remote control
518 199
Top rails
235 906
Crockery basket
514 238
Drainer
230 734
MIDA-S
see page 391
BOTTON II 30/2
see page 438
400 mm
Stainless steel
bowls
3
220
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
