SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH CLARON 340-IF

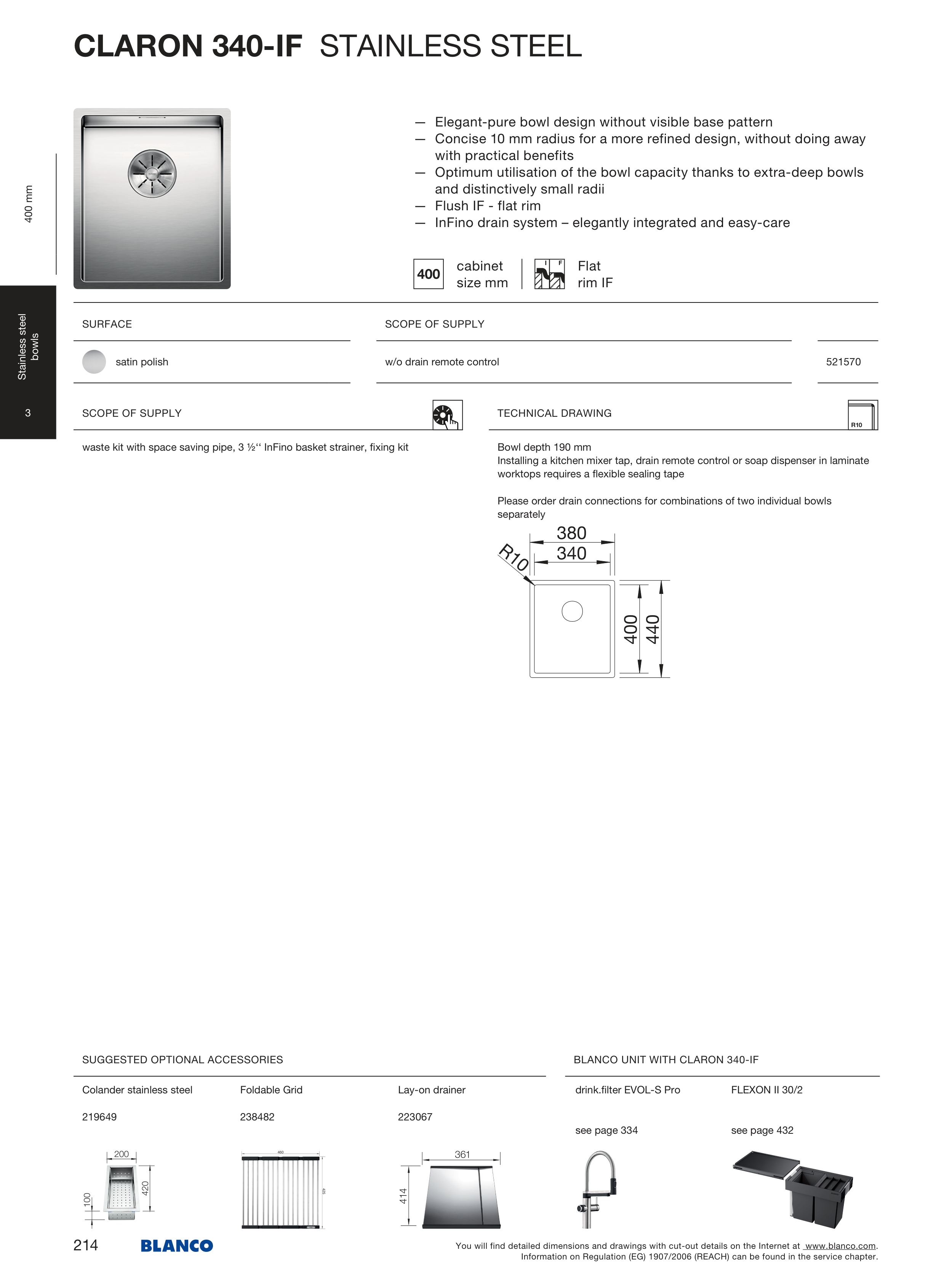

CLARON 340-IF STAINLESS STEEL
— Elegant-pure bowl design without visible base pattern
— Concise 10 mm radius for a more refined design, without doing away
with practical benefits
— Optimum utilisation of the bowl capacity thanks to extra-deep bowls
and distinctively small radii
— Flush IF - flat rim
— InFino drain system – elegantly integrated and easy-care
cabinet
size mm
Flat
rim IF
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space saving pipe, 3 ½‘‘ InFino basket strainer, fixing kit
Bowl depth 190 mm
Installing a kitchen mixer tap, drain remote control or soap dispenser in laminate
worktops requires a flexible sealing tape
Please order drain connections for combinations of two individual bowls
separately
SURFACE
SCOPE OF SUPPLY
satin polish
w/o drain remote control
521 570
Colander stainless steel
219 649
Foldable Grid
238 482
Lay-on drainer
223 067
drink.filter EVOL-S Pro
see page 334
FLEXON II 30/2
see page 432
400 mm
Stainless steel
bowls
3
214
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
