SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH SUPRA 400-IF R12

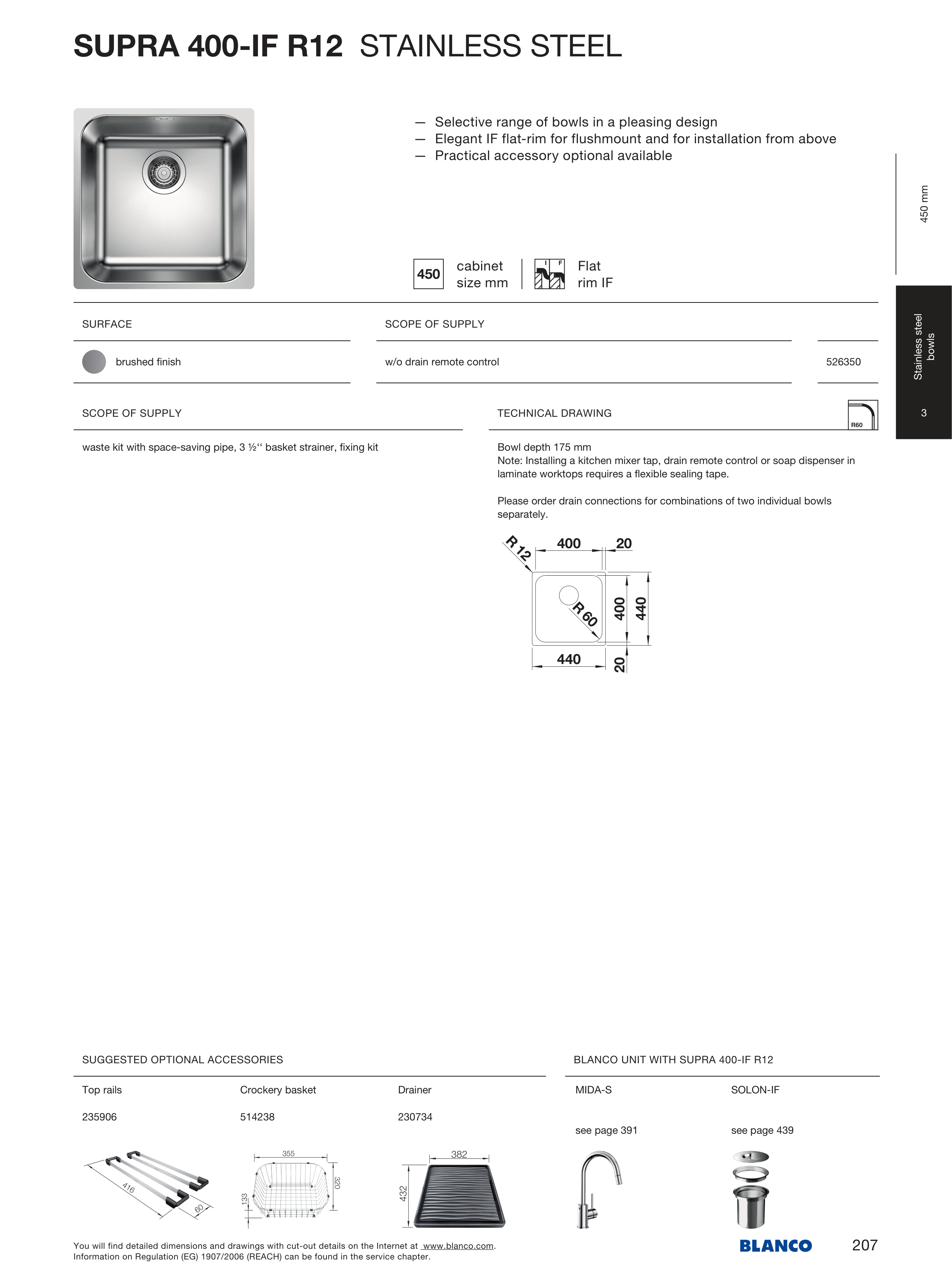

SUPRA 400-IF R12 STAINLESS STEEL
— Selective range of bowls in a pleasing design
— Elegant IF flat-rim for flushmount and for installation from above
— Practical accessory optional available
cabinet
size mm
Flat
rim IF
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space-saving pipe, 3 ½‘‘ basket strainer, fixing kit
R 12
R 60
400
20
400
440
440
20
Bowl depth 175 mm
Note: Installing a kitchen mixer tap, drain remote control or soap dispenser in
laminate worktops requires a flexible sealing tape.
Please order drain connections for combinations of two individual bowls
separately.
SURFACE
SCOPE OF SUPPLY
brushed finish
w/o drain remote control
526 350
Top rails
235 906
Crockery basket
514 238
Drainer
230 734
MIDA-S
see page 391
SOLON-IF
see page 439
450 mm
Stainless steel
bowls
3
207
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
