SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH ANDANO 400-IF/A

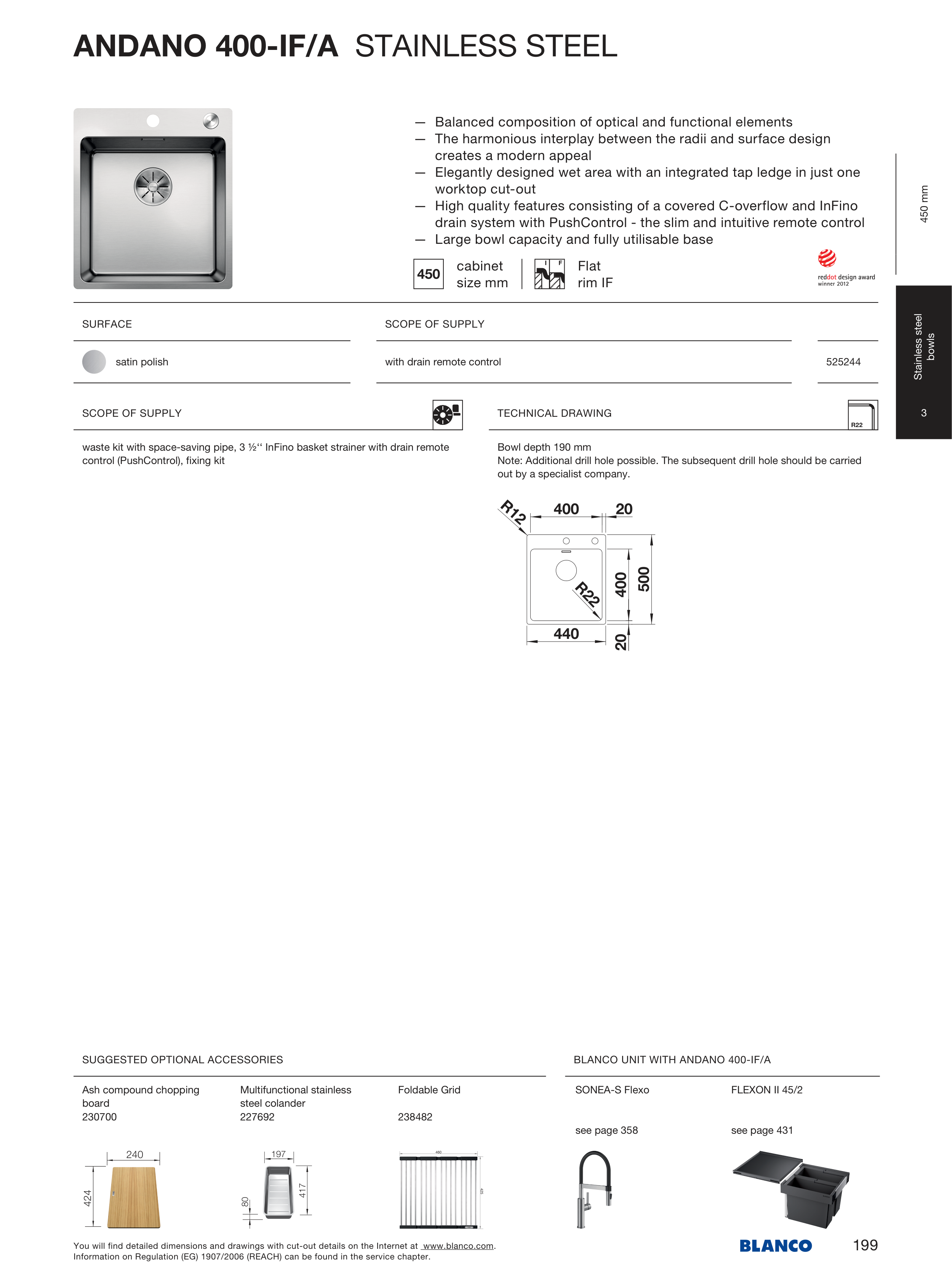

ANDANO 400-IF/A STAINLESS STEEL
— Balanced composition of optical and functional elements
— The harmonious interplay between the radii and surface design
creates a modern appeal
— Elegantly designed wet area with an integrated tap ledge in just one
worktop cut-out
— High quality features consisting of a covered C-overflow and InFino
drain system with PushControl - the slim and intuitive remote control
— Large bowl capacity and fully utilisable base
cabinet
size mm
Flat
rim IF
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space-saving pipe, 3 ½‘‘ InFino basket strainer with drain remote
control (PushControl), fixing kit
Bowl depth 190 mm
Note: Additional drill hole possible. The subsequent drill hole should be carried
out by a specialist company.
SURFACE
SCOPE OF SUPPLY
satin polish
with drain remote control
525 244
Ash compound chopping
board
230 700
Multifunctional stainless
steel colander
227 692
Foldable Grid
238 482
SONEA-S Flexo
see page 358
FLEXON II 45/2
see page 431
450 mm
Stainless steel
bowls
3
199
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
