SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH ANDANO-U

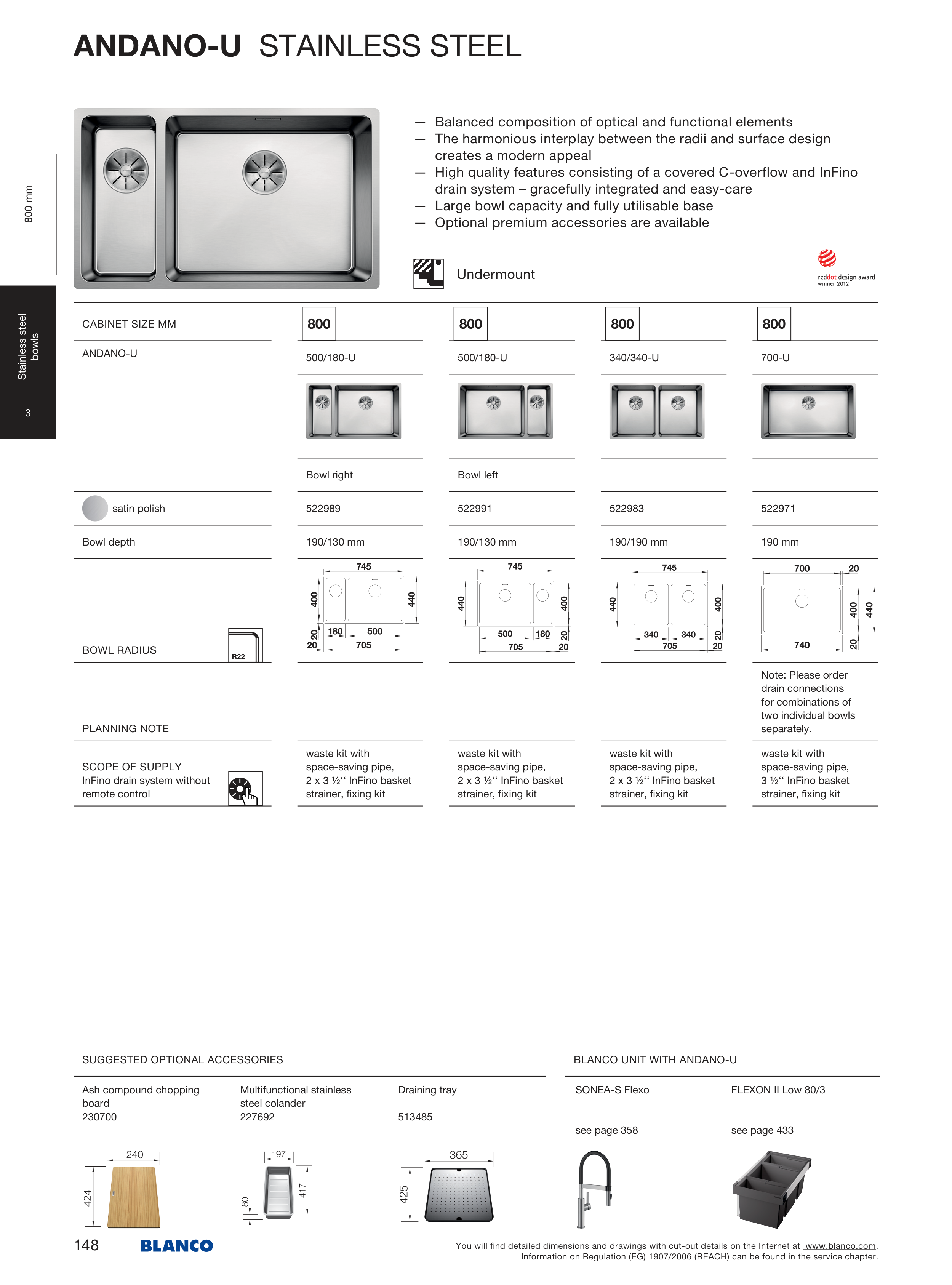

ANDANO-U STAINLESS STEEL
— Balanced composition of optical and functional elements
— The harmonious interplay between the radii and surface design
creates a modern appeal
— High quality features consisting of a covered C-overflow and InFino
drain system – gracefully integrated and easy-care
— Large bowl capacity and fully utilisable base
— Optional premium accessories are available
Undermount
CABINET SIZE MM
ANDANO-U
500/180-U
500/180-U
340/340-U
700-U
Bowl right
Bowl left
satin polish
522 989
522 991
522 983
522 971
Bowl depth
190/130 mm
190/130 mm
190/190 mm
190 mm
BOWL RADIUS
PLANNING NOTE
Note: Please order
drain connections
for combinations of
two individual bowls
separately.
SCOPE OF SUPPLY
InFino drain system without
remote control
waste kit with
space-saving pipe,
2 x 3 ½‘‘ InFino basket
strainer, fixing kit
waste kit with
space-saving pipe,
2 x 3 ½‘‘ InFino basket
strainer, fixing kit
waste kit with
space-saving pipe,
2 x 3 ½‘‘ InFino basket
strainer, fixing kit
waste kit with
space-saving pipe,
3 ½‘‘ InFino basket
strainer, fixing kit
Ash compound chopping
board
230 700
Multifunctional stainless
steel colander
227 692
Draining tray
513 485
SONEA-S Flexo
see page 358
FLEXON II Low 80/3
see page 433
800 mm
Stainless steel
bowls
3
148
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
