SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH CLARON 700-IF/A

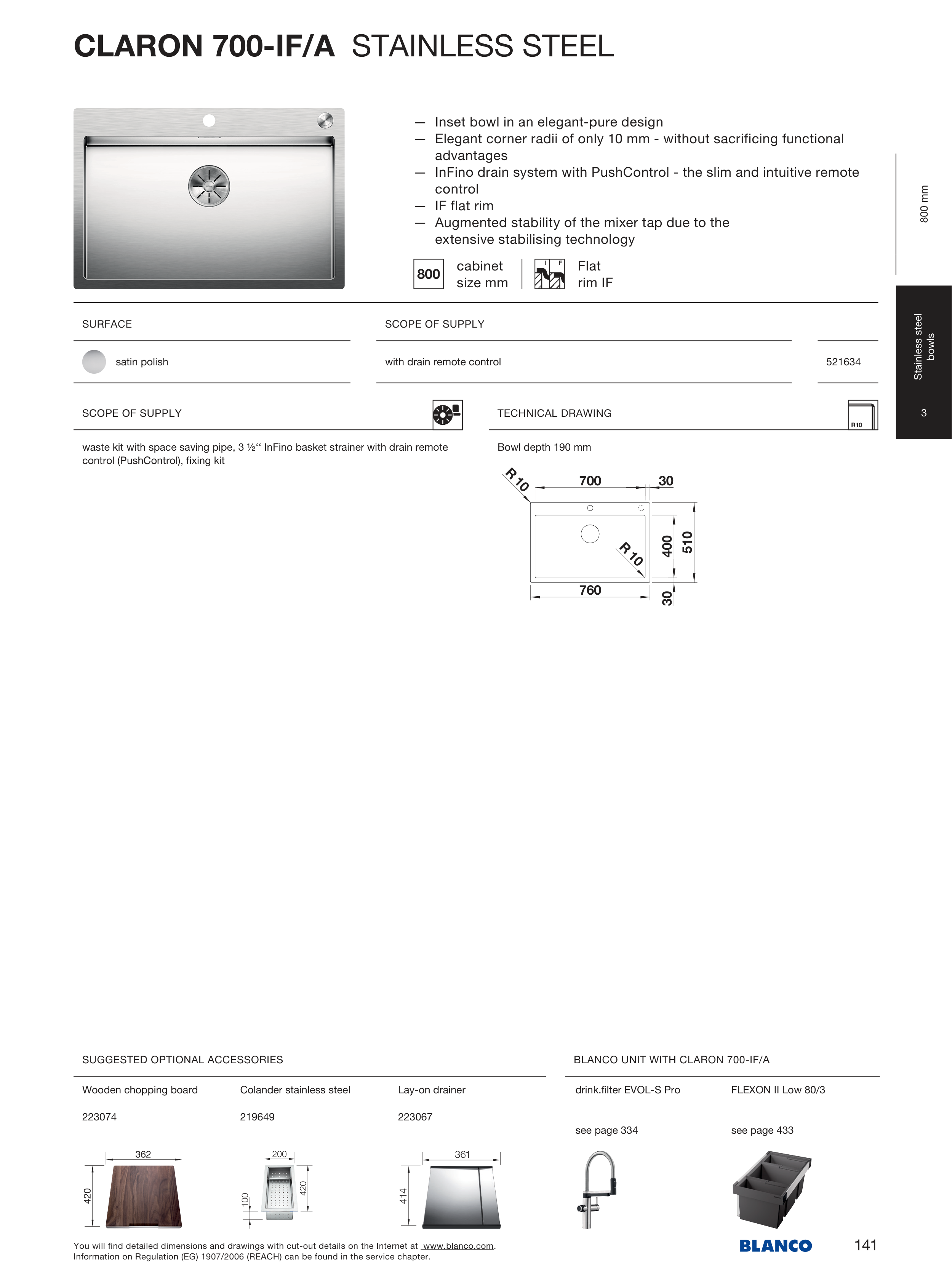

CLARON 700-IF/A STAINLESS STEEL
— Inset bowl in an elegant-pure design
— Elegant corner radii of only 10 mm - without sacrificing functional
advantages
— InFino drain system with PushControl - the slim and intuitive remote
control
— IF flat rim
— Augmented stability of the mixer tap due to the
extensive stabilising technology
cabinet
size mm
Flat
rim IF
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space saving pipe, 3 ½‘‘ InFino basket strainer with drain remote
control (PushControl), fixing kit
30
30
510
760
400
700
R 10
R 10
Bowl depth 190 mm
SURFACE
SCOPE OF SUPPLY
satin polish
with drain remote control
521 634
Wooden chopping board
223 074
Colander stainless steel
219 649
Lay-on drainer
223 067
drink.filter EVOL-S Pro
see page 334
FLEXON II Low 80/3
see page 433
800 mm
Stainless steel
bowls
3
141
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
