SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH QUATRUS R15-IU

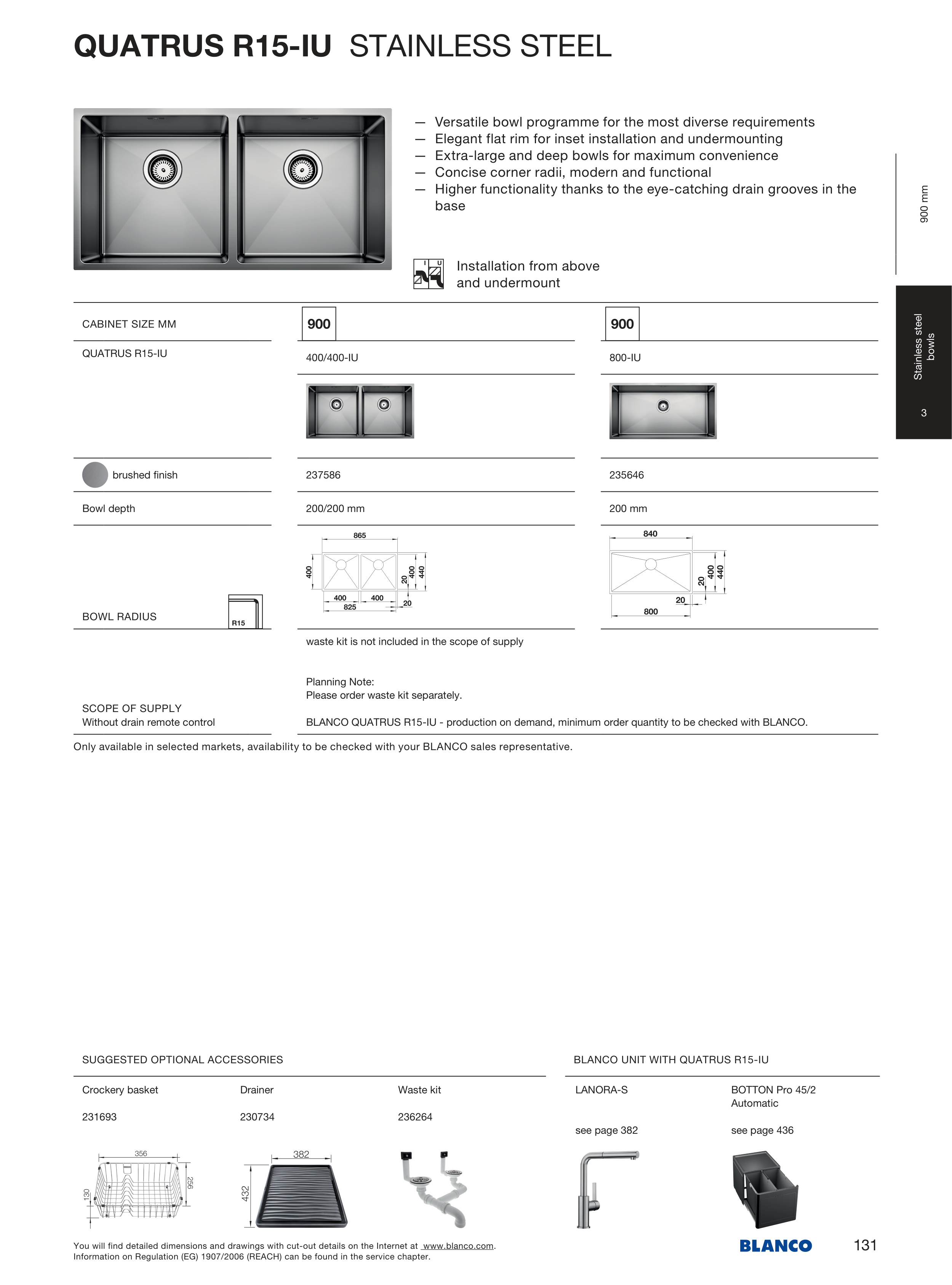

QUATRUS R15-IU STAINLESS STEEL
— Versatile bowl programme for the most diverse requirements
— Elegant flat rim for inset installation and undermounting
— Extra-large and deep bowls for maximum convenience
— Concise corner radii, modern and functional
— Higher functionality thanks to the eye-catching drain grooves in the
base
Installation from above
and undermount
CABINET SIZE MM
QUATRUS R15-IU
400/400-IU
800-IU
brushed finish
237 586
235 646
Bowl depth
200/200 mm
200 mm
BOWL RADIUS
SCOPE OF SUPPLY
Without drain remote control
waste kit is not included in the scope of supply
Planning Note:
Please order waste kit separately.
BLANCO QUATRUS R15-IU - production on demand, minimum order quantity to be checked with BLANCO.
Only available in selected markets, availability to be checked with your BLANCO sales representative.
Crockery basket
231 693
Drainer
230 734
Waste kit
236 264
LANORA-S
see page 382
BOTTON Pro 45/2
Automatic
see page 436
900 mm
Stainless steel
bowls
3
131
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
