SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH CLARON 400/400-IF

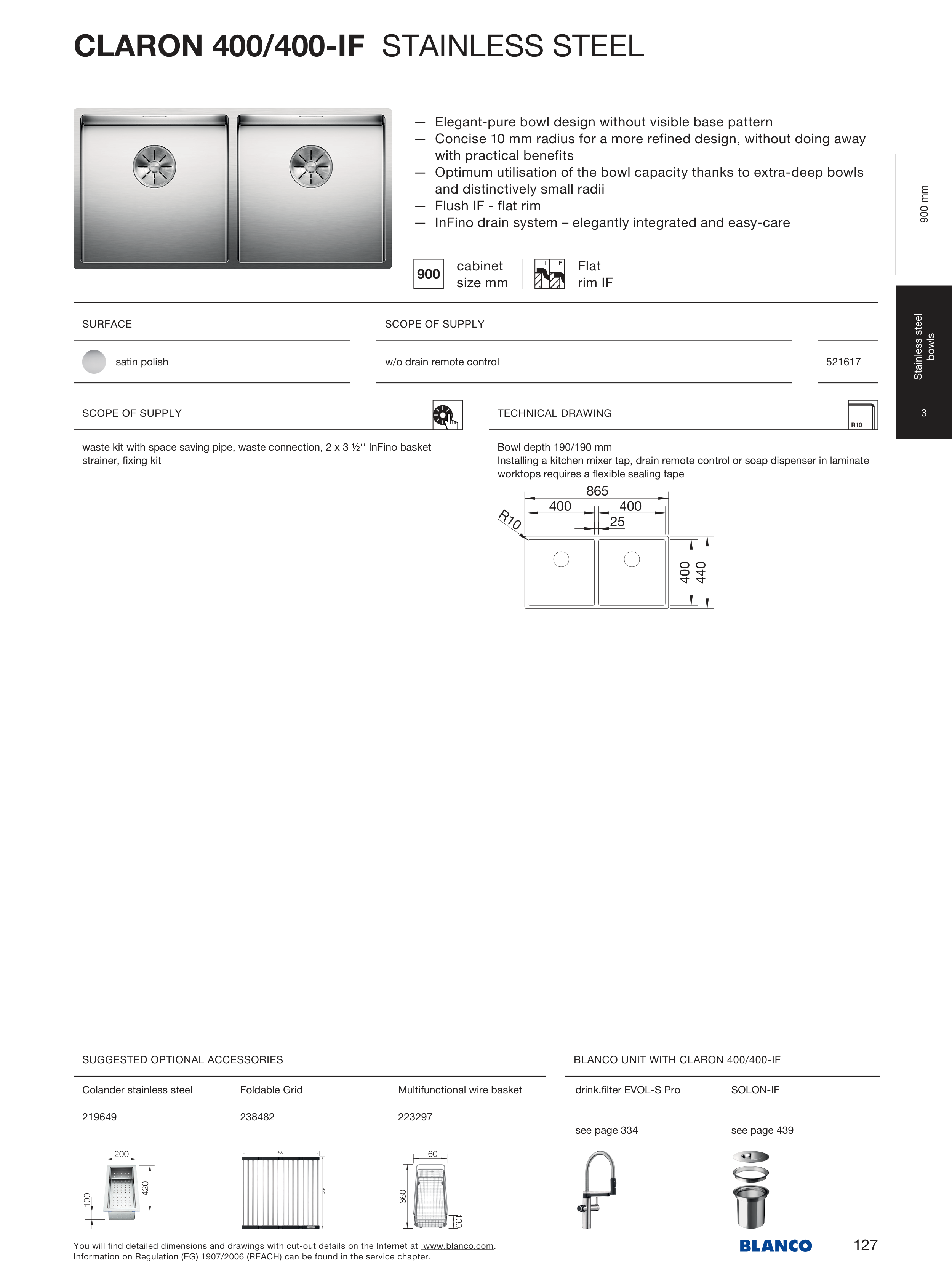

CLARON 400/400-IF STAINLESS STEEL
— Elegant-pure bowl design without visible base pattern
— Concise 10 mm radius for a more refined design, without doing away
with practical benefits
— Optimum utilisation of the bowl capacity thanks to extra-deep bowls
and distinctively small radii
— Flush IF - flat rim
— InFino drain system – elegantly integrated and easy-care
cabinet
size mm
Flat
rim IF
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space saving pipe, waste connection, 2 x 3 ½‘‘ InFino basket
strainer, fixing kit
Bowl depth 190/190 mm
Installing a kitchen mixer tap, drain remote control or soap dispenser in laminate
worktops requires a flexible sealing tape
SURFACE
SCOPE OF SUPPLY
satin polish
w/o drain remote control
521 617
Colander stainless steel
219 649
Foldable Grid
238 482
Multifunctional wire basket
223 297
drink.filter EVOL-S Pro
see page 334
SOLON-IF
see page 439
900 mm
Stainless steel
bowls
3
127
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
