SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH SUBLINE 340/160-U FOR COLOURED
COMPONENTS

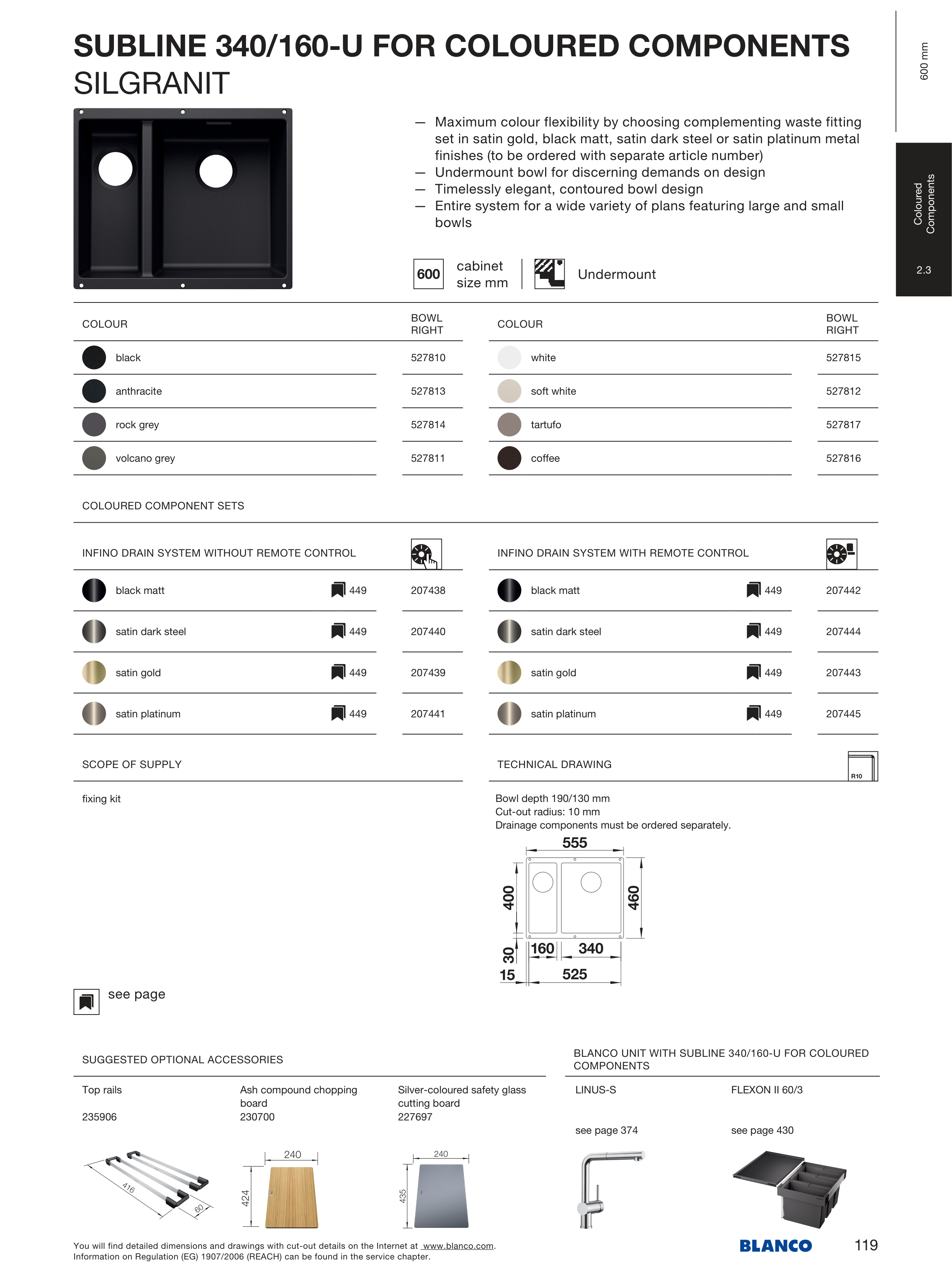

SUBLINE 340/160-U FOR COLOURED COMPONENTS
SILGRANIT
— Maximum colour flexibility by choosing complementing waste fitting
set in satin gold, black matt, satin dark steel or satin platinum metal
finishes (to be ordered with separate article number)
— Undermount bowl for discerning demands on design
— Timelessly elegant, contoured bowl design
— Entire system for a wide variety of plans featuring large and small
bowls
cabinet
size mm
Undermount
SCOPE OF SUPPLY
INFINO DRAIN SYSTEM WITH REMOTE CONTROL
black matt
449
207 442
satin dark steel
449
207 444
satin gold
449
207 443
satin platinum
449
207 445
COLOUR
BOWL
RIGHT
black
527 810
anthracite
527 813
rock grey
527 814
volcano grey
527 811
COLOUR
BOWL
RIGHT
white
527 815
soft white
527 812
tartufo
527 817
coffee
527 816
COLOURED COMPONENT SETS
TECHNICAL DRAWING
fixing kit
Bowl depth 190/130 mm
Cut-out radius: 10 mm
Drainage components must be ordered separately.
INFINO DRAIN SYSTEM WITHOUT REMOTE CONTROL
black matt
449
207 438
satin dark steel
449
207 440
satin gold
449
207 439
satin platinum
449
207 441
Top rails
235 906
Ash compound chopping
board
230 700
Silver-coloured safety glass
cutting board
227 697
LINUS-S
see page 374
FLEXON II 60/3
see page 430
see page
600 mm
Coloured
Components
2.3
119
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
