SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH SUBLINE-F

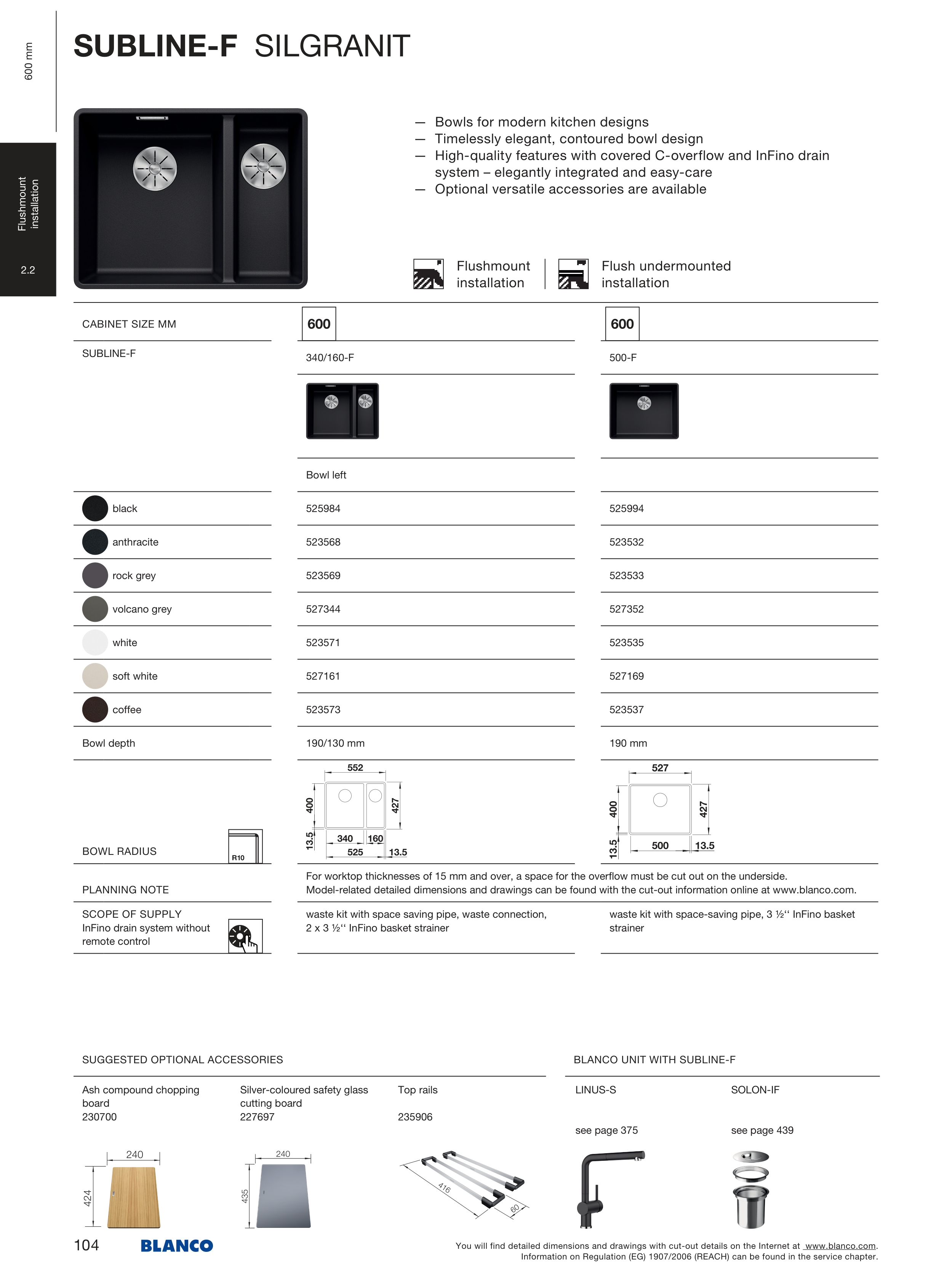

SUBLINE-F SILGRANIT
— Bowls for modern kitchen designs
— Timelessly elegant, contoured bowl design
— High-quality features with covered C-overflow and InFino drain
system – elegantly integrated and easy-care
— Optional versatile accessories are available
Flushmount
installation
Flush undermounted
installation
CABINET SIZE MM
SUBLINE-F
340/160-F
500-F
Bowl left
black
525 984
525 994
anthracite
523 568
523 532
rock grey
523 569
523 533
volcano grey
527 344
527 352
white
523 571
523 535
soft white
527 161
527 169
coffee
523 573
523 537
Bowl depth
190/130 mm
190 mm
BOWL RADIUS
PLANNING NOTE
For worktop thicknesses of 15 mm and over, a space for the overflow must be cut out on the underside.
Model-related detailed dimensions and drawings can be found with the cut-out information online at www.blanco.com.
SCOPE OF SUPPLY
InFino drain system without
remote control
waste kit with space saving pipe, waste connection,
2 x 3 ½‘‘ InFino basket strainer
waste kit with space-saving pipe, 3 ½‘‘ InFino basket
strainer
Ash compound chopping
board
230 700
Silver-coloured safety glass
cutting board
227 697
Top rails
235 906
LINUS-S
see page 375
SOLON-IF
see page 439
600 mm
Flushmount
installation
2.2
104
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
