SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH SUBLINE 160-U

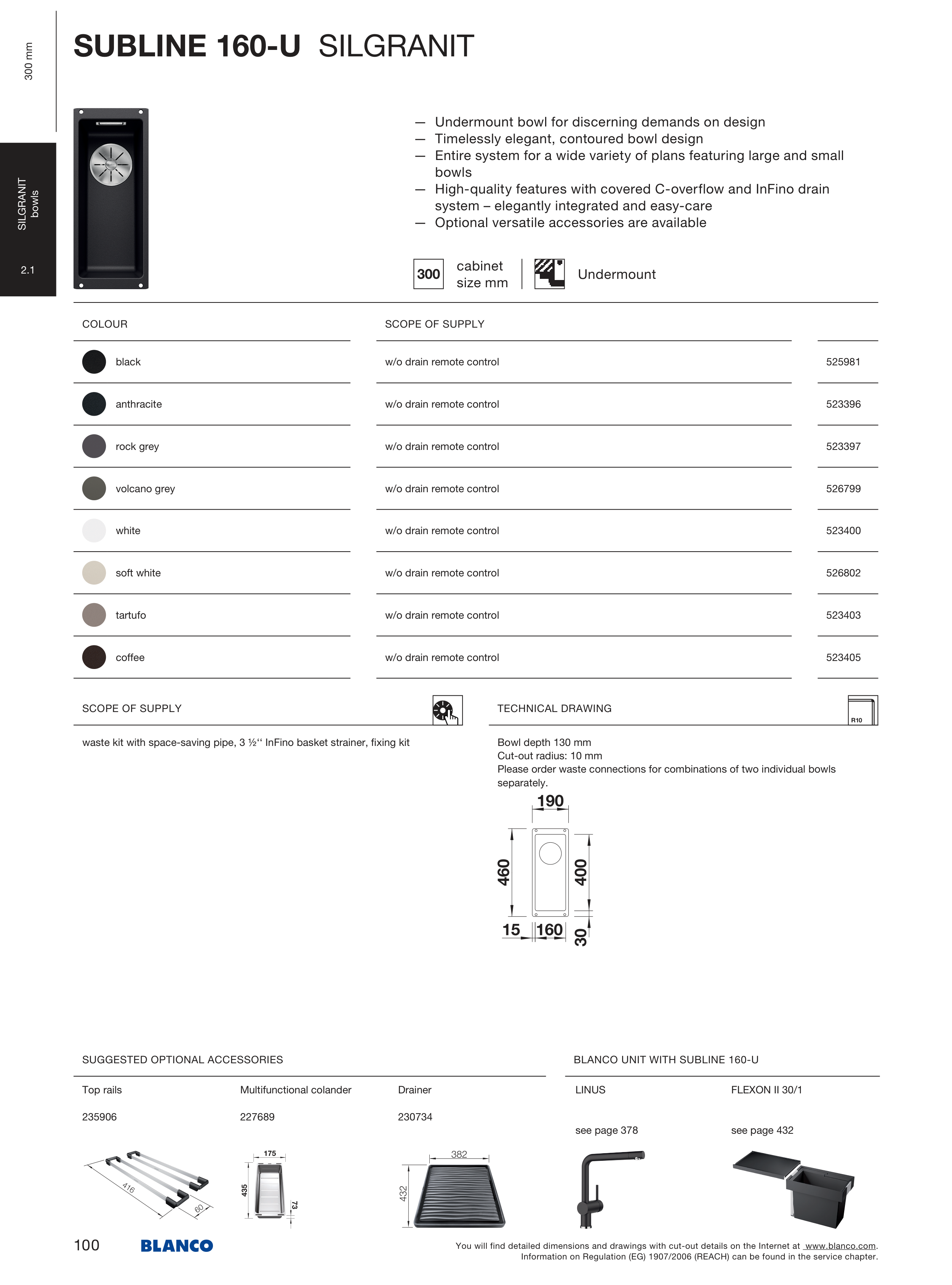

SUBLINE 160-U SILGRANIT
— Undermount bowl for discerning demands on design
— Timelessly elegant, contoured bowl design
— Entire system for a wide variety of plans featuring large and small
bowls
— High-quality features with covered C-overflow and InFino drain
system – elegantly integrated and easy-care
— Optional versatile accessories are available
cabinet
size mm
Undermount
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space-saving pipe, 3 ½‘‘ InFino basket strainer, fixing kit
Bowl depth 130 mm
Cut-out radius: 10 mm
Please order waste connections for combinations of two individual bowls
separately.
COLOUR
SCOPE OF SUPPLY
black
w/o drain remote control
525 981
anthracite
w/o drain remote control
523 396
rock grey
w/o drain remote control
523 397
volcano grey
w/o drain remote control
526 799
white
w/o drain remote control
523 400
soft white
w/o drain remote control
526 802
tartufo
w/o drain remote control
523 403
coffee
w/o drain remote control
523 405
Top rails
235 906
Multifunctional colander
227 689
73
435
175
Drainer
230 734
LINUS
see page 378
FLEXON II 30/1
see page 432
300 mm
SILGRANIT
bowls
2.1
100
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
