68
69
beneito-faure.com
custom system
beneito-faure.com

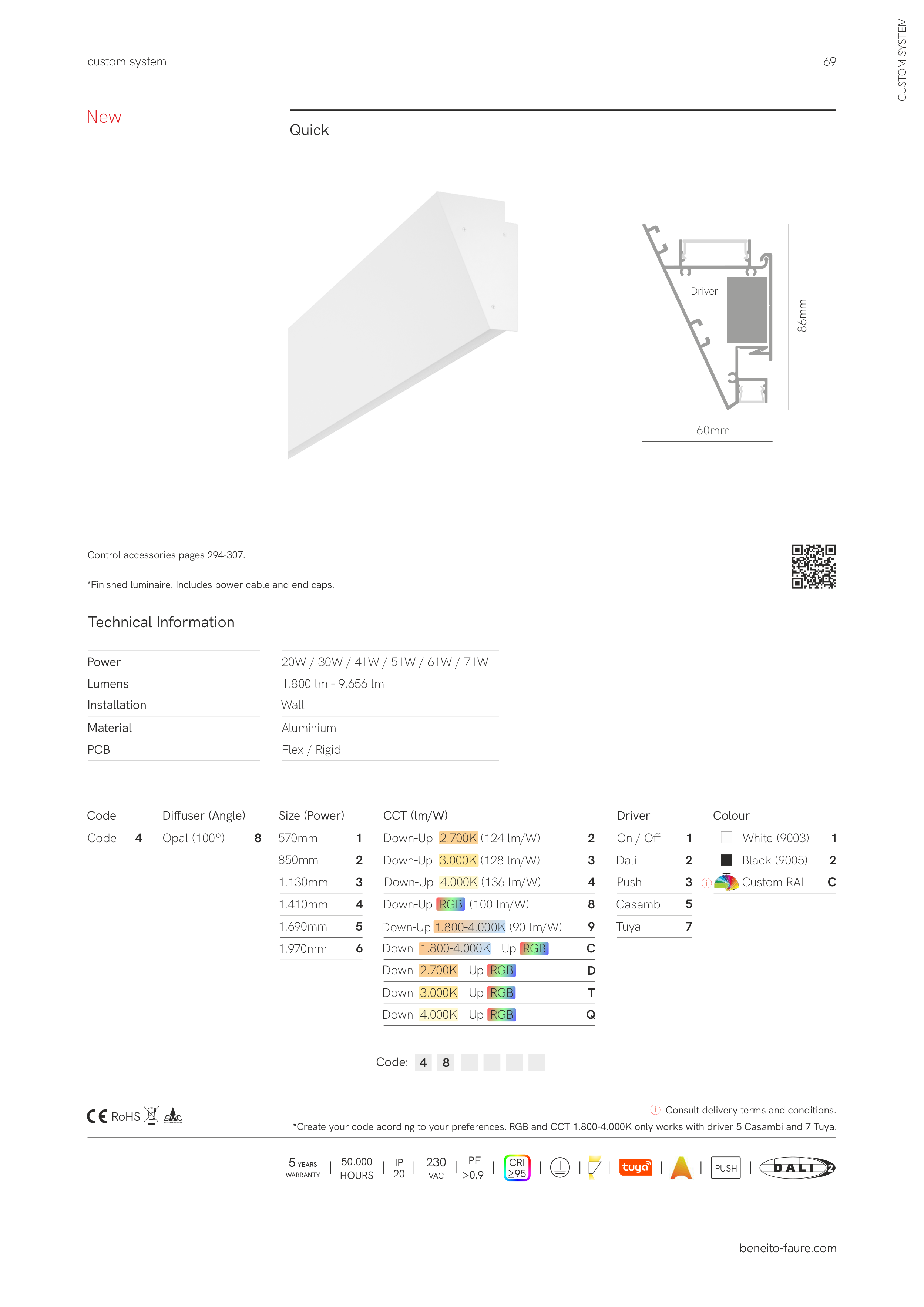

Quick
beneito-faure.com
beneito-faure.com
RoHS
5 YEARS
WARRANTY
50.000
HOURS
PF
>0,9
IP
20
PUSH
CRI
≥95
230
VAC
i
Consult delivery terms and conditions.
850mm
Opal (100º)
8
2
Di�user (Angle)
570mm
1
*Create your code acording to your preferences. RGB and CCT 1.800-4.000K only works with driver 5 Casambi and 7 Tuya.
custom system
1.410mm
4
1.130mm
3
1.970mm
6
1.690mm
5
Installation
Lumens
Material
Technical Information
4
Code:
*Finished luminaire. Includes power cable and end caps.
Power
Wall
1.800 lm - 9.656 lm
Aluminium
20W / 30W / 41W / 51W / 61W / 71W
Code
White (9003)
Black (9005)
On / O�
Dali
Push
Casambi
4
1
2
3
5
1
2
Colour
Driver
Size (Power)
Code
i
Custom RAL
Tuya
7
PCB
Flex / Rigid
C
Control accessories pages 294-307.
8
86mm
60mm
Driver
New
Up RGB
Down-Up 2.700K (124 lm/W)
Down-Up 3.000K (128 lm/W)
Down-Up 4.000K (136 lm/W)
2
3
4
CCT (lm/W)
Down-Up RGB (100 lm/W)
8
9
C
D
T
Q
Down 1.800-4.000K
Down 2.700K Up RGB
Down 3.000K Up RGB
Down 4.000K Up RGB
Down-Up 1.800-4.000K (90 lm/W)
CUSTOM SYSTEM
