64
65
Urban track
RoHS
beneito-faure.com
beneito-faure.com
Code
Installation
Lumens
Material
Three Phase Track
2.352 lm - 5.848 lm
Aluminium
Technical Information
White (9003)
On / O�
Casambi
570mm
840mm
6
4
6
4
6
1
6
Code:
Colour
Driver
Size
Code
1.130mm
8
Black (9005)
2
UGR (78º)
4
Di�user (Angle)
Opal (112º)
5
5 YEARS
WARRANTY
50.000
HOURS
PF
>0,9
CRI
≥95
UGR
<19 (4)
IP
20
PUSH
*Finished luminaire.
58mm
68mm
Driver
230
VAC
21W = 570mm
32W = 840mm / 43W = 1.130mm
2.700K (112 lm/W)
3.000K (128 lm/W)
4.000K (136 lm/W)
5.000K (136 lm/W)
2
3
4
5
CCT (lm/W)
2.700-5.500K (105 lm/W)
9
i
Custom RAL
Power
21W / 32W / 43W
i
Consult delivery terms and conditions.
C
PCB
Rigid
*Create your code acording to your preferences. CCT 2.700-5.500K only works with driver 6 Casambi.
Control accessories pages 294-307.
3,37m
Max
custom system
custom system

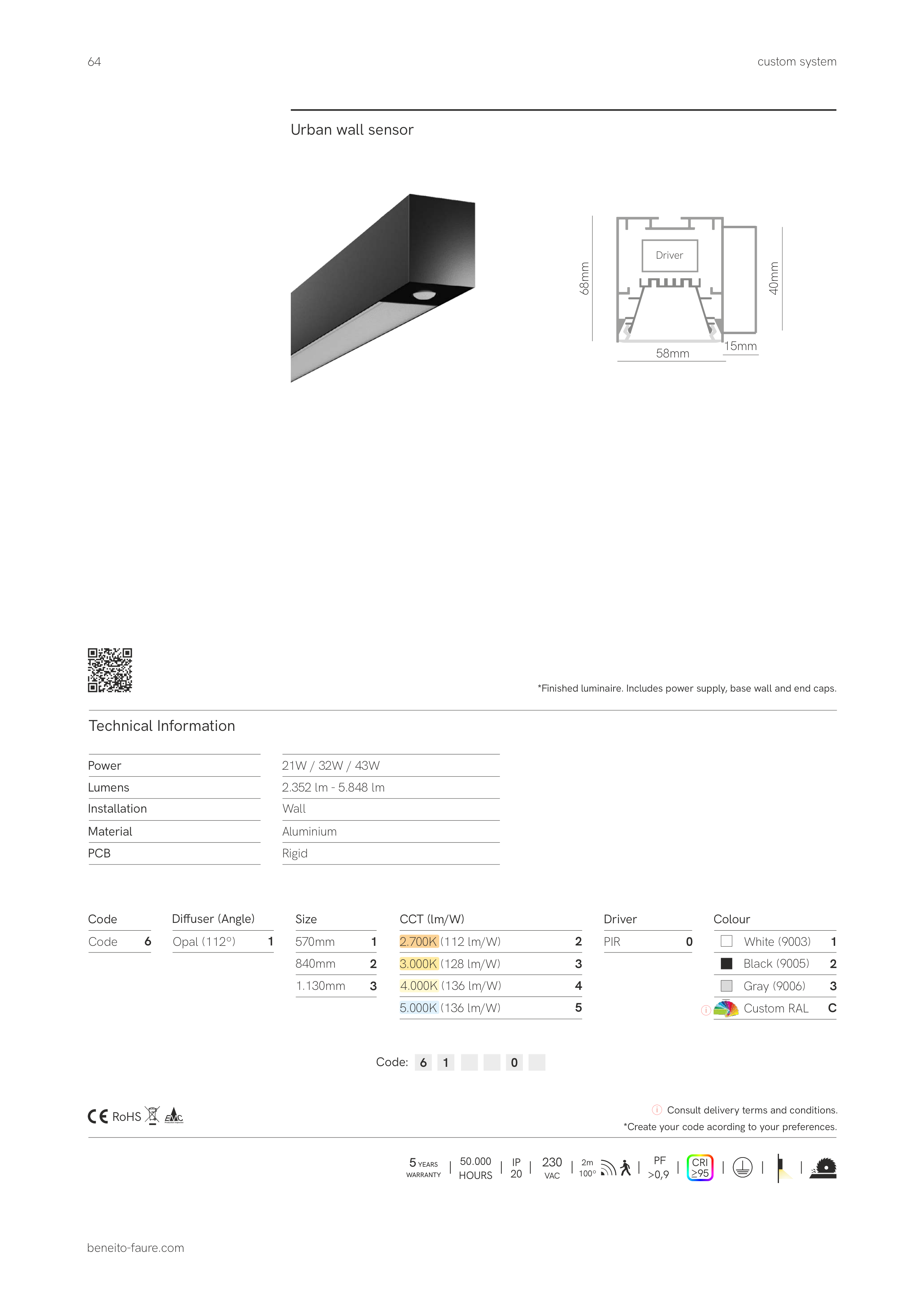

Urban wall sensor
58mm
68mm
Driver
*Create your code acording to your preferences.
RoHS
Code:
Code
Installation
Lumens
Material
Wall
2.352 lm - 5.848 lm
Aluminium
Technical Information
PIR
2.700K (112 lm/W)
3.000K (128 lm/W)
4.000K (136 lm/W)
5.000K (136 lm/W)
570mm
840mm
Opal (112º)
6
1
2
3
4
5
1
2
0
*Finished luminaire. Includes power supply, base wall and end caps.
Colour
Driver
CCT (lm/W)
Size
Di�user (Angle)
Code
1.130mm
3
6
0
5 YEARS
WARRANTY
50.000
HOURS
PF
>0,9
CRI
≥95
IP
20
1
White (9003)
Black (9005)
1
2
Gray (9006)
3
40mm
15mm
230
VAC
i
Custom RAL
i
Consult delivery terms and conditions.
Power
21W / 32W / 43W
C
PCB
Rigid
2m
100º
CUSTOM SYSTEM
