custom system
Installation
Lumens
Recessed
4.830 lm - 14.008 lm
Power
46W / 57W / 69W / 80W / 103W
Material
Aluminium
PCB
Rigid

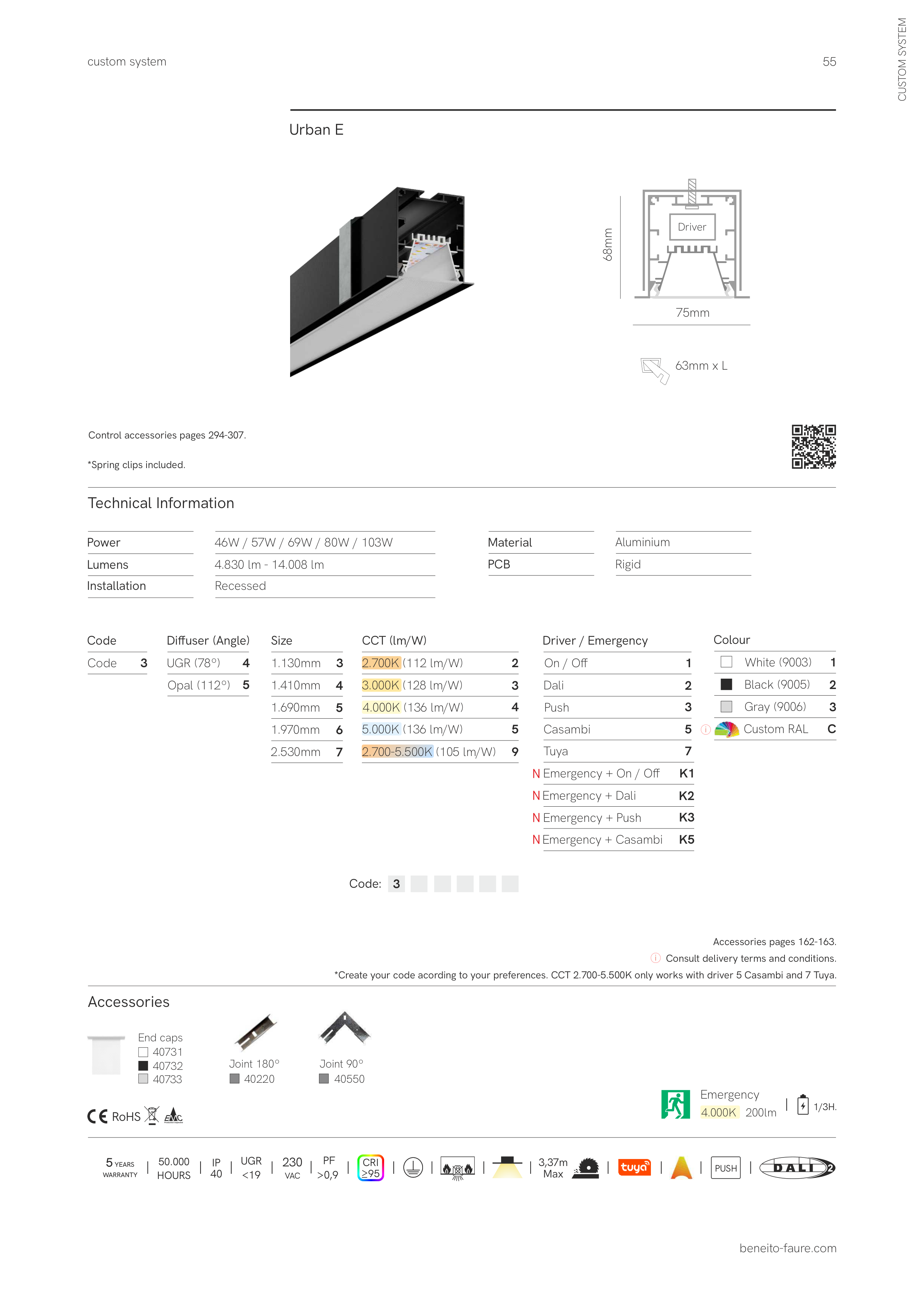

Urban E
RoHS
5 YEARS
WARRANTY
50.000
HOURS
PF
>0,9
CRI
≥95
UGR
<19
IP
40
Technical Information
White (9003)
Black (9005)
1
2
3
Code:
Colour
Driver
75mm
68mm
63mm x L
Gray (9006)
3
230
VAC
*Create your code acording to your preferences. CCT 2.700-5.500K only works with driver 5 Casambi and 7 Tuya.
Accessories
40732
40731
End caps
40550
40220
Joint 180º
Joint 90º
3,37m
Max
40733
*Spring clips included.
PUSH
i
Custom RAL
i
Consult delivery terms and conditions.
C
Control accessories pages 294-307.
Accessories pages 162-163.
On / O�
Dali
Push
Casambi
1
2
3
5
Driver / Emergency
Tuya
7
Code
2.700K (112 lm/W)
3.000K (128 lm/W)
4.000K (136 lm/W)
5.000K (136 lm/W)
1.130mm
1.410mm
UGR (78º)
3
4
2
3
4
5
3
4
CCT (lm/W)
Size
Di�user (Angle)
Code
1.690mm
5
Opal (112º)
5
1.970mm
6
2.530mm
7
2.700-5.500K (105 lm/W)
9
Emergency + On / O�
Emergency + Dali
Emergency + Push
Emergency + Casambi
K1
K2
K3
K5
N
N
N
N
1/3H.
4.000K 200lm
Emergency
CUSTOM SYSTEM
