36
37

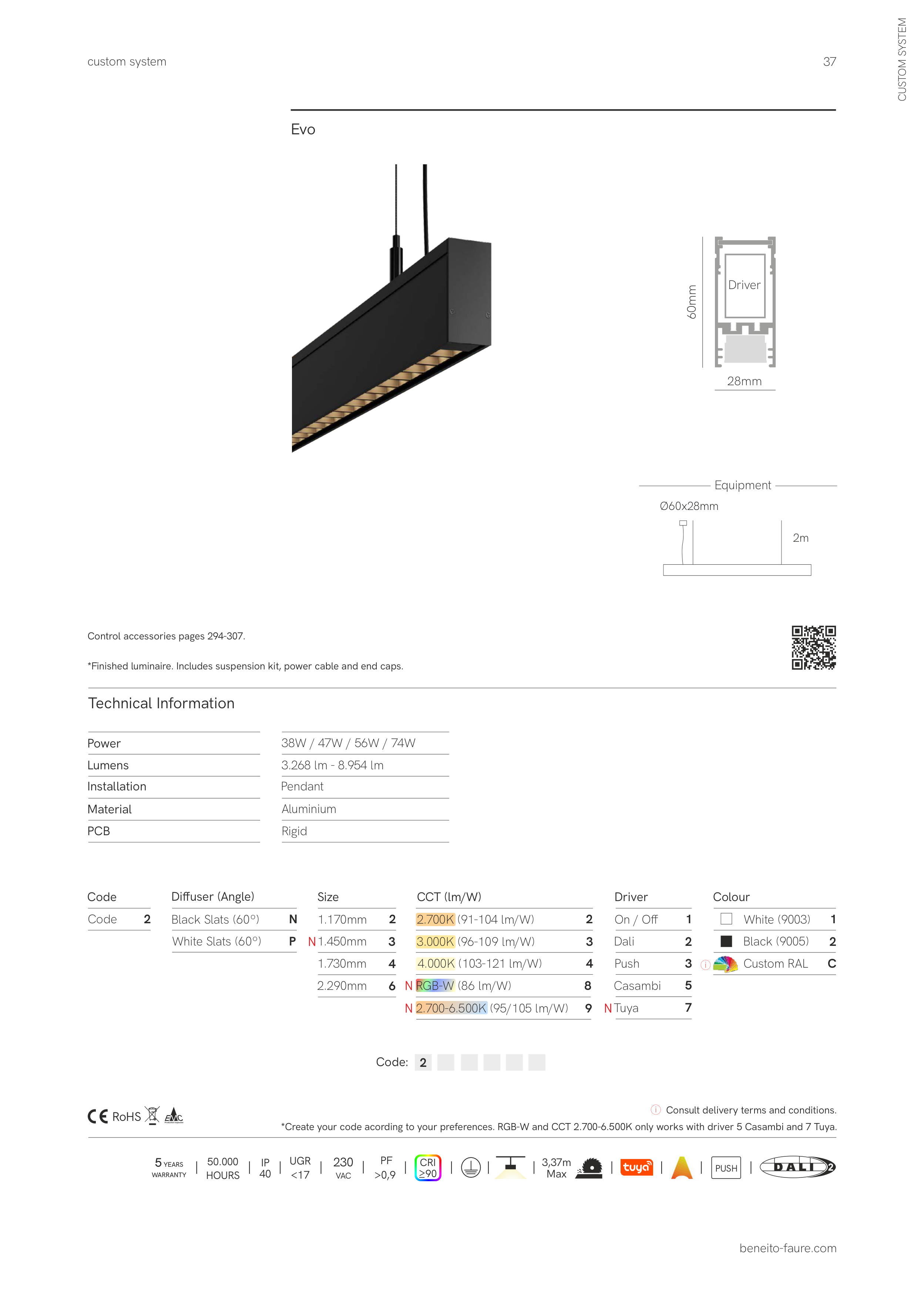

Evo
beneito-faure.com
beneito-faure.com
custom system
RoHS
5 YEARS
WARRANTY
50.000
HOURS
PF
>0,9
CRI
≥90
UGR
<17
IP
40
Code
Installation
Lumens
Material
Pendant
3.268 lm - 8.954 lm
Aluminium
Technical Information
White (9003)
Black (9005)
On / O�
Dali
Push
Casambi
2.700K (91-104 lm/W)
3.000K (96-109 lm/W)
4.000K (103-121 lm/W)
1.170mm
1.730mm
2
N
2
3
4
2
4
1
2
3
5
1
2
2
Code:
Colour
Driver
CCT (lm/W)
Size
Di�user (Angle)
Code
2.290mm
6
P
*Finished luminaire. Includes suspension kit, power cable and end caps.
3,37m
Max
PUSH
230
VAC
i
Custom RAL
Power
38W / 47W / 56W / 74W
i
Consult delivery terms and conditions.
Ø60x28mm
2m
Black Slats (60º)
White Slats (60º)
Equipment
Control accessories pages 294-307.
PCB
Rigid
C
60mm
28mm
Driver
N1.450mm
3
RGB-W (86 lm/W)
8
2.700-6.500K (95/105 lm/W)
9
N
N
Tuya
7
N
*Create your code acording to your preferences. RGB-W and CCT 2.700-6.500K only works with driver 5 Casambi and 7 Tuya.
CUSTOM SYSTEM
