VIDEO
CONTROL
control

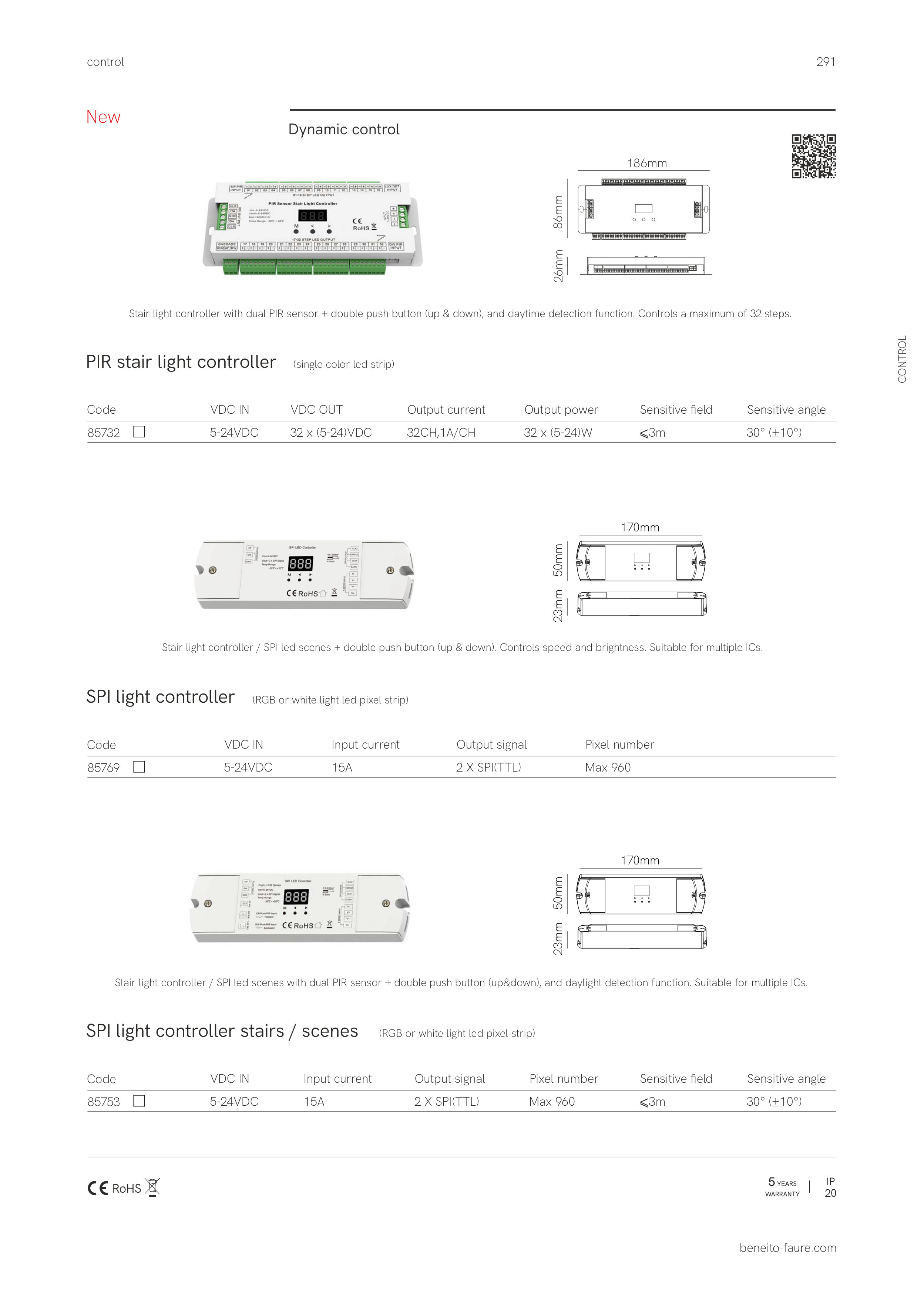

Dynamic control
Stair light controller with dual PIR sensor + double push button (up & down), and daytime detection function. Controls a maximum of 32 steps.
186mm
86mm
26mm
PIR stair light controller
VDC IN
5-24VDC
Code
85732
New
VDC OUT
32 x (5-24)VDC
Output current
32CH,1A/CH
Output power
32 x (5-24)W
Sensitive field
⩽3m
Sensitive angle
30° (±10°)
5 YEARS
WARRANTY
RoHS
IP
20
Stair light controller / SPI led scenes + double push button (up & down). Controls speed and brightness. Suitable for multiple ICs.
SPI light controller
VDC IN
5-24VDC
Code
85769
Input current
15A
Output signal
2 X SPI(TTL)
Pixel number
Max 960
23mm
170mm
50mm
(single color led strip)
(RGB or white light led pixel strip)
Stair light controller / SPI led scenes with dual PIR sensor + double push button (up&down), and daylight detection function. Suitable for multiple ICs.
SPI light controller stairs / scenes
5-24VDC
VDC IN
85753
Code
15A
Input current
2 X SPI(TTL)
Output signal
Max 960
Pixel number
(RGB or white light led pixel strip)
Sensitive field
⩽3m
Sensitive angle
30° (±10°)
23mm
170mm
50mm
