124
125
beneito-faure.com

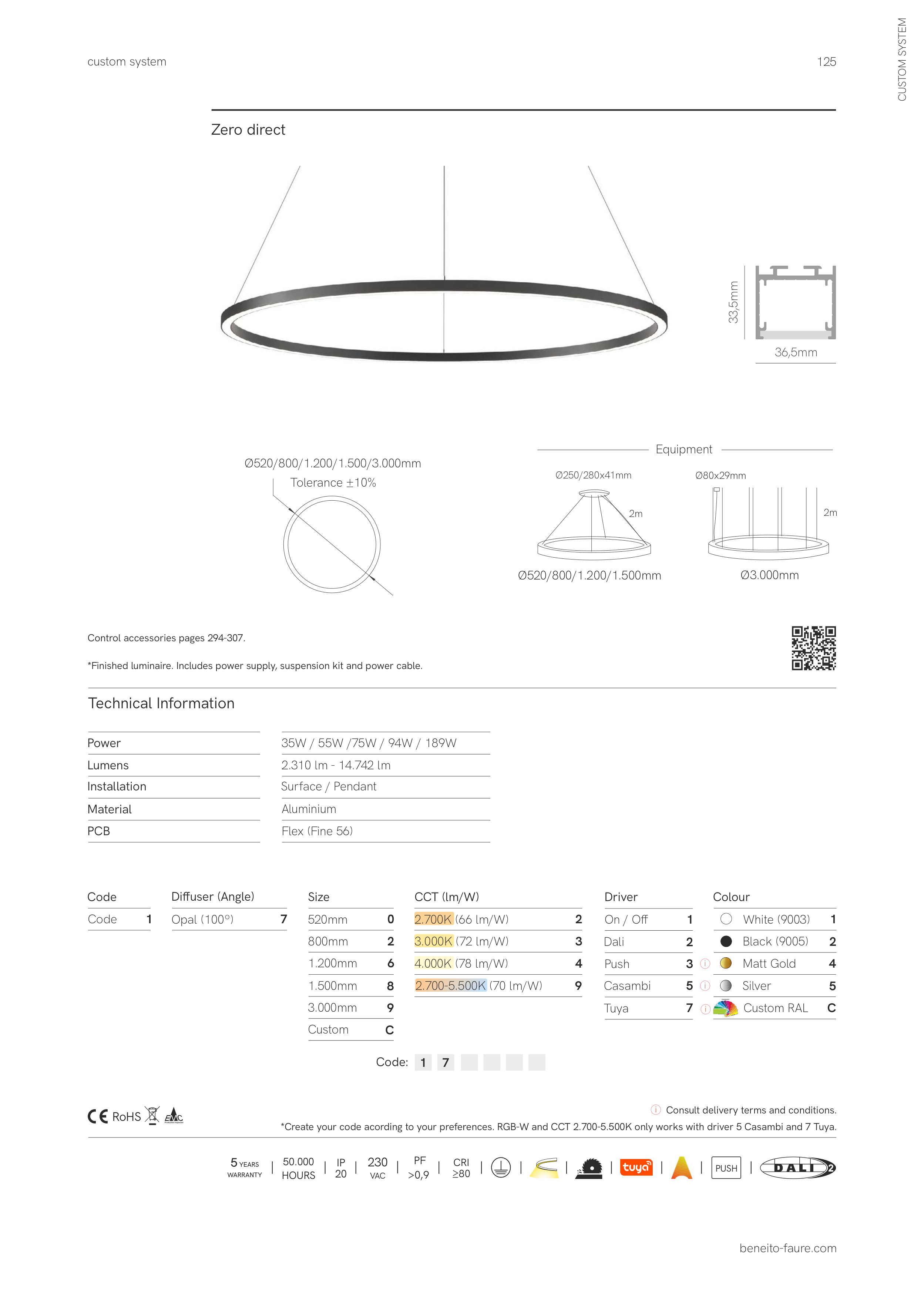

Zero direct
RoHS
5 YEARS
WARRANTY
50.000
HOURS
PF
>0,9
CRI
≥80
beneito-faure.com
IP
20
Code
Installation
Lumens
Material
Surface / Pendant
2.310 lm - 14.742 lm
Aluminium
Technical Information
White (9003)
Black (9005)
3.000K (72 lm/W)
4.000K (78 lm/W)
1.200mm
Opal (100º)
1
7
3
4
6
1
2
1
Code:
Colour
CCT (lm/W)
Size
Di�user (Angle)
Code
*Finished luminaire. Includes power supply, suspension kit and power cable.
7
Ø520/800/1.200/1.500/3.000mm
Equipment
2m
Ø520/800/1.200/1.500mm
2m
Ø80x29mm
Ø3.000mm
PUSH
2.700K (66 lm/W)
2
Matt Gold
Silver
4
5
230
VAC
Ø250/280x41mm
i
i
i
Custom RAL
i
Consult delivery terms and conditions.
Power
35W / 55W /75W / 94W / 189W
800mm
2
1.500mm
8
3.000mm
9
Connecta Fisioteràpia i Salut, Barcelona (Spain).
C
PCB
Flex (Fine 56)
2.700-5.500K (70 lm/W)
9
*Create your code acording to your preferences. RGB-W and CCT 2.700-5.500K only works with driver 5 Casambi and 7 Tuya.
Control accessories pages 294-307.
520mm
0
Custom
C
custom system
On / O�
Dali
Push
Casambi
1
2
3
5
Driver
Tuya
7
36,5mm
33,5mm
Tolerance ±10%
CUSTOM SYSTEM
