56
57

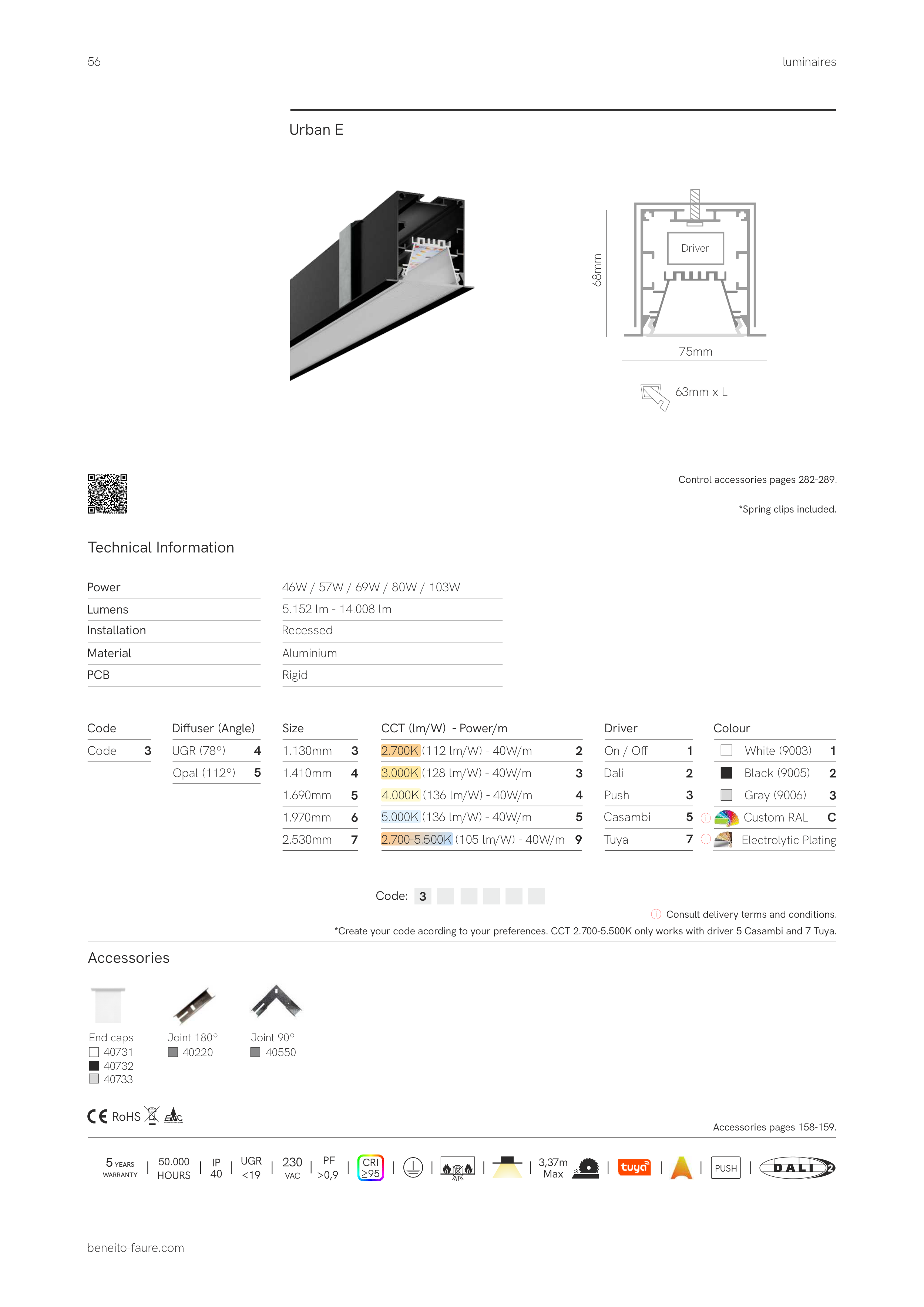

Urban E
RoHS
5 YEARS
WARRANTY
50.000
HOURS
PF
>0,9
CRI
≥95
UGR
<19
IP
40
Code
Installation
Lumens
Material
Recessed
5.152 lm - 14.008 lm
Aluminium
Technical Information
White (9003)
Black (9005)
1.130mm
1.410mm
UGR (78º)
3
4
3
4
1
2
3
Code:
Colour
Size
Di�user (Angle)
Code
1.690mm
5
Opal (112º)
5
1.970mm
6
2.530mm
7
Driver
75mm
68mm
63mm x L
Gray (9006)
3
230
VAC
beneito-faure.com
luminaires
*Create your code acording to your preferences. CCT 2.700-5.500K only works with driver 5 Casambi and 7 Tuya.
Accessories
40732
40731
End caps
40550
40220
Joint 180º
Joint 90º
3,37m
Max
40733
*Spring clips included.
PUSH
beneito-faure.com
On / O�
Dali
Push
Casambi
2.700K (112 lm/W) - 40W/m
3.000K (128 lm/W) - 40W/m
4.000K (136 lm/W) - 40W/m
5.000K (136 lm/W) - 40W/m
2
3
4
5
1
2
3
5
Driver
CCT (lm/W) - Power/m
2.700-5.500K (105 lm/W) - 40W/m
9
Tuya
7
i
Custom RAL
i
Consult delivery terms and conditions.
46W / 57W / 69W / 80W / 103W
C
PCB
Rigid
Electrolytic Plating
i
Control accessories pages 282-289.
Power
Accessories pages 158-159.
