89
EXTERIOR LIGHTING
WALL LIGHT - Recessed
code: 8011.XXX.X
code: 8060.XXX.XX
To use with a standard box (depth minimum 50 mm)
Led driver AC/CC 350mA
Led driver DC/CC (12-36VDC/350mA)
ACCESSORIES
Body made in solid aluminum
Degree of protection IP65 - IK07
Safety sandblasted plexiglass
IK09 only for model C/D/E/F
Led 350mA CRI>90 3SDCM 85.000hrs L80 B10
Provided with 20cm cable
Coverplate with thickness 7mm or 9mm
DESCRIPTION
Other RAL colors
Other anodized color
Other material: brass / copper / ...
Other led color: 3000K / 5000K
ON REQUEST

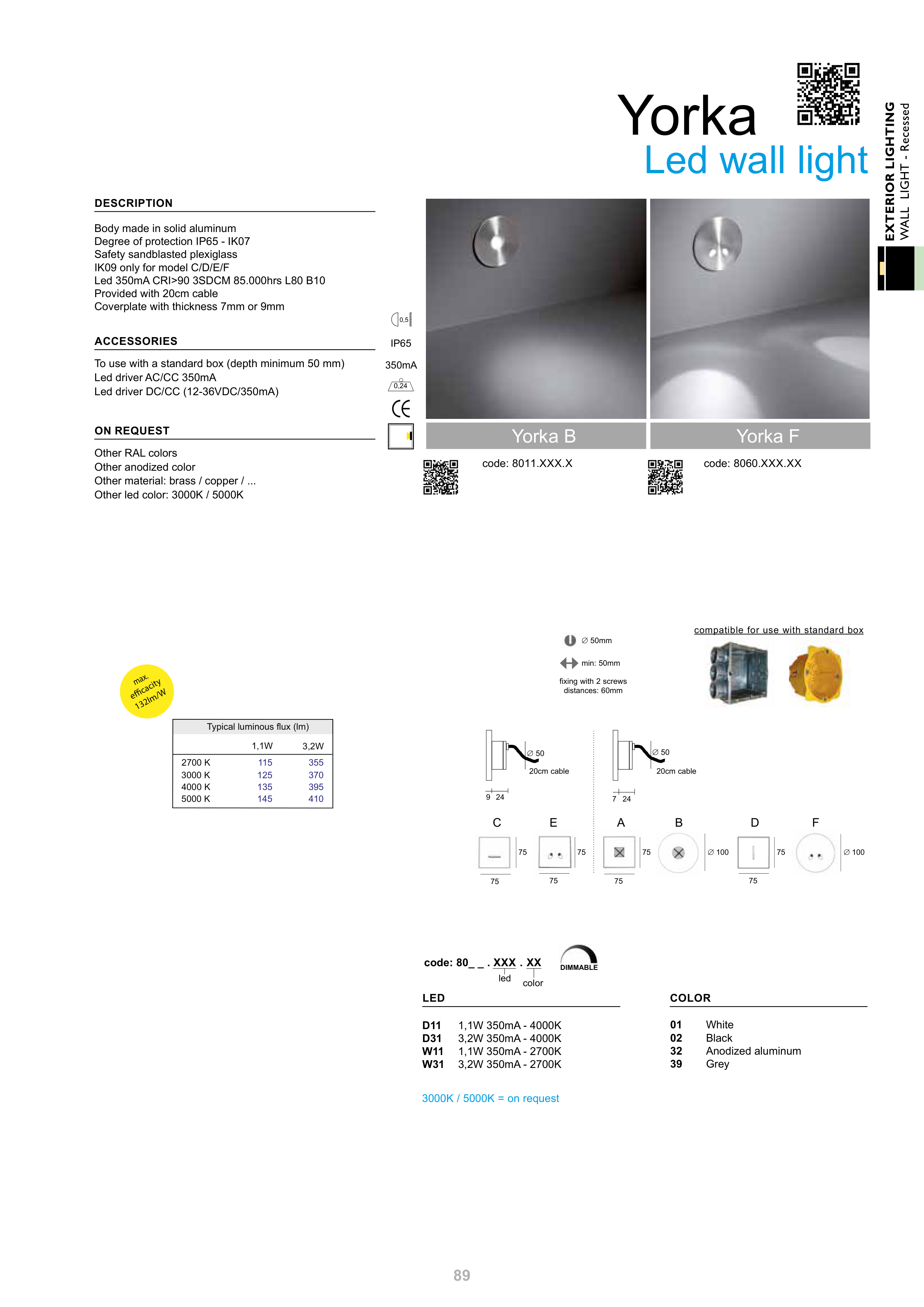

Yorka
Led wall light
compatible for use with standard box
∅ 50mm
min: 50mm
fixing with 2 screws
distances: 60mm
F
∅ 100
B
∅ 100
C
75
75
D
75
75
E
75
75
A
75
75
7
24
∅ 50
∅ 50
9 24
20cm cable
20cm cable
2700 K
Typical luminous flux (lm)
1,1W
3,2W
115
395
370
355
3000 K
410
5000 K
145
4000 K
efcacity
132lm/W
max.
125
135
Typical luminous flux (lm)
code: 80_ _ . XXX . XX
color
led
D11
1,1W 350mA - 4000K
D31
3,2W 350mA - 4000K
W11
1,1W 350mA - 2700K
W31
3,2W 350mA - 2700K
LED
01
White
02
Black
32
Anodized aluminum
39
Grey
COLOR
3000K / 5000K = on request
0,5
IP65
350mA
0,24
DIMMABLE
Yorka B
Yorka F
