WWW.BEL-LIGHTING.COM
50
GU
GU10 LED (max. height 60mm)
BULB
01
White
02A
Anodized black
32
Anodized aluminum
34
Anodized matt gold
COLOR
DIMMABLE
code: 412. GU . XX
color
∅ min: 75mm
min: 85mm
230V
GU10

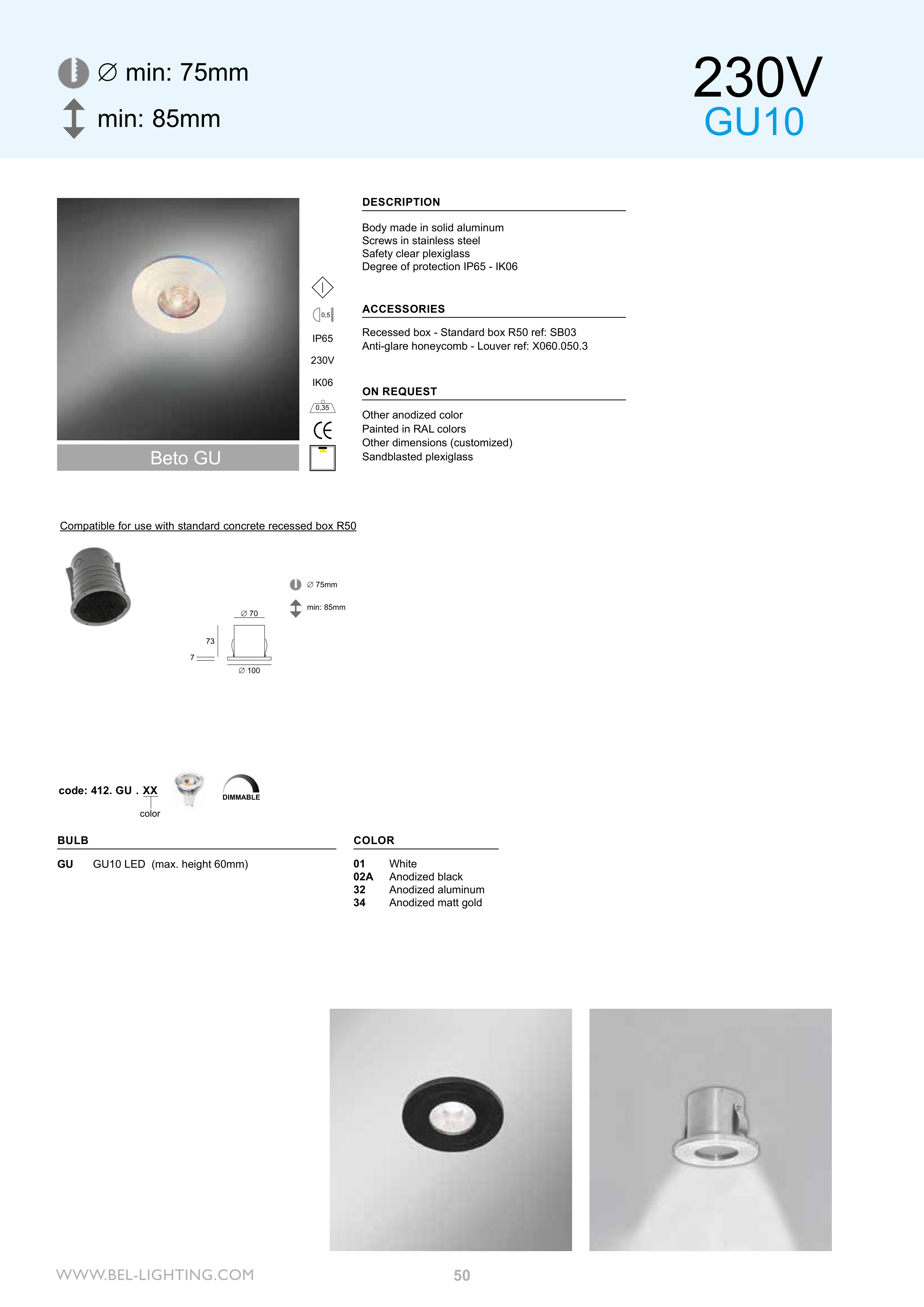

Beto GU
Recessed box - Standard box R50 ref: SB03
Anti-glare honeycomb - Louver ref: X060.050.3
ACCESSORIES
Body made in solid aluminum
Screws in stainless steel
Safety clear plexiglass
Degree of protection IP65 - IK06
DESCRIPTION
Other anodized color
Painted in RAL colors
Other dimensions (customized)
Sandblasted plexiglass
ON REQUEST
0,5
IP65
230V
IK06
0,35
∅ 75mm
min: 85mm
∅ 100
∅ 70
73
7
Compatible for use with standard concrete recessed box R50
