413
EXTERIOR LIGHTING
FLOOR UPLIGHTING - Recessed
Recessed box - Pop 10a/10b ref: X054A / X054B
Led driver AC/CC 350mA
Led driver DC/CC (12-36VDC/350mA)
Anti-glare honeycomb - Louver ref: X060.021.3
Asymmetrical beam - visor HC ref: X061.022.2
IP68 connection - Connex 2 / 3 / 4
ACCESSORIES
Body made in solid anodized aluminum
Cover plate 4mm in stainless steel 316L
Screws and spring in stainless steel
Safety extra clear or sandblasted glass 10mm thickness
Led 350mA CRI>90 3SDCM 85.000hrs L80 B10
Max. 2140kg (21000 N)
Degree of protection IP67 - IK10
Provided with 1m cable
DESCRIPTION
Other cover plate dimensions (customized)
Anodized color cover plate
Cover plate in brushed brass (07)
Other led color: 3000K / 5000K
Other cable length (customized)
ON REQUEST

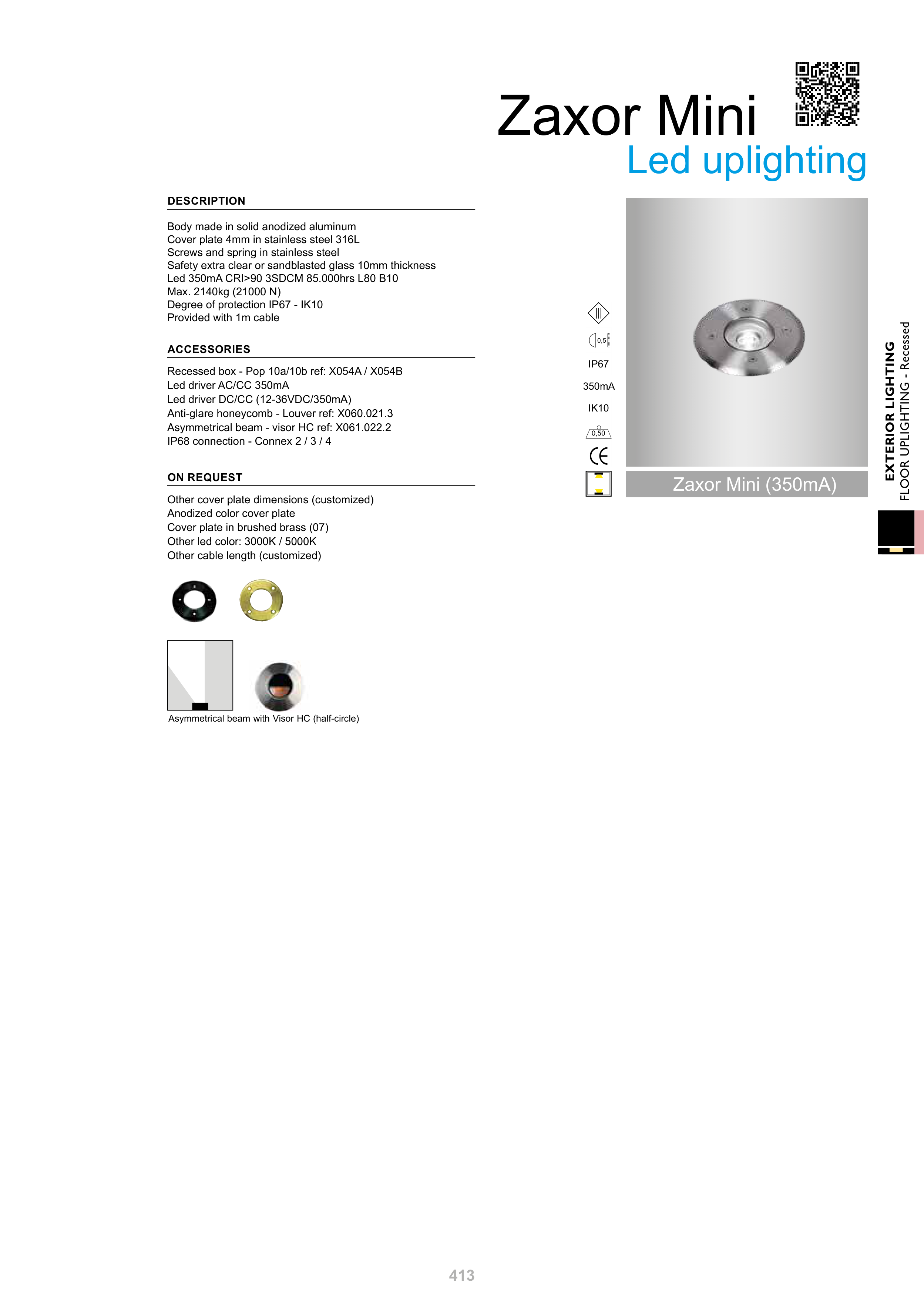

Zaxor Mini
Led uplighting
0,5
IP67
350mA
IK10
0,50
Zaxor Mini (350mA)
Asymmetrical beam with Visor HC (half-circle)
