WWW.BEL-LIGHTING.COM
336
230V
6W - 17W

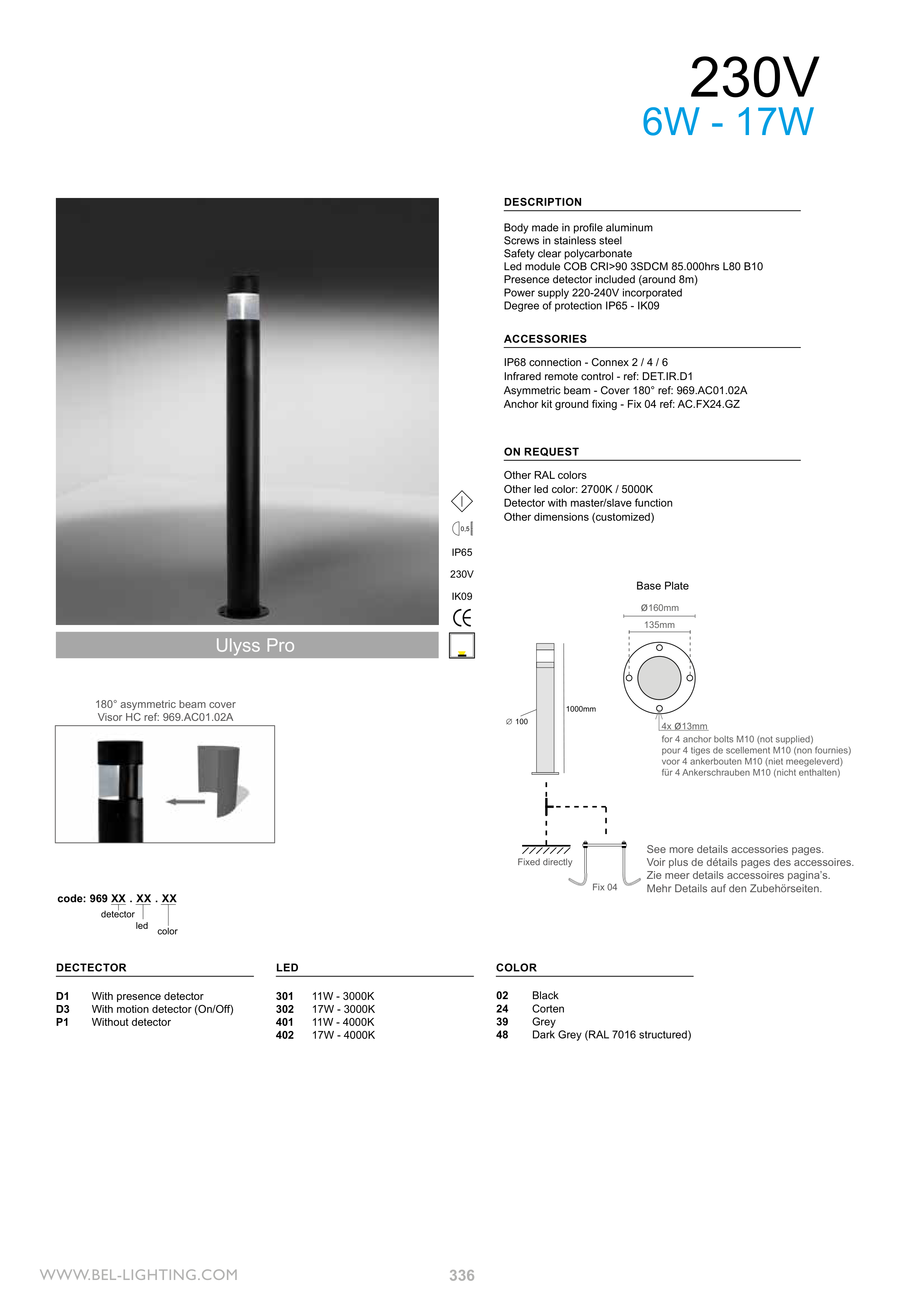

Ulyss Pro
IP68 connection - Connex 2 / 4 / 6
Infrared remote control - ref: DET.IR.D1
Asymmetric beam - Cover 180° ref: 969.AC01.02A
Anchor kit ground fixing - Fix 04 ref: AC.FX24.GZ
ACCESSORIES
Body made in profile aluminum
Screws in stainless steel
Safety clear polycarbonate
Led module COB CRI>90 3SDCM 85.000hrs L80 B10
Presence detector included (around 8m)
Power supply 220-240V incorporated
Degree of protection IP65 - IK09
DESCRIPTION
Other RAL colors
Other led color: 2700K / 5000K
Detector with master/slave function
Other dimensions (customized)
ON REQUEST
0,5
IP65
230V
IK09
301
11W - 3000K
302
17W - 3000K
401
11W - 4000K
402
17W - 4000K
LED
D1
With presence detector
D3
With motion detector (On/Off)
P1
Without detector
DECTECTOR
02
Black
24
Corten
39
Grey
48
Dark Grey (RAL 7016 structured)
COLOR
See more details accessories pages.
Voir plus de détails pages des accessoires.
Zie meer details accessoires pagina’s.
Mehr Details auf den Zubehörseiten.
Fix 04
Fixed directly
180° asymmetric beam cover
Visor HC ref: 969.AC01.02A
code: 969 XX . XX . XX
color
detector
led
1000mm
∅ 100
Base Plate
ø160mm
135mm
4x ø13mm
for 4 anchor bolts M10 (not supplied)
pour 4 tiges de scellement M10 (non fournies)
voor 4 ankerbouten M10 (niet meegeleverd)
für 4 Ankerschrauben M10 (nicht enthalten)
