308
2,10
5,30
3,70
9,60
Weight (kg)
1000mm
500mm
02,24,39,48
40
code: 8037. X XXX . XX
color
height
led
D37
6W - 4000K
W37
6W - 2700K
LED
2
500 mm
3
1000 mm
HEIGHT
02
Black
24
Corten
39
Grey
40
Rusty Iron
48
Dark Grey (RAL 7016 structured)
COLOR
*do not use version rusty iron on tiling, paving, wood, ...

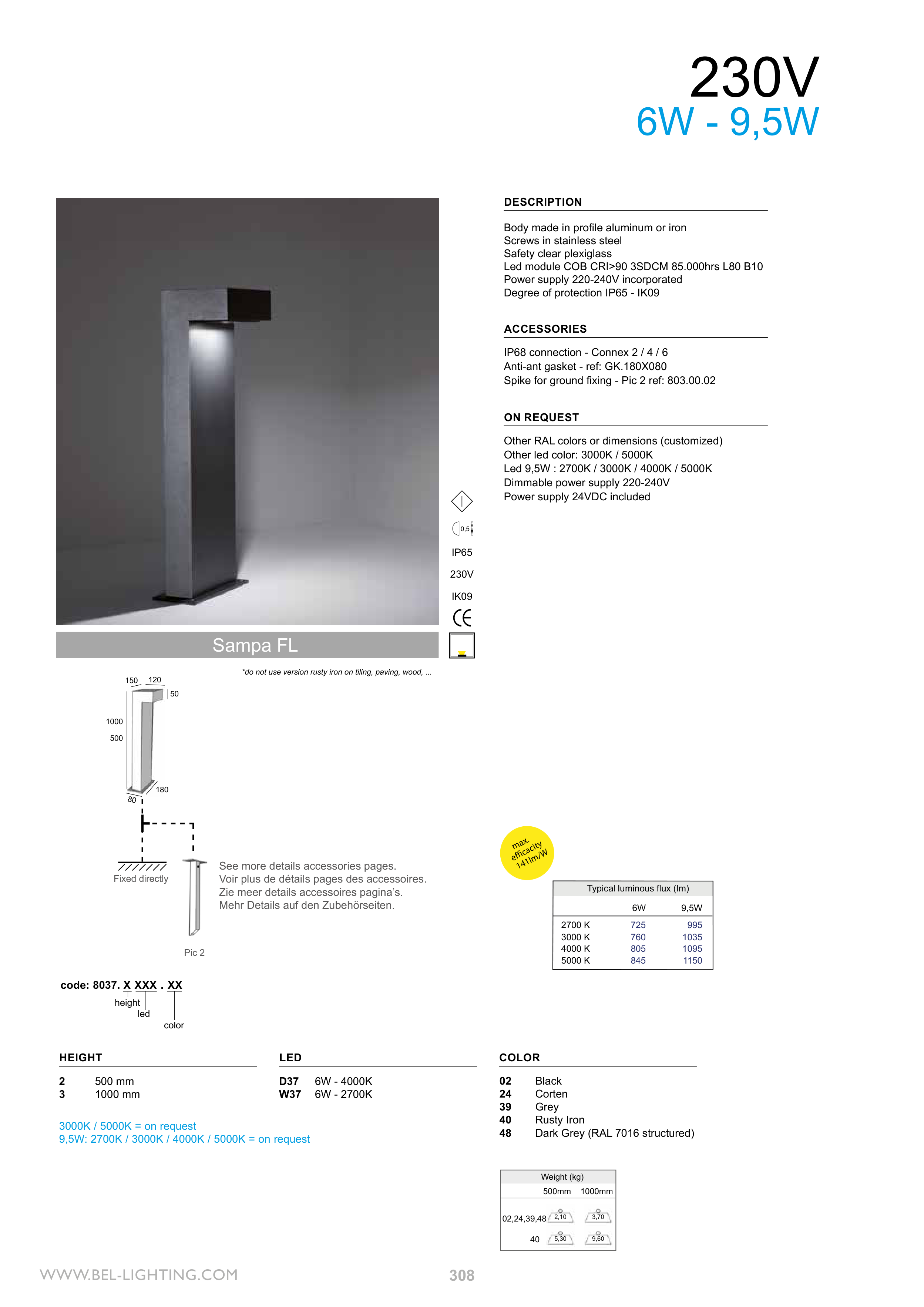

Sampa FL
IP68 connection - Connex 2 / 4 / 6
Anti-ant gasket - ref: GK.180X080
Spike for ground fixing - Pic 2 ref: 803.00.02
ACCESSORIES
Body made in profile aluminum or iron
Screws in stainless steel
Safety clear plexiglass
Led module COB CRI>90 3SDCM 85.000hrs L80 B10
Power supply 220-240V incorporated
Degree of protection IP65 - IK09
DESCRIPTION
Other RAL colors or dimensions (customized)
Other led color: 3000K / 5000K
Led 9,5W : 2700K / 3000K / 4000K / 5000K
Dimmable power supply 220-240V
Power supply 24VDC included
ON REQUEST
0,5
IP65
230V
IK09
3000K / 5000K = on request
9,5W: 2700K / 3000K / 4000K / 5000K = on request
2700 K
Typical luminous flux (lm)
6W
805
760
725
3000 K
845
9,5W
1095
1035
995
1150
5000 K
4000 K
efcacity
141lm/W
max.
Typical luminous flux (lm)
230V
6W - 9,5W
180
80
120
50
150
500
1000
See more details accessories pages.
Voir plus de détails pages des accessoires.
Zie meer details accessoires pagina’s.
Mehr Details auf den Zubehörseiten.
Pic 2
Fixed directly
