WWW.BEL-LIGHTING.COM
302
600
180x80
150x50mm
210
code: 8064. XX . XX
color
led
D1
9,5W - 4000K
D2
19W - 4000K (2x 9,5W)
W1
9,5W - 2700K
W2
19W - 2700K (2x 9,5W)
LED
02
Black
39
Grey
40
Rusty Iron
48
Dark Grey (RAL 7016 structured)
COLOR
2700 K
Typical luminous flux (lm)
3000 K
9,5W
1095
1035
995
1150
19W
2190
2070
1990
2300
5000 K
4000 K
efcacity
121lm/W
max.
Typical luminous flux (lm)
See more details accessories pages.
Voir plus de détails pages des accessoires.
Zie meer details accessoires pagina’s.
Mehr Details auf den Zubehörseiten.
Pic 2
Fixed directly
*do not use version rusty iron on tiling, paving, wood, ...

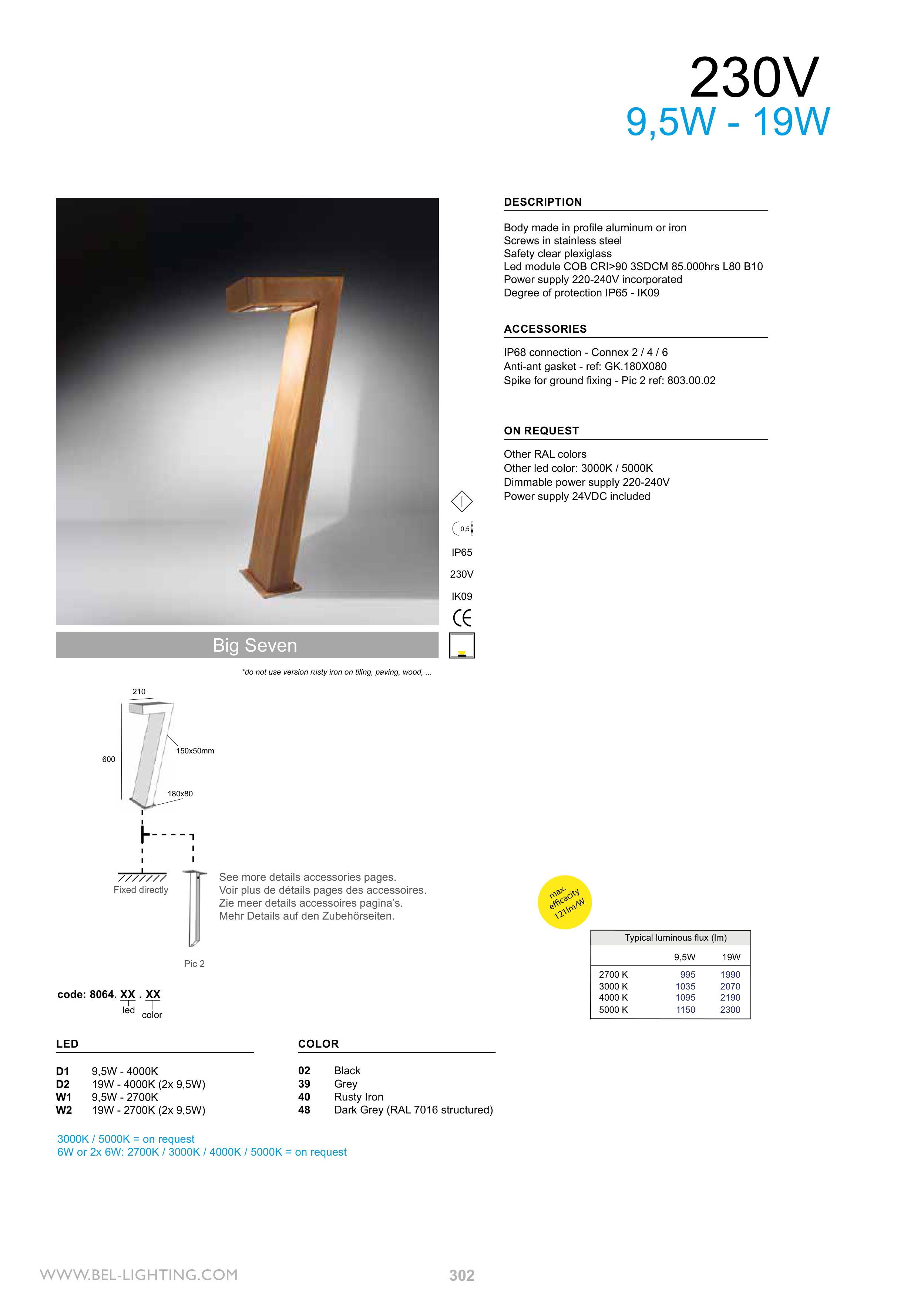

Big Seven
IP68 connection - Connex 2 / 4 / 6
Anti-ant gasket - ref: GK.180X080
Spike for ground fixing - Pic 2 ref: 803.00.02
ACCESSORIES
Body made in profile aluminum or iron
Screws in stainless steel
Safety clear plexiglass
Led module COB CRI>90 3SDCM 85.000hrs L80 B10
Power supply 220-240V incorporated
Degree of protection IP65 - IK09
DESCRIPTION
Other RAL colors
Other led color: 3000K / 5000K
Dimmable power supply 220-240V
Power supply 24VDC included
ON REQUEST
0,5
IP65
230V
IK09
230V
9,5W - 19W
3000K / 5000K = on request
6W or 2x 6W: 2700K / 3000K / 4000K / 5000K = on request
