WWW.BEL-LIGHTING.COM
276

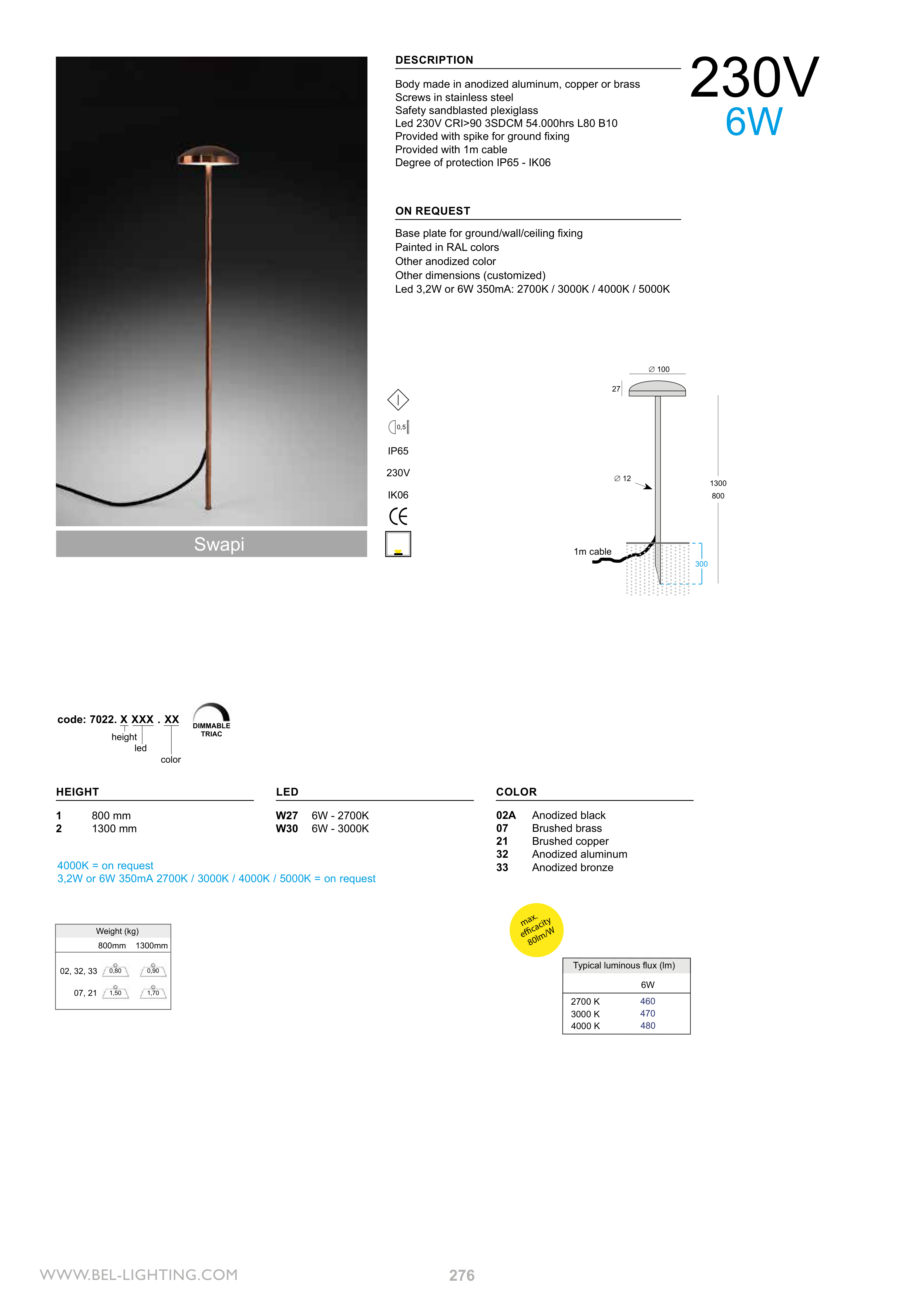

Swapi
0,5
IP65
230V
IK06
code: 7022. X XXX . XX
color
height
led
W27
6W - 2700K
W30
6W - 3000K
LED
1
800 mm
2
1300 mm
HEIGHT
02A
Anodized black
07
Brushed brass
21
Brushed copper
32
Anodized aluminum
33
Anodized bronze
COLOR
Body made in anodized aluminum, copper or brass
Screws in stainless steel
Safety sandblasted plexiglass
Led 230V CRI>90 3SDCM 54.000hrs L80 B10
Provided with spike for ground fixing
Provided with 1m cable
Degree of protection IP65 - IK06
DESCRIPTION
Base plate for ground/wall/ceiling fixing
Painted in RAL colors
Other anodized color
Other dimensions (customized)
Led 3,2W or 6W 350mA: 2700K / 3000K / 4000K / 5000K
ON REQUEST
Typical luminous flux (lm)
6W
460
2700 K
efcacity
80lm/W
Typical luminous flux (lm)
max.
470
3000 K
480
4000 K
0,80
1,50
0,90
1,70
Weight (kg)
1300mm
800mm
02, 32, 33
07, 21
230V
6W
DIMMABLE
TRIAC
4000K = on request
3,2W or 6W 350mA 2700K / 3000K / 4000K / 5000K = on request
∅ 100
27
∅ 12
1300
800
1m cable
300
