165
EXTERIOR LIGHTING
WALL LIGHT - Surface

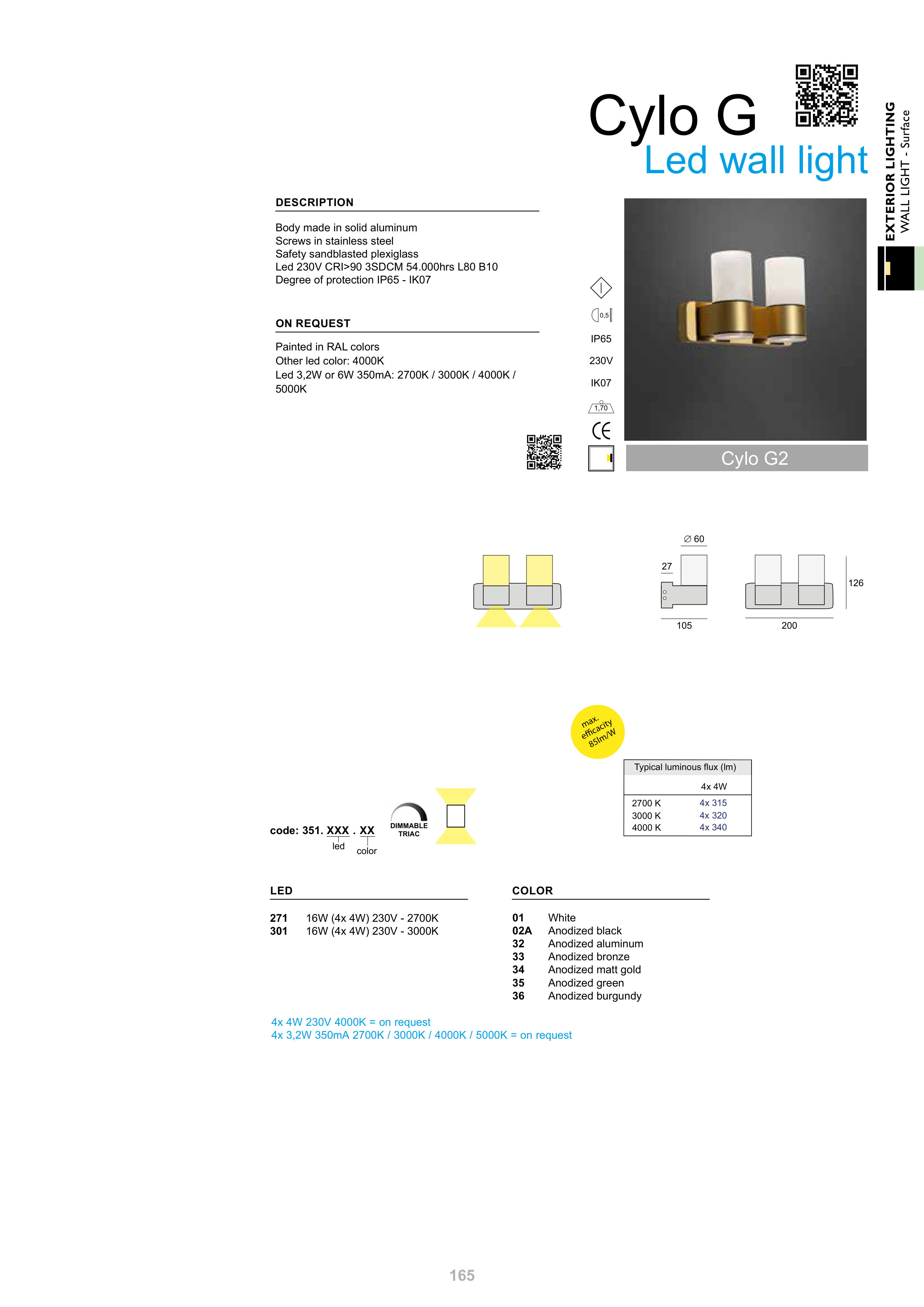

Cylo G
Led wall light
200
126
∅ 60
105
27
Cylo G2
Body made in solid aluminum
Screws in stainless steel
Safety sandblasted plexiglass
Led 230V CRI>90 3SDCM 54.000hrs L80 B10
Degree of protection IP65 - IK07
DESCRIPTION
Painted in RAL colors
Other led color: 4000K
Led 3,2W or 6W 350mA: 2700K / 3000K / 4000K /
5000K
ON REQUEST
0,5
IP65
230V
IK07
1,70
code: 351. XXX . XX
color
led
271
16W (4x 4W) 230V - 2700K
301
16W (4x 4W) 230V - 3000K
LED
01
White
02A
Anodized black
32
Anodized aluminum
33
Anodized bronze
34
Anodized matt gold
35
Anodized green
36
Anodized burgundy
COLOR
Typical luminous flux (lm)
4x 4W
4x 315
2700 K
efcacity
85lm/W
Typical luminous flux (lm)
max.
4x 320
3000 K
4x 340
4000 K
4x 4W 230V 4000K = on request
4x 3,2W 350mA 2700K / 3000K / 4000K / 5000K = on request
DIMMABLE
TRIAC
