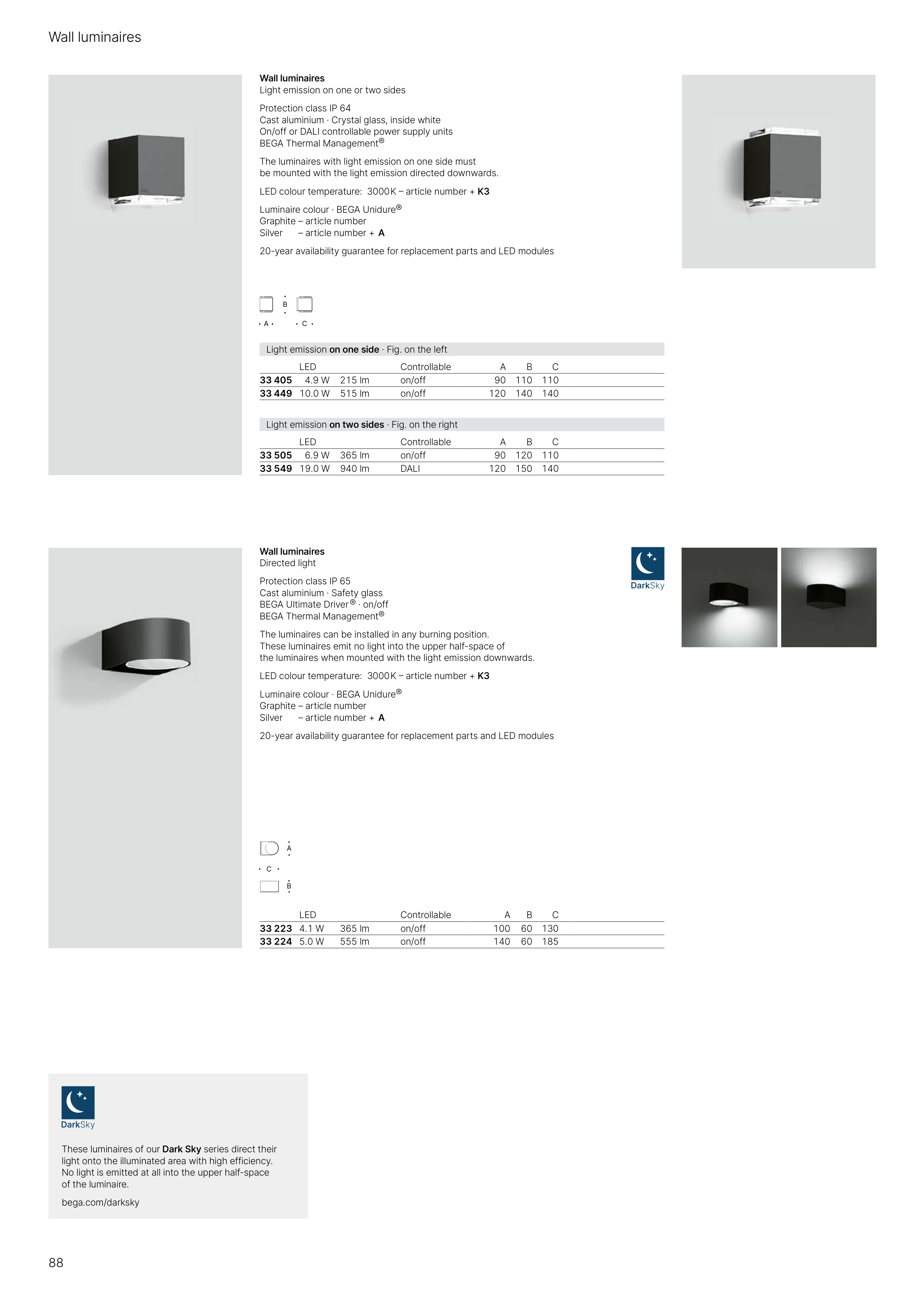

DarkSky
DarkSky
C
A
B
C
A
B
A
C
B
Wall luminaires
Wall luminaires
Light emission on one or two sides
Protection class IP 64
Cast aluminium · Crystal glass, inside white
On/off or DALI controllable power supply units
BEGA Thermal Management®
The luminaires with light emission on one side must
be mounted with the light emission directed downwards.
LED colour temperature: 3000 K – article number + K3
Luminaire colour · BEGA Unidure®
Graphite – article number
Silver
– article number + A
20-year availability guarantee for replacement parts and LED modules
Wall luminaires
Directed light
Protection class IP 65
Cast aluminium · Safety glass
BEGA Ultimate Driver ® · on/off
BEGA Thermal Management®
The luminaires can be installed in any burning position.
These luminaires emit no light into the upper half-space of
the luminaires when mounted with the light emission downwards.
LED colour temperature: 3000 K – article number + K3
Luminaire colour · BEGA Unidure®
Graphite – article number
Silver
– article number + A
20-year availability guarantee for replacement parts and LED modules
Light emission on one side · Fig. on the left
LED
Controllable
A
B
C
33 405 4.9 W
215 lm
on/off
90
110
110
33 449 10.0 W
515 lm
on/off
120
140
140
Light emission on two sides · Fig. on the right
LED
Controllable
A
B
C
33 505 6.9 W
365 lm
on/off
90
120
110
33 549 19.0 W
940 lm
DALI
120
150
140
LED
Controllable
A
B
C
33 223 4.1 W
365 lm
on/off
100
60
130
33 224 5.0 W
555 lm
on/off
140
60
185
These luminaires of our Dark Sky series direct their
light onto the illuminated area with high efficiency.
No light is emitted at all into the upper half-space
of the luminaire.
bega.com/darksky
88
