A
C
B
520
1015
1505
Please refer to the technical planning data for planning and installation. The current values for LED service life, luminous flux,
maximum ambient temperature and information about the use of BEGA Thermal Management ® are readily available in the
instructions for use and data sheets on our website.

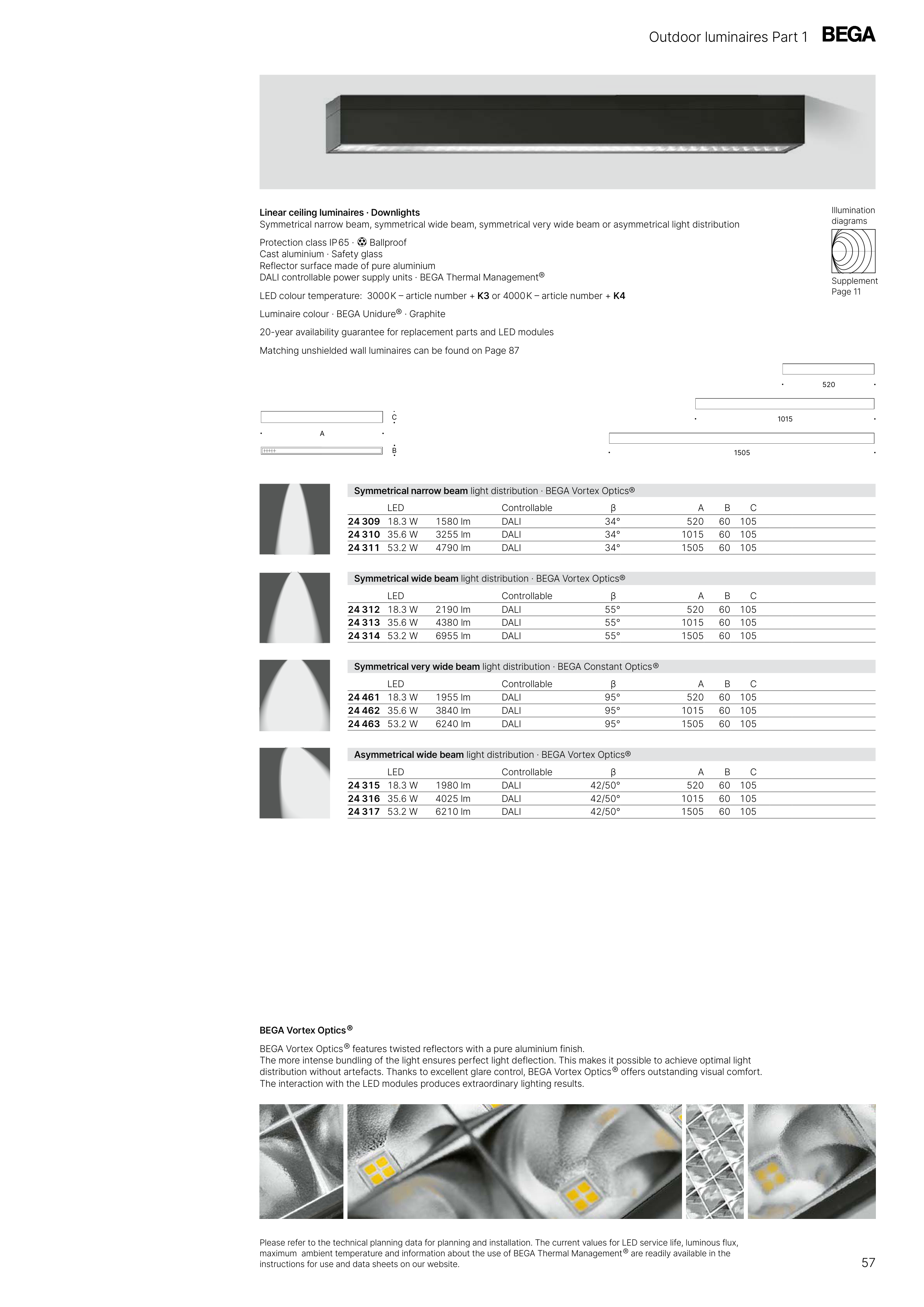

Outdoor luminaires Part 1
Symmetrical narrow beam light distribution · BEGA Vortex Optics®
LED
Controllable
β
A
B
C
24 309 18.3 W
1580 lm
DALI
34°
520
60
105
24 310 35.6 W
3255 lm
DALI
34°
1015
60
105
24 311 53.2 W
4790 lm
DALI
34°
1505
60
105
Symmetrical wide beam light distribution · BEGA Vortex Optics®
LED
Controllable
β
A
B
C
24 312 18.3 W
2190 lm
DALI
55°
520
60
105
24 313 35.6 W
4380 lm
DALI
55°
1015
60
105
24 314 53.2 W
6955 lm
DALI
55°
1505
60
105
Asymmetrical wide beam light distribution · BEGA Vortex Optics®
LED
Controllable
β
A
B
C
24 315 18.3 W
1980 lm
DALI
42/50°
520
60
105
24 316 35.6 W
4025 lm
DALI
42/50°
1015
60
105
24 317 53.2 W
6210 lm
DALI
42/50°
1505
60
105
Linear ceiling luminaires · Downlights
Symmetrical narrow beam, symmetrical wide beam, symmetrical very wide beam or asymmetrical light distribution
Protection class IP 65 · Ballproof
Cast aluminium · Safety glass
Reflector surface made of pure aluminium
DALI controllable power supply units · BEGA Thermal Management®
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure® · Graphite
20-year availability guarantee for replacement parts and LED modules
Matching unshielded wall luminaires can be found on Page 87
Symmetrical very wide beam light distribution · BEGA Constant Optics ®
LED
Controllable
β
A
B
C
24 461 18.3 W
1955 lm
DALI
95°
520
60
105
24 462 35.6 W
3840 lm
DALI
95°
1015
60
105
24 463 53.2 W
6240 lm
DALI
95°
1505
60
105
BEGA Vortex Optics ®
BEGA Vortex Optics ® features twisted reflectors with a pure aluminium finish.
The more intense bundling of the light ensures perfect light deflection. This makes it possible to achieve optimal light
distribution without artefacts. Thanks to excellent glare control, BEGA Vortex Optics ® offers outstanding visual comfort.
The interaction with the LED modules produces extraordinary lighting results.
Supplement
Page 11
Illumination
diagrams
