Please refer to the technical planning data for planning and installation. The current values for LED service life, luminous flux,
maximum ambient temperature and information about the use of BEGA Thermal Management ® are readily available in the
instructions for use and data sheets on our website.

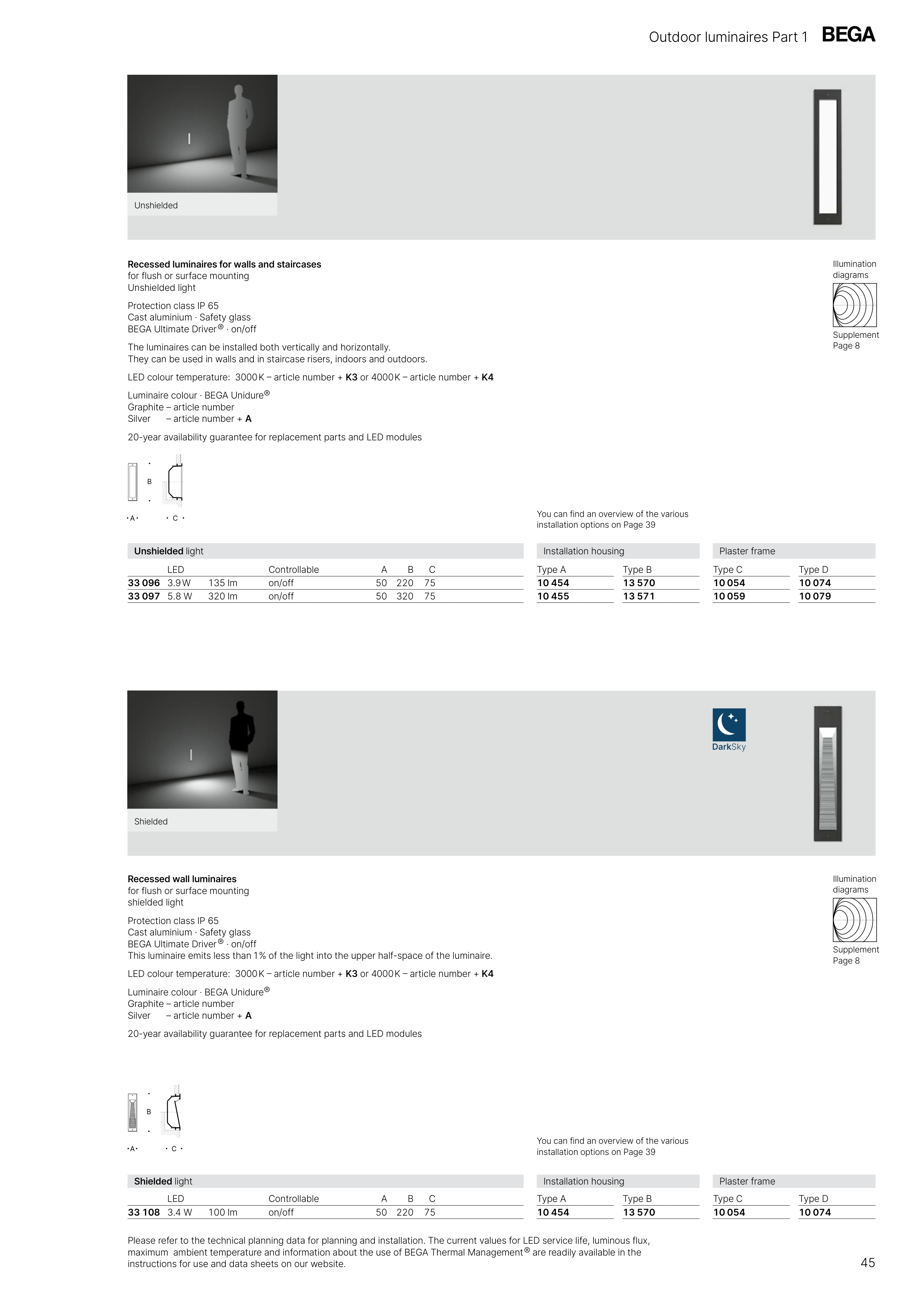

Outdoor luminaires Part 1
Recessed luminaires for walls and staircases
for flush or surface mounting
Unshielded light
Protection class IP 65
Cast aluminium · Safety glass
BEGA Ultimate Driver ® · on/off
The luminaires can be installed both vertically and horizontally.
They can be used in walls and in staircase risers, indoors and outdoors.
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure®
Graphite – article number
Silver
– article number + A
20-year availability guarantee for replacement parts and LED modules
Unshielded
Unshielded light
Installation housing
Plaster frame
LED
Controllable
A
B
C
Type A
Type B
Type C
Type D
33 096 3.9 W
135 lm
on/off
50
220
75
10 454
13 570
10 054
10 074
33 097 5.8 W
320 lm
on/off
50
320
75
10 455
13 571
10 059
10 079
You can find an overview of the various
installation options on Page 39
Shielded
Recessed wall luminaires
for flush or surface mounting
shielded light
Protection class IP 65
Cast aluminium · Safety glass
BEGA Ultimate Driver ® · on/off
This luminaire emits less than 1 % of the light into the upper half-space of the luminaire.
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure®
Graphite – article number
Silver
– article number + A
20-year availability guarantee for replacement parts and LED modules
Shielded light
Installation housing
Plaster frame
LED
Controllable
A
B
C
Type A
Type B
Type C
Type D
33 108 3.4 W
100 lm
on/off
50
220
75
10 454
13 570
10 054
10 074
You can find an overview of the various
installation options on Page 39
Supplement
Page 8
Illumination
diagrams
Supplement
Page 8
Illumination
diagrams
