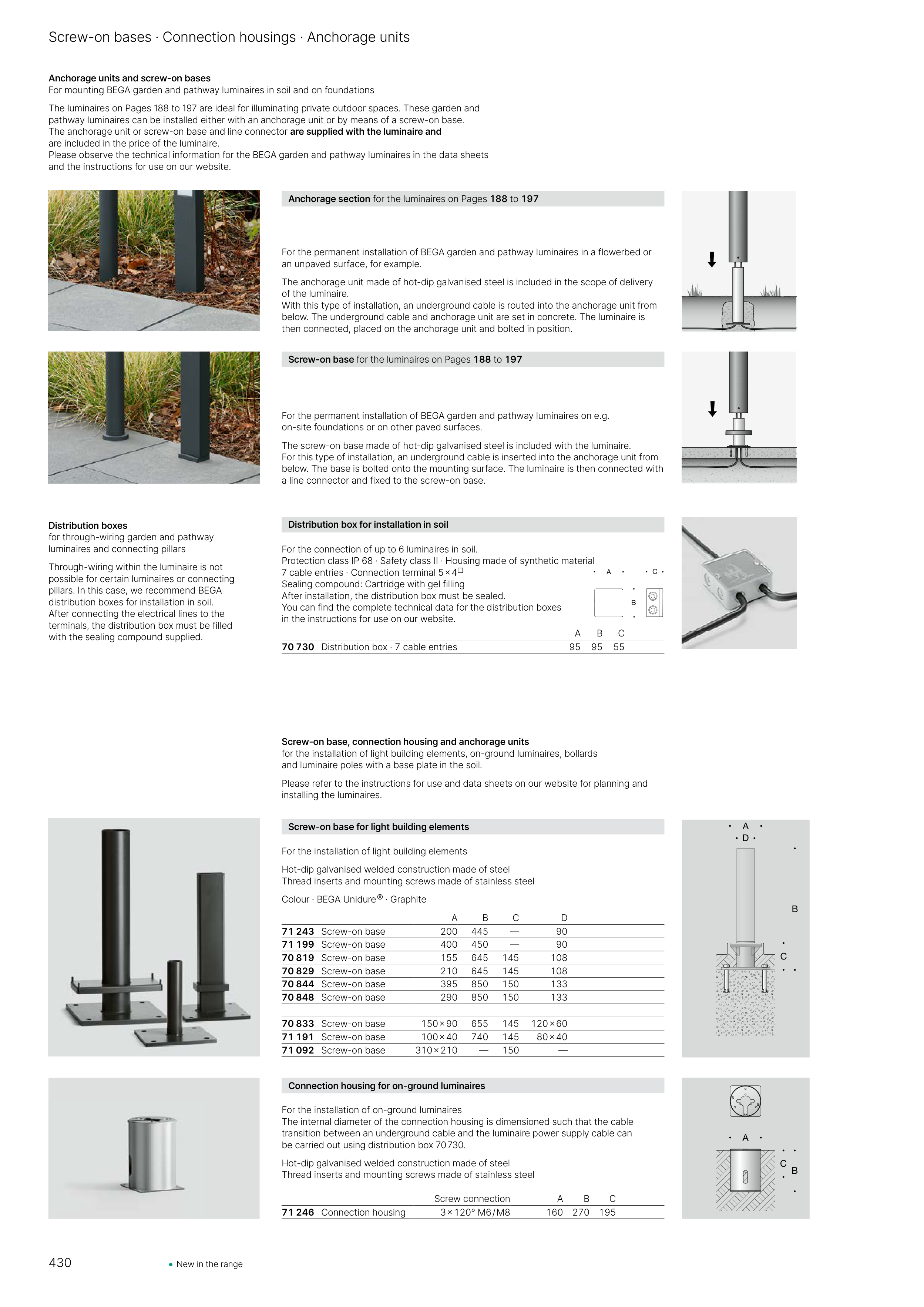

Connection housing for on-ground luminaires
For the installation of on-ground luminaires
The internal diameter of the connection housing is dimensioned such that the cable
transition between an underground cable and the luminaire power supply cable can
be carried out using distribution box 70 730.
Hot-dip galvanised welded construction made of steel
Thread inserts and mounting screws made of stainless steel
Screw connection
A
B
C
71 246 Connection housing
3 × 120° M6 / M8
160
270
195
Screw-on base for light building elements
For the installation of light building elements
Hot-dip galvanised welded construction made of steel
Thread inserts and mounting screws made of stainless steel
Colour · BEGA Unidure ® · Graphite
A
B
C
D
71 243 Screw-on base
200
445
—
90
71 199 Screw-on base
400
450
—
90
70 819 Screw-on base
155
645
145
108
70 829 Screw-on base
210
645
145
108
70 844 Screw-on base
395
850
150
133
70 848 Screw-on base
290
850
150
133
70 833 Screw-on base
150 × 90
655
145
120 × 60
71 191 Screw-on base
100 × 40
740
145
80 × 40
71 092 Screw-on base
310 × 210
—
150
—
Screw-on base, connection housing and anchorage units
for the installation of light building elements, on-ground luminaires, bollards
and luminaire poles with a base plate in the soil.
Please refer to the instructions for use and data sheets on our website for planning and
installing the luminaires.
Screw-on bases · Connection housings · Anchorage units
• New in the range
Distribution box for installation in soil
For the connection of up to 6 luminaires in soil.
Protection class IP 68 · Safety class II · Housing made of synthetic material
7 cable entries · Connection terminal 5 × 4□
Sealing compound: Cartridge with gel filling
After installation, the distribution box must be sealed.
You can find the complete technical data for the distribution boxes
in the instructions for use on our website.
A
B
C
70 730 Distribution box · 7 cable entries
95
95
55
Anchorage section for the luminaires on Pages 188 to 197
For the permanent installation of BEGA garden and pathway luminaires in a flowerbed or
an unpaved surface, for example.
The anchorage unit made of hot-dip galvanised steel is included in the scope of delivery
of the luminaire.
With this type of installation, an underground cable is routed into the anchorage unit from
below. The underground cable and anchorage unit are set in concrete. The luminaire is
then connected, placed on the anchorage unit and bolted in position.
Screw-on base for the luminaires on Pages 188 to 197
For the permanent installation of BEGA garden and pathway luminaires on e.g.
on-site foundations or on other paved surfaces.
The screw-on base made of hot-dip galvanised steel is included with the luminaire.
For this type of installation, an underground cable is inserted into the anchorage unit from
below. The base is bolted onto the mounting surface. The luminaire is then connected with
a line connector and fixed to the screw-on base.
Anchorage units and screw-on bases
For mounting BEGA garden and pathway luminaires in soil and on foundations
The luminaires on Pages 188 to 197 are ideal for illuminating private outdoor spaces. These garden and
pathway luminaires can be installed either with an anchorage unit or by means of a screw-on base.
The anchorage unit or screw-on base and line connector are supplied with the luminaire and
are included in the price of the luminaire.
Please observe the technical information for the BEGA garden and pathway luminaires in the data sheets
and the instructions for use on our website.
Distribution boxes
for through-wiring garden and pathway
luminaires and connecting pillars
Through-wiring within the luminaire is not
possible for certain luminaires or connecting
pillars. In this case, we recommend BEGA
distribution boxes for installation in soil.
After connecting the electrical lines to the
terminals, the distribution box must be filled
with the sealing compound supplied.
430
