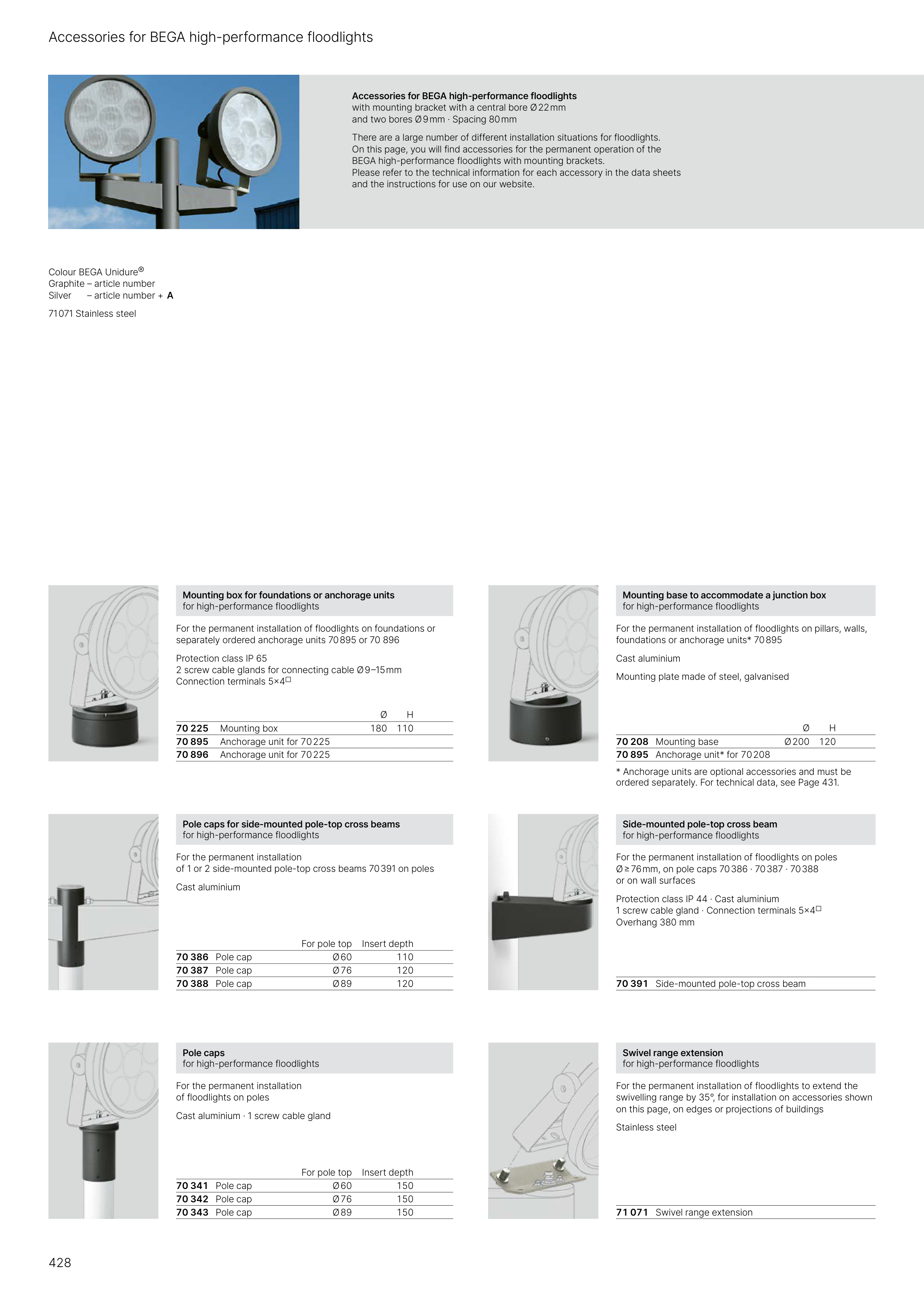

Accessories for BEGA high-performance floodlights
Colour BEGA Unidure®
Graphite – article number
Silver
– article number + A
71 071 Stainless steel
Mounting box for foundations or anchorage units
for high-performance floodlights
For the permanent installation of floodlights on foundations or
separately ordered anchorage units 70 895 or 70 896
Protection class IP 65
2 screw cable glands for connecting cable Ø 9–15 mm
Connection terminals 5×4□
Ø
H
70 225
Mounting box
180
110
70 895
Anchorage unit for 70 225
70 896
Anchorage unit for 70 225
Mounting base to accommodate a junction box
for high-performance floodlights
For the permanent installation of floodlights on pillars, walls,
foundations or anchorage units* 70 895
Cast aluminium
Mounting plate made of steel, galvanised
Ø
H
70 208 Mounting base
Ø 200
120
70 895 Anchorage unit* for 70 208
Swivel range extension
for high-performance floodlights
For the permanent installation of floodlights to extend the
swivelling range by 35°, for installation on accessories shown
on this page, on edges or projections of buildings
Stainless steel
71 071 Swivel range extension
Pole caps
for high-performance floodlights
For the permanent installation
of floodlights on poles
Cast aluminium · 1 screw cable gland
For pole top
Insert depth
70 341 Pole cap
Ø 60
150
70 342 Pole cap
Ø 76
150
70 343 Pole cap
Ø 89
150
Pole caps for side-mounted pole-top cross beams
for high-performance floodlights
For the permanent installation
of 1 or 2 side-mounted pole-top cross beams 70 391 on poles
Cast aluminium
For pole top
Insert depth
70 386 Pole cap
Ø 60
110
70 387 Pole cap
Ø 76
120
70 388 Pole cap
Ø 89
120
Side-mounted pole-top cross beam
for high-performance floodlights
For the permanent installation of floodlights on poles
Ø ≥ 76 mm, on pole caps 70 386 · 70 387 · 70 388
or on wall surfaces
Protection class IP 44 · Cast aluminium
1 screw cable gland · Connection terminals 5×4□
Overhang 380 mm
70 391 Side-mounted pole-top cross beam
Accessories for BEGA high-performance floodlights
with mounting bracket with a central bore Ø 22 mm
and two bores Ø 9 mm · Spacing 80 mm
There are a large number of different installation situations for floodlights.
On this page, you will find accessories for the permanent operation of the
BEGA high-performance floodlights with mounting brackets.
Please refer to the technical information for each accessory in the data sheets
and the instructions for use on our website.
* Anchorage units are optional accessories and must be
ordered separately. For technical data, see Page 431.
