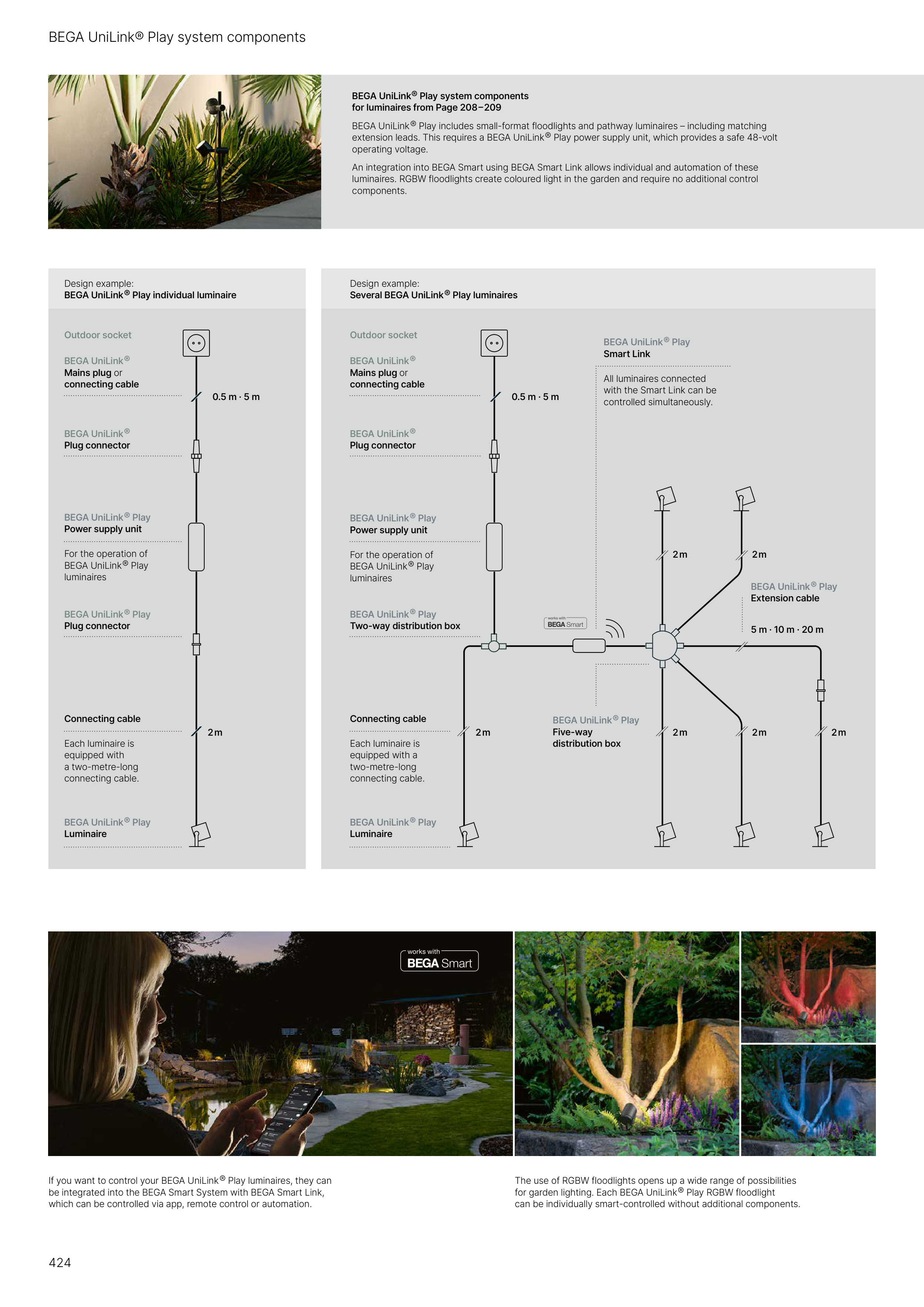

BEGA UniLink® Play system components
for luminaires from Page 208 – 209
BEGA UniLink ® Play includes small-format floodlights and pathway luminaires – including matching
extension leads. This requires a BEGA UniLink ® Play power supply unit, which provides a safe 48-volt
operating voltage.
An integration into BEGA Smart using BEGA Smart Link allows individual and automation of these
luminaires. RGBW floodlights create coloured light in the garden and require no additional control
components.
The use of RGBW floodlights opens up a wide range of possibilities
for garden lighting. Each BEGA UniLink ® Play RGBW floodlight
can be individually smart-controlled without additional components.
If you want to control your BEGA UniLink ® Play luminaires, they can
be integrated into the BEGA Smart System with BEGA Smart Link,
which can be controlled via app, remote control or automation.
BEGA UniLink® Play system components
BEGA UniLink ® Play
Luminaire
BEGA UniLink ® Play
Luminaire
BEGA UniLink ® Play
Smart Link
All luminaires connected
with the Smart Link can be
controlled simultaneously.
Connecting cable
Each luminaire is
equipped with
a two-metre-long
connecting cable.
Connecting cable
Each luminaire is
equipped with a
two-metre-long
connecting cable.
BEGA UniLink ® Play
Power supply unit
For the operation of
BEGA UniLink ® Play
luminaires
BEGA UniLink ® Play
Power supply unit
For the operation of
BEGA UniLink ® Play
luminaires
BEGA UniLink ® Play
Plug connector
BEGA UniLink ® Play
Two-way distribution box
BEGA UniLink ® Play
Five-way
distribution box
Design example:
BEGA UniLink ® Play individual luminaire
Design example:
Several BEGA UniLink ® Play luminaires
BEGA UniLink ® Play
Extension cable
Outdoor socket
Outdoor socket
BEGA UniLink ®
Mains plug or
connecting cable
BEGA UniLink ®
Mains plug or
connecting cable
BEGA UniLink ®
Plug connector
BEGA UniLink ®
Plug connector
2 m
2 m
2 m
2 m
2 m
2 m
2 m
5 m · 10 m · 20 m
0.5 m · 5 m
0.5 m · 5 m
