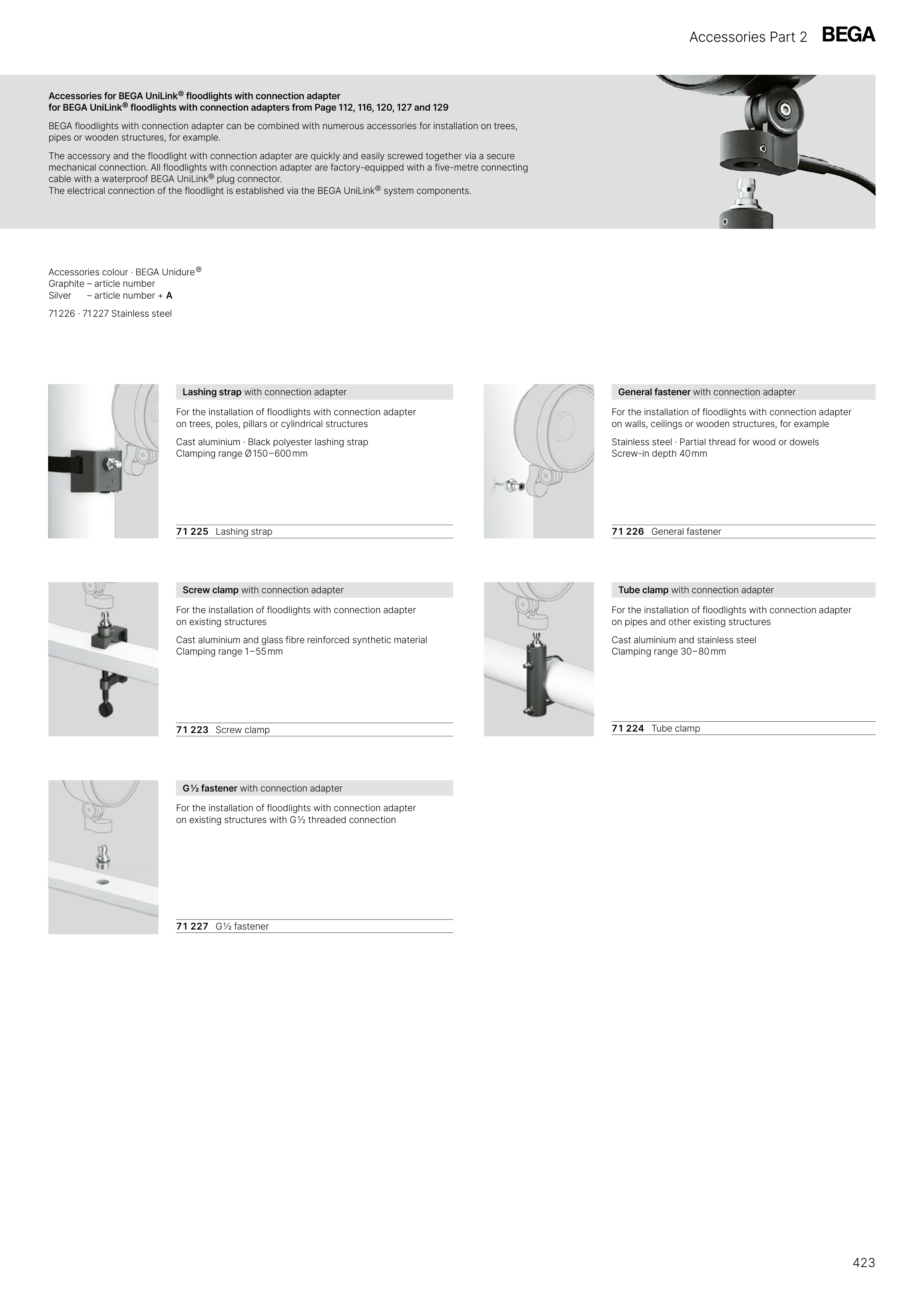

Accessories Part 2
G 1/2 fastener with connection adapter
For the installation of floodlights with connection adapter
on existing structures with G 1/2 threaded connection
71 227 G 1/2 fastener
General fastener with connection adapter
For the installation of floodlights with connection adapter
on walls, ceilings or wooden structures, for example
Stainless steel · Partial thread for wood or dowels
Screw-in depth 40 mm
71 226 General fastener
Tube clamp with connection adapter
For the installation of floodlights with connection adapter
on pipes and other existing structures
Cast aluminium and stainless steel
Clamping range 30 – 80 mm
71 224 Tube clamp
Screw clamp with connection adapter
For the installation of floodlights with connection adapter
on existing structures
Cast aluminium and glass fibre reinforced synthetic material
Clamping range 1 – 55 mm
71 223 Screw clamp
Lashing strap with connection adapter
For the installation of floodlights with connection adapter
on trees, poles, pillars or cylindrical structures
Cast aluminium · Black polyester lashing strap
Clamping range Ø 150 – 600 mm
71 225 Lashing strap
Accessories for BEGA UniLink® floodlights with connection adapter
for BEGA UniLink® floodlights with connection adapters from Page 112, 116, 120, 127 and 129
BEGA floodlights with connection adapter can be combined with numerous accessories for installation on trees,
pipes or wooden structures, for example.
The accessory and the floodlight with connection adapter are quickly and easily screwed together via a secure
mechanical connection. All floodlights with connection adapter are factory-equipped with a five-metre connecting
cable with a waterproof BEGA UniLink® plug connector.
The electrical connection of the floodlight is established via the BEGA UniLink® system components.
Accessories colour · BEGA Unidure ®
Graphite – article number
Silver
– article number + A
71 226 · 71 227 Stainless steel
423
