55
215
50
A
B
C
76
134
73
254
247
90
212
108
62
300
105
70
98
18
56
Magnetic power supply units· 24 V DC · 5 – 35 W
Safety transformers in accordance with EN 61558/VDE 0570
Parts 2 – 6
Input voltage: 230 Vy
50 - 60 Hz
Output voltage: 24 V DC
Protection class IP 65 · Safety class II
Version encapsulated in cast resin
Output
70 564
5 – 15 W
70 465
10 – 25 W
70 565
20 – 35 W
Magnetic power supply units· 24 V DC · 30 – 150 W
Safety transformers in accordance with EN 61558/VDE 0570
Parts 2 – 6
Input voltage: 230 Vy
50 - 60 Hz
Output voltage: 24 V DC
Protection class IP 65 · Safety class II
Version encapsulated in cast resin
Output
A
B
C
70 566
30 – 50 W
155
130
90
70 567
40 – 75 W
155
130
90
70 169
70 – 150 W
185
175 110
Electronic power supply unit · 24 V DC · 0 – 70 W
Input voltage: 220 – 240 V 0 / 50 – 60 Hz
Output voltage: 24 V DC
Protection class IP 65
Glass-fibre reinforced synthetic material
Safety power supply unit in compliance with
EN 61347-2-13
Output
71 134
0 – 70 W
BEGA power supply units for LED luminaires
Some LED luminaires in our range are supplied without a power supply unit. The corresponding power supply units
for these luminaires can be found as accessories on this page.
Several luminaires can be connected to BEGA power supply units with 24 V DC and 48 V DC output voltage.
Please note the maximum output of the power supply unit and the maximum cable length, due to the drop in voltage.
You can find the complete technical data for the power supply units in the instructions for use on our website.
The installation and operation of this power supply unit are subject to national safety regulations.

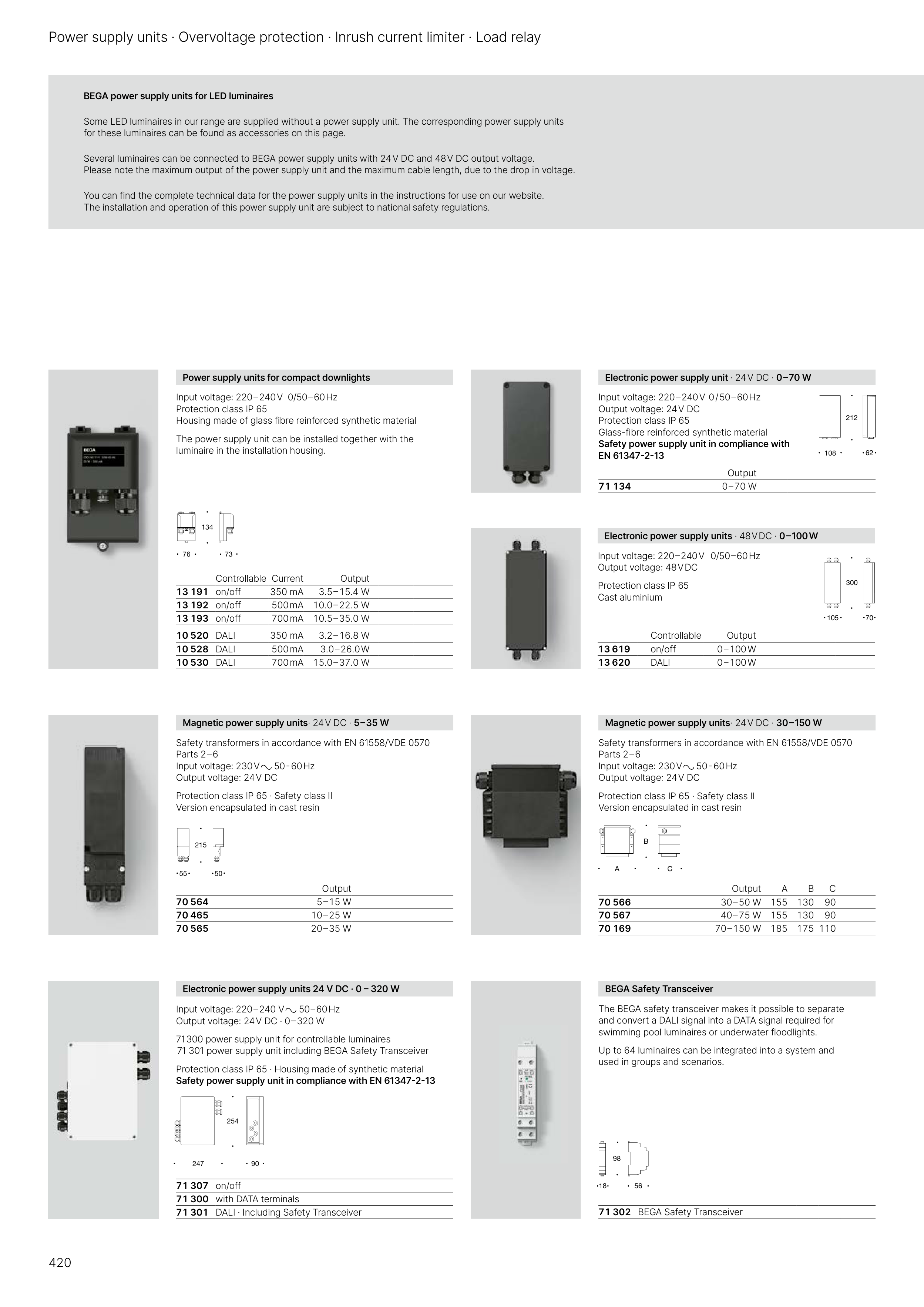

Power supply units · Overvoltage protection · Inrush current limiter · Load relay
Power supply units for compact downlights
Input voltage: 220 – 240 V 0/50 – 60 Hz
Protection class IP 65
Housing made of glass fibre reinforced synthetic material
The power supply unit can be installed together with the
luminaire in the installation housing.
Controllable Current
Output
13 191 on/off
350 mA
3.5 – 15.4 W
13 192 on/off
500 mA
10.0 – 22.5 W
13 193 on/off
700 mA
10.5 – 35.0 W
10 520 DALI
350 mA
3.2 – 16.8 W
10 528 DALI
500 mA
3.0 – 26.0 W
10 530 DALI
700 mA
15.0 – 37.0 W
Electronic power supply units 24 V DC · 0 – 320 W
Input voltage: 220 – 240 Vy
50 – 60 Hz
Output voltage: 24 V DC · 0 – 320 W
71 300 power supply unit for controllable luminaires
71 301 power supply unit including BEGA Safety Transceiver
Protection class IP 65 · Housing made of synthetic material
Safety power supply unit in compliance with EN 61347-2-13
71 307 on/off
71 300 with DATA terminals
71 301 DALI · Including Safety Transceiver
BEGA Safety Transceiver
The BEGA safety transceiver makes it possible to separate
and convert a DALI signal into a DATA signal required for
swimming pool luminaires or underwater floodlights.
Up to 64 luminaires can be integrated into a system and
used in groups and scenarios.
71 302 BEGA Safety Transceiver
Electronic power supply units · 48 V DC · 0 – 100 W
Input voltage: 220 – 240 V 0/50 – 60 Hz
Output voltage: 48 V DC
Protection class IP 65
Cast aluminium
Controllable
Output
13 619
on/off
0 – 100 W
13 620
DALI
0 – 100 W
420
