A
C
B

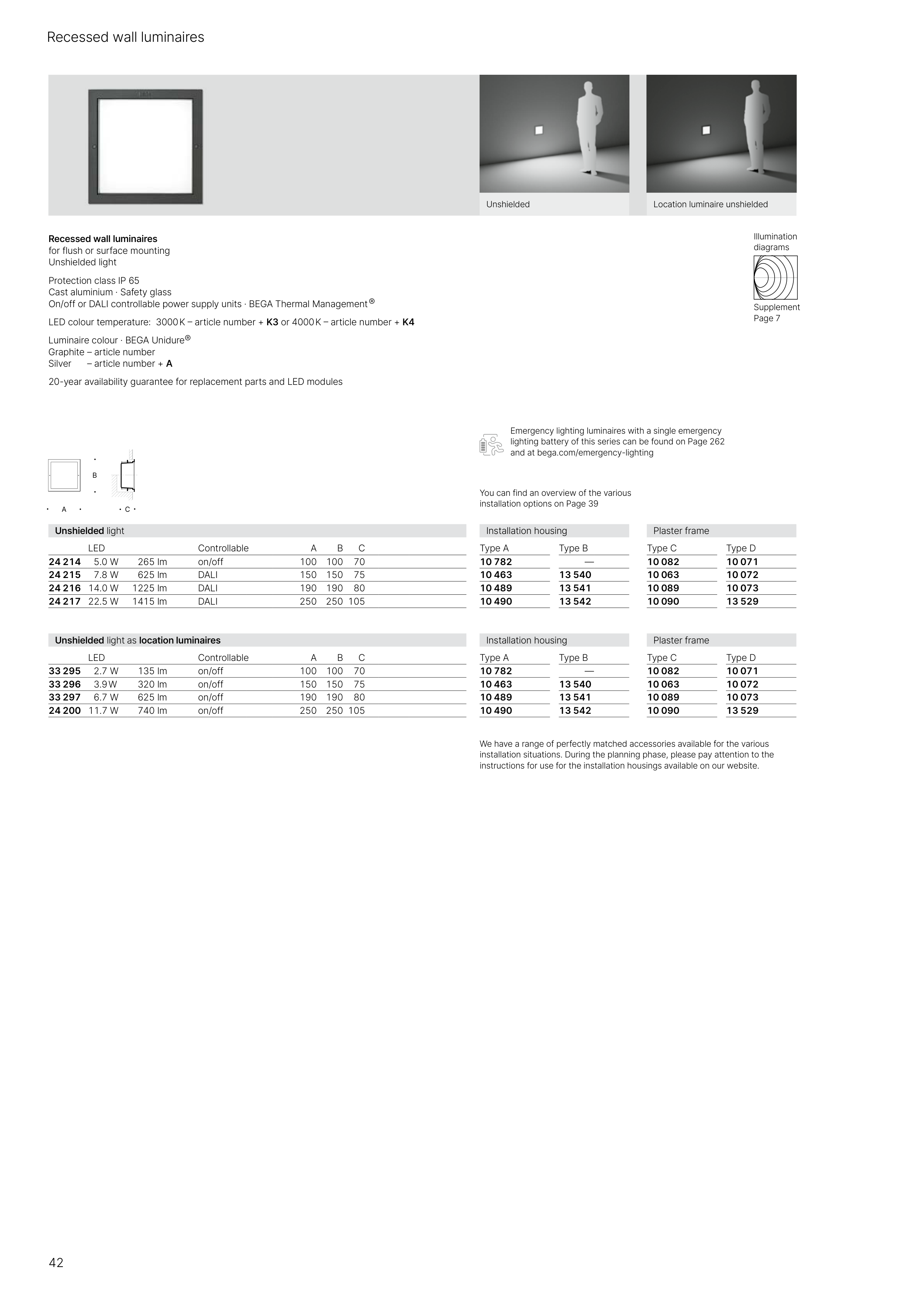

Recessed wall luminaires
Unshielded light as location luminaires
Installation housing
Plaster frame
LED
Controllable
A
B
C
Type A
Type B
Type C
Type D
33 295 2.7 W
135 lm
on/off
100
100
70
10 782
—
10 082
10 071
33 296 3.9 W
320 lm
on/off
150
150
75
10 463
13 540
10 063
10 072
33 297 6.7 W
625 lm
on/off
190
190
80
10 489
13 541
10 089
10 073
24 200 11.7 W
740 lm
on/off
250
250 105
10 490
13 542
10 090
13 529
Unshielded light
Installation housing
Plaster frame
LED
Controllable
A
B
C
Type A
Type B
Type C
Type D
24 214 5.0 W
265 lm
on/off
100
100
70
10 782
—
10 082
10 071
24 215 7.8 W
625 lm
DALI
150
150
75
10 463
13 540
10 063
10 072
24 216 14.0 W
1225 lm
DALI
190
190
80
10 489
13 541
10 089
10 073
24 217 22.5 W
1415 lm
DALI
250
250 105
10 490
13 542
10 090
13 529
Unshielded
Location luminaire unshielded
Recessed wall luminaires
for flush or surface mounting
Unshielded light
Protection class IP 65
Cast aluminium · Safety glass
On/off or DALI controllable power supply units · BEGA Thermal Management ®
LED colour temperature: 3000 K – article number + K3 or 4000 K – article number + K4
Luminaire colour · BEGA Unidure®
Graphite – article number
Silver
– article number + A
20-year availability guarantee for replacement parts and LED modules
We have a range of perfectly matched accessories available for the various
installation situations. During the planning phase, please pay attention to the
instructions for use for the installation housings available on our website.
You can find an overview of the various
installation options on Page 39
Emergency lighting luminaires with a single emergency
lighting battery of this series can be found on Page 262
and at bega.com/emergency-lighting
Supplement
Page 7
Illumination
diagrams
42
