71 150
71 145
BugSaver
®
60
33
15
45
250
60

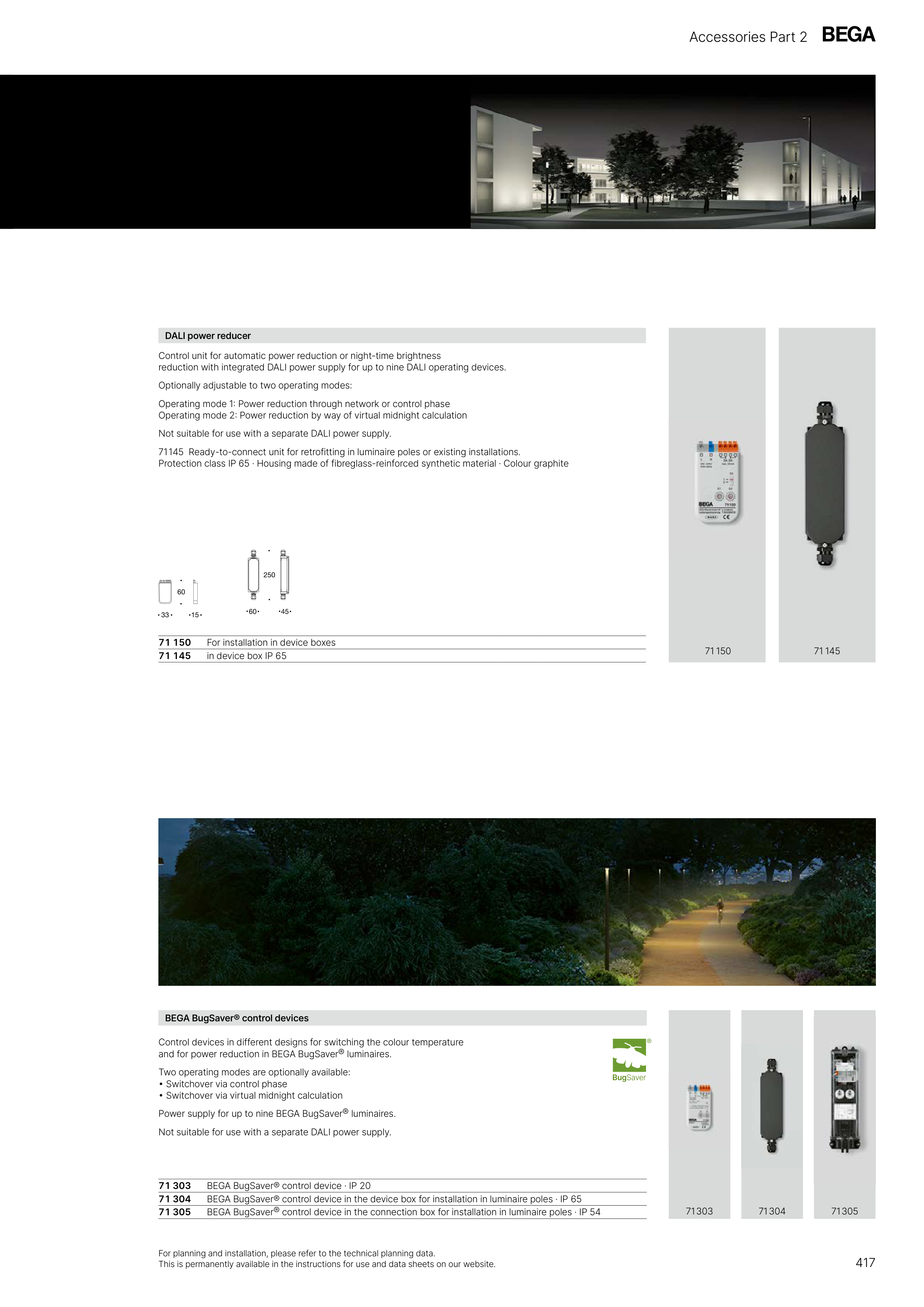

DALI power reducer
Control unit for automatic power reduction or night-time brightness
reduction with integrated DALI power supply for up to nine DALI operating devices.
Optionally adjustable to two operating modes:
Operating mode 1: Power reduction through network or control phase
Operating mode 2: Power reduction by way of virtual midnight calculation
Not suitable for use with a separate DALI power supply.
71 145 Ready-to-connect unit for retrofitting in luminaire poles or existing installations.
Protection class IP 65 · Housing made of fibreglass-reinforced synthetic material · Colour graphite
71 150
For installation in device boxes
71 145
in device box IP 65
71 303
71 304
71 305
Control devices in different designs for switching the colour temperature
and for power reduction in BEGA BugSaver® luminaires.
Two operating modes are optionally available:
• Switchover via control phase
• Switchover via virtual midnight calculation
Power supply for up to nine BEGA BugSaver® luminaires.
Not suitable for use with a separate DALI power supply.
71 303
BEGA BugSaver® control device · IP 20
71 304
BEGA BugSaver® control device in the device box for installation in luminaire poles · IP 65
71 305
BEGA BugSaver® control device in the connection box for installation in luminaire poles · IP 54
BEGA BugSaver® control devices
Accessories Part 2
For planning and installation, please refer to the technical planning data.
This is permanently available in the instructions for use and data sheets on our website.
417
