Please refer to the technical planning data for planning and installation. The current values for LED service life, luminous flux,
maximum ambient temperature and information about the use of BEGA Thermal Management ® are readily available in the
instructions for use and data sheets on our website.

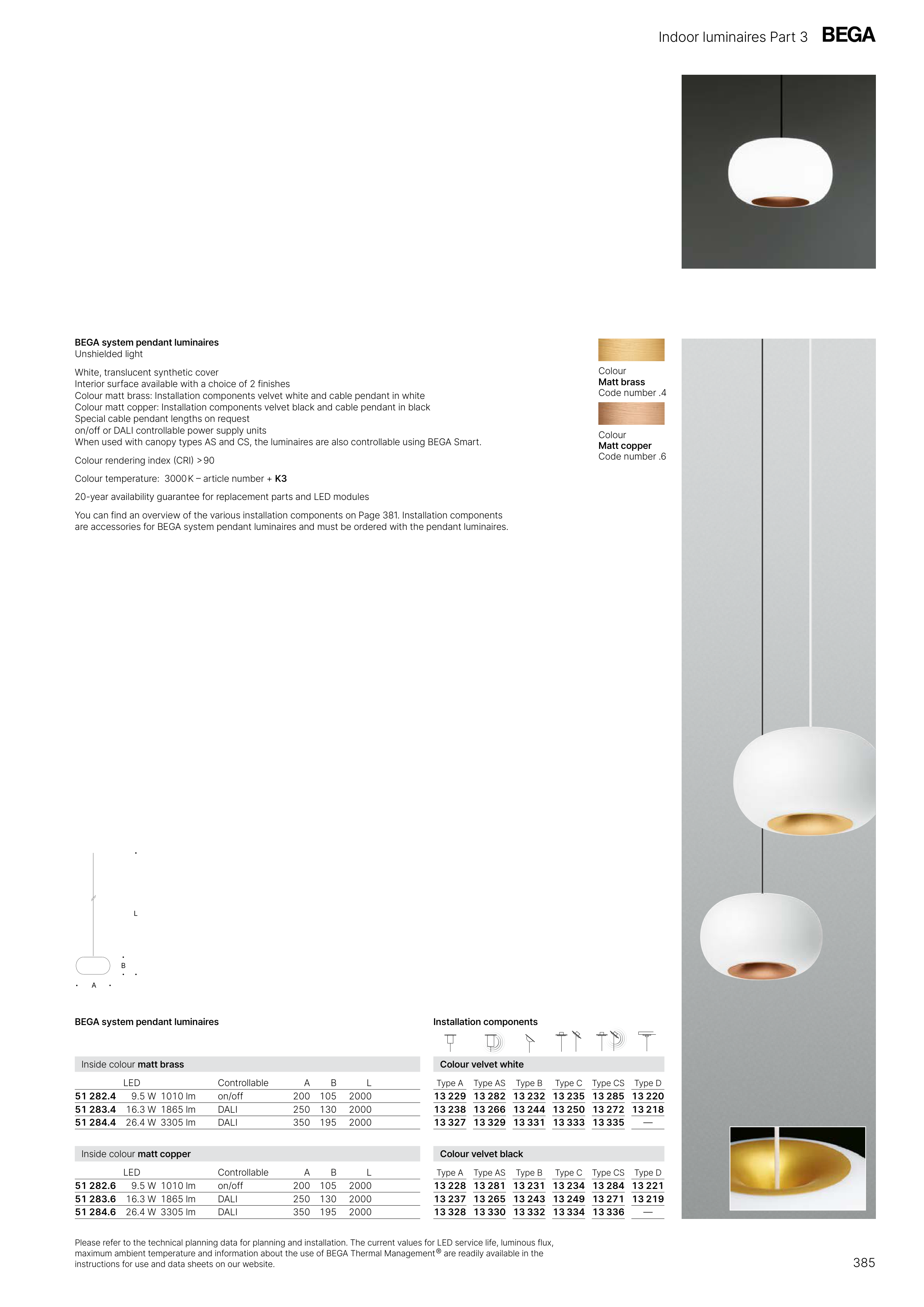

Indoor luminaires Part 3
BEGA system pendant luminaires
Installation components
Inside colour matt brass
Colour velvet white
LED
Controllable
A
B
L
Type A
Type AS
Type B
Type C
Type CS
Type D
51 282.4
9.5 W 1010 lm
on/off
200
105
2000
13 229 13 282 13 232 13 235 13 285 13 220
51 283.4
16.3 W 1865 lm
DALI
250
130
2000
13 238 13 266 13 244 13 250 13 272 13 218
51 284.4
26.4 W 3305 lm
DALI
350
195
2000
13 327 13 329 13 331 13 333 13 335
—
Inside colour matt copper
Colour velvet black
LED
Controllable
A
B
L
Type A
Type AS
Type B
Type C
Type CS
Type D
51 282.6
9.5 W 1010 lm
on/off
200
105
2000
13 228 13 281 13 231 13 234 13 284 13 221
51 283.6
16.3 W 1865 lm
DALI
250
130
2000
13 237 13 265 13 243 13 249 13 271 13 219
51 284.6
26.4 W 3305 lm
DALI
350
195
2000
13 328 13 330 13 332 13 334 13 336
—
BEGA system pendant luminaires
Unshielded light
White, translucent synthetic cover
Interior surface available with a choice of 2 finishes
Colour matt brass: Installation components velvet white and cable pendant in white
Colour matt copper: Installation components velvet black and cable pendant in black
Special cable pendant lengths on request
on/off or DALI controllable power supply units
When used with canopy types AS and CS, the luminaires are also controllable using BEGA Smart.
Colour rendering index (CRI) > 90
Colour temperature: 3000 K – article number + K3
20-year availability guarantee for replacement parts and LED modules
You can find an overview of the various installation components on Page 381. Installation components
are accessories for BEGA system pendant luminaires and must be ordered with the pendant luminaires.
Colour
Matt brass
Code number .4
Colour
Matt copper
Code number .6
385
